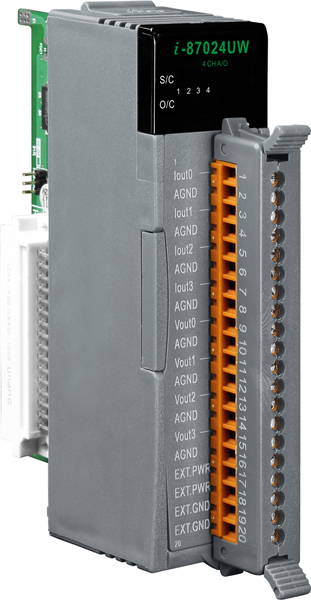

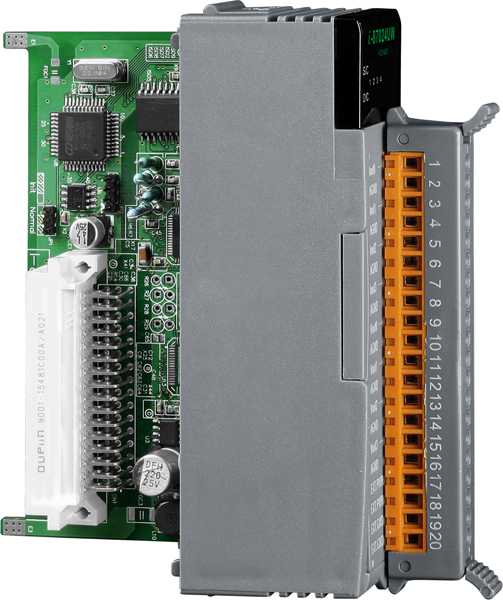

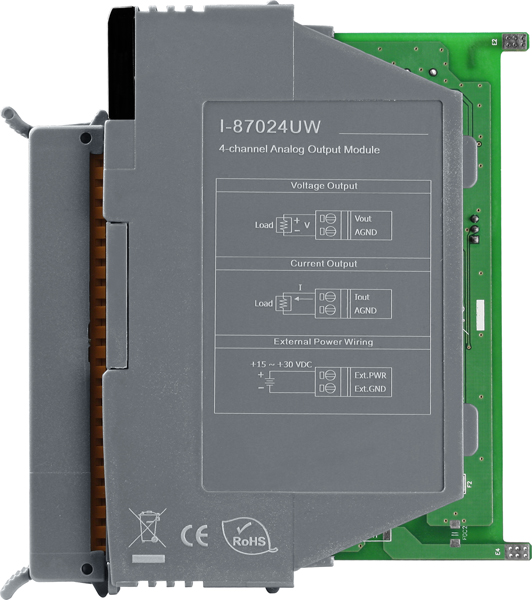

4-channel 16-bit Isolated Source Type Voltage or Current Output Module

I-87024UW

4-channel 16-bit Isolated Source Type Voltage or Current Output Module

  Price:  $629.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

References & Support


Features

The I-87024UW is a source type analog output module that includes 4 single-ended analog output channels, and provides options for setting power-on and safe value. It also provides a programmable output range analog outputs(0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, +4 ~ +20 mA or 0 ~ +20 mA), and each analog output can be configured for an individual range and provides an RF immunity level matching that defined by IEC 61000-4-3. The module also features per-channel open wire detection for +4 ~ +20 mA output, together with 4 KV ESD protection as well as 2500 VDC intra-module isolation.

  • I-87024UW
    • 4-channel Voltage or Current Output
    • Individual Channel Confi guration
    • 2500 VDC Intra-module Isolation
  • I-87024CW
    • 1 kV Channel-to-Channel Isolation
  • Open Wire Detection for Current Output
  • RF Immunity
  • Short Circuit Protection
  • Power-on Value
  • Safe Value
  • 4 kV ESD Protection
  • Wide Operating Temperature Range: -25 ~ +75°C

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

Analog Output

Channels

4

Current Output Wiring

Source

Range

0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC,
0 ~ +20 mA, +4 ~ +20 mA

Resolution

16-bit

Accuracy

+/- 0.02% of FSR

Zero Drift

+/- 0.2 μV/°C

Span Drift

+/- 25 ppm/°C

DA Output Respones Time

10 ms per channel

Programmable Output Slope

Voltage

0.0625 ~ 512 V/Second

Current

0.125 ~ 1024 mA/Second

Current Output Capacity

1000 Ω

Channel-to-Channel Isolation

Yes, 1 kV

Open Wire Detection

Yes, +4 ~ +20 mA

Short Circuit Protection

Yes

Power-on Value

Yes

Safe Value

Yes

External Power Requirements

Reverse Polarity Protection

Yes

Powered from Terminal Block

Yes, 15 ~ 30 VDC

Consumption

4.0 W

System Specifications

Communication

Interface

RS-485

Format

N, 8, 1

Baud Rate

1200 ~ 115200 bps

Protocol

DCON

Dual Watchdog

Yes, Module (1.6 Seconds), Communication (Programmable)

LED Indicator/Display

System LED Indicator

1 LED as Power/Communication Indicator

I/O LED Indicator

1 LED as Power/Communication Indicator

Isolation

Intra-Module Isolation, Field-to-Logic

2500 VDC

EMS Protection

ESD (IEC 61000-4-2)

4 kV Contact for Each Terminal
4 kV Contact for Each Terminal

RS Immunity (IEC 61000-4-3)

3 V/m, 80 MHz ~ 1 GHz

Power

Power Consumption

0.9 W Max.

Mechanical

Dimensions (W x L x H)

31 mm x 81 mm x 114 mm

Environment

Operating Temperature

-25 ~ +75°C

Storage Temperature

-40 ~ +85°C

Humidity

10 ~ 95% RH, Non-condensing
