High-speed 4-axis Motion Control Module with FRnet Master, supports operating temperatures from -20 ~ +75°C

I-8094-G

High-speed 4-axis Motion Control Module with FRnet Master, supports operating temperatures from -20 ~ +75°C

  Price:  $1,099.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

The I-8094 is a 4-axis stepping/pulse-type servo motor control module that can be used on any of the ICP DAS I-8000 and PAC series controllers, and is suitable for general-purpose motion applications. In addition to its wide speed range, this intelligent motion controller also has a variety of motion control functions built in, such as 2/3-axis linear interpolation, 2-axis circular interpolation, T/S-curve acceleration/deceleration, a range of synchronous actions, automatic homing, and others.

A major advantage is that the majority of the I-8094 motion control functions are performed by the high-performance motion ASIC with little load on the processor. While driving the motors, the motion status, and the status of other I/O channels on the I-8000 or PAC modules, can still be monitored. As the CPU loading requirements of the I-8094 is minimal, one or more motion modules may be used with a single I-8000 or PAC controller. ICP DAS also provides a wide range of functions and examples that can be used to reduce the need for additional programming, making it a highly cost-effective solution for motion control application developers.

  • Independent 4-axis motion control
  • Support for hand wheel and jog functions
  • 2/3-axis linear / 2-axis circular interpolation function
  • Continuous interpolation function
  • Programmable T/S-curve acceleration and deceleration
  • A maximum pulse output rate of 4 Mpps for each axis
  • Pulse Output Types: CW/CCW or PULSE/DIR
  • 32-bit encoder counter for each axis
  • Encoder Pulse Input Types: A/B Phase or Up/Down
  • Programmable automatic homing for each axis
  • Position comparison management and software limits
  • A wide range of synchronous actions (event-triggered actions)

I-8094 features I-8094 features I-8094 features
2 or 3-Axis Linear Interpolation

2-Axis Circular Interpolation

Continuous interpolation


I-8094 features I-8094 features

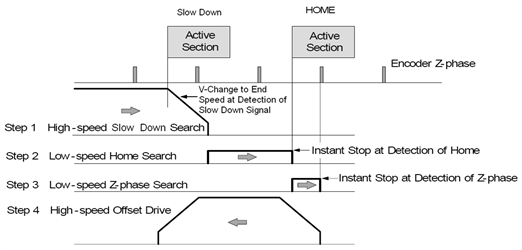

4 Steps Automatic Home Searching

High Speed Position Compare

Specifications

Number of Axes 4
Maximum Pulse Output Rate 4 MHz
Command Type Pulse Command
Resolution 32-bit
Pulse Output Mode CW/CCW, PULSE/DIR
Operation Mode Semi-closed Loop
Linear Interpolation Any 2 to 3 of 4 axes
Circular Interpolation Any 2 axes
Speed Curve Profile T/S-curve
Motion Relative I/O Home, LMT+/-, NHOME, EMG, INP, ALM, SVON
Synchronous Action 10 activation factors and 14 actions
Ring Counter Mode 32-bit
Position Control Mode Incremental mode and Absolute mode
Position Compare Trigger 10 KHz
Encoder Interface A/B pulse, Up/Down
Encoder Counter 32-bit
Encoder Rate 4 MHz
Digital Input Channels -
Digital Output Channels -
I/O Isolation (with DN-8468) 2500 Vrms optical isolation
Connector 68-pin SCSI-II connector
Power Consumption +5 V @ 500 mA
Environmental
Operating Temperature -20 ~ +75°C
Storage Temperature -30 ~ +85°C
Ambient Relative Humidity 5 ~ 90% RH, non-condensing
