USB to CAN Converter with free software setup utility.  Supports Operating Temperatures between -25 to  75C.  Has drivers for Windows 98/ME/2000/XP/Vista/Win 7/Win 10 and Linux

I-7565

USB to CAN Converter with free software setup utility. Supports Operating Temperatures between -25 to 75C. Has drivers for Windows 98/ME/2000/XP/Vista/Win 7/Win 10 and Linux

  Price:  $399.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

i-7565-ap

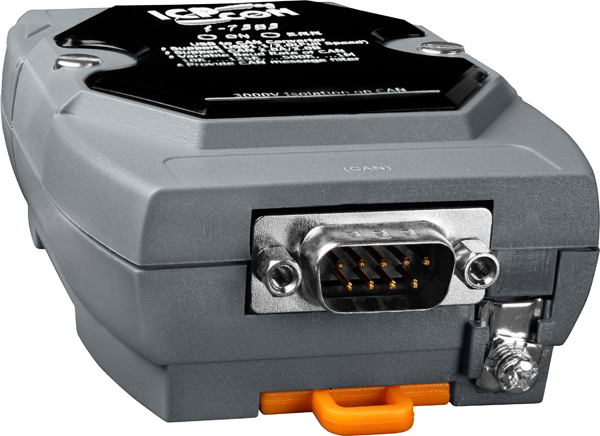

I-7565 is a cost-efficient device for coupling the CAN-bus to the PC using the standard USB interface. The I-7565 Utility tool can be used to configure the operation conditions between the CAN and USB port communications.

  • CAN (Controller Area Network)
    • Serial bus system suited to support intelligent industry device networks and build smart automatic control systems. The I-7565 is a cost-efficient device for coupling the CAN-bus to the PC using the standard USB interface. USB interfaces are now standard in PC's and are supported by the MS-Windows 98, Me, 2000 and XP operating systems.
    • I-7565 supports hot plug and play. The PC automatically loads the relevant device driver.
    • The following illustration shows the application architecture for I-7565 modules. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the I-7565 Converter.
    • This module let you to communicate with CAN devices easily from PC with USB interface.
  • 3000V isolation on CAN side
    • The CAN port of I-7565 has 3000V isolation.
    • This isolation can protect the local devices from the damage signal coming from CAN network.
  • Watchdog inside
    • The I-7530 Watchdog is a hardware reset circuit to monitor the I-7565’s operation status.
    • In harsh or noisy environments, many devices are disrupted by the external signals.
    • The circuitry in I-7565 allows it to work continuously despite the harsh environment.
  • Power and Error Indicator Display
    • The power indicator can help user to check whether the I-7565 is standby or transmitting/receiving messages.
    • The Error indicator is turned on when errors occur in the I-7565
  • Applications
    • Factory Automation
    • Building Automation
    • Home Automation
    • Control System
    • Monitor System
    • Vehicle Automation
      Applications
  • Features
    • RoHs Design
    • Fully compliant with USB 1.1/2.0(Full Speed)
    • Power over USB: no external power is required
    • 20 Mhz Microprocessor inside
    • 82C250 CAN transceiver
    • Built-in converter firmware
    • Transmission speeds up to 1M bps for CAN and 921.6K bps for USB
    • Software configurable CAN and USB Communication Parameters
    • Maximum transmission distances over 1000m (follow CAN specification)
    • Supports both CAN 2.0A and CAN 2.0B
    • Built-in jumper to select 120Ω terminal resister
    • Mounts easily on DIN-rail
    • Power, data flow and error indicators for CAN and USB
    • Has Watchdog inside
    • Windows 98/ME/2000/XP drivers supported
    • Linux drivers supported
    • Free DLL for VC++, VB, and BCB
  • I-7565 Utility
    • CAN bus Baud rate configuration
    • CAN acceptance filter configuration
    • CAN2.0A or 2.0B specific selection
    • Checksum and Error Response settings
    • Easy test to transmit/receive CAN messages

Specifications

Hardware

EEPROM

2 KB (for system information), 100,000 erase/write cycles

CAN Interface

Port Channels

1

Transceiver

82C250/TJA1042

Connector

9-pin male D-Sub (CAN_L, CAN_SHLD, CAN_H, N/A for others)

Baud Rate

10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 Mbps (allow user-defined CAN baud rate)

Isolation

10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 Mbps (allow user-defined CAN baud rate)

Terminator Resistor

Selectable 120 ? terminator resistor by jumper

Support Protocol

CAN 2.0A/2.0B

Receive Buffer

1000 data frames

UART Interface

Connector

USB Type B

Baud Rate

110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 bps

Compatibility

USB 1.1 and 2.0 standard

Receive Buffer

900 data frames

Power

Power Consumption

1.5W

LED

Round LED

ON LED: Power and Data Flow; ERR LED: Error

Mechanism

Installation

DIN-Rail

Dimensions

72mm x 112mm x 33mm (W x L x H)

Environment

Operating Temp.

-25? to 75?

Storage Temp.

-30? to 80?

Humidity

10~90% non-condensing
