CANbus Isolated Repeater. Supports operating temperatures between -25 to 75°C.

I-7531

CANbus Isolated Repeater. Supports operating temperatures between -25 to 75°C.

  Price:  $429.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

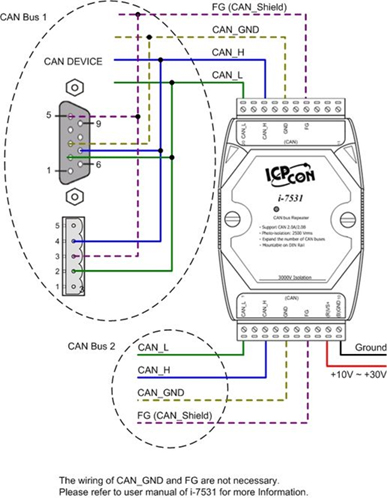

Application Architecture

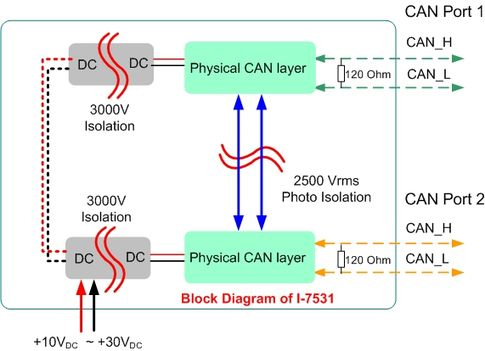

I-7531 Diagram

I-7531 is a CAN repeater used to establish a physical coupling of two or more segments of a CAN bus system. Users can implement tree or star topologies as well as long drop lines with I-7531. Connecting via I-7531, the division of a CAN system into several subsystems increases the maximum number of bus nodes. I-7531 is an optically isolated CAN repeater which provides 2500 Vrms of optical isolation. It allows you to separate and protect critical segments of the system from the rest of a CAN network. Its galvanic isolation isolates both CAN segments from each other as well as from the power supply. The CAN connection of I-7531 is through terminal blocks. A power supply of 10-30 VDC is required. I-7531 is housed in a rugged DIN-Rail mountable box, making it easy to install in an industrial cabinet. I-7531 can be used in CANopen, DeviceNet and generic ISO-11898 standard applications.

  • Applications
    • Control Systems
    • Building Automation
    • Factory Automation
    • Distributed Data Acquisition

Specifications

  • Supports CAN 2.0A / CAN 2.0B
  • Photo-coupler Isolation between 2 CAN ports: 2500V rms
  • Power Consumption: 2W max
  • DIN Rail Mountable
  • Removable Terminal Block.
  • CAN Termination Resistors are Integrated (can be disabled)
  • Power Supply is with 3KV Galvanic Isolation Between 2 CAN Ports
  • Power Supply: +10 ~ +30VDC
  • Operating Temperature: -25°C to +75°C
  • Humidity: 5~ 95%
  • Dimensions: 123 mm x 72 mm x 33 mm
