Isolated RS 232 to 4 RS 485 Active Hub. Supports operating temperatures between -25 to 75°C.

I-7520U4

Isolated RS 232 to 4 RS 485 Active Hub. Supports operating temperatures between -25 to 75°C.

  Price:  $169.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

i7520uPINRS-485 Active Hub

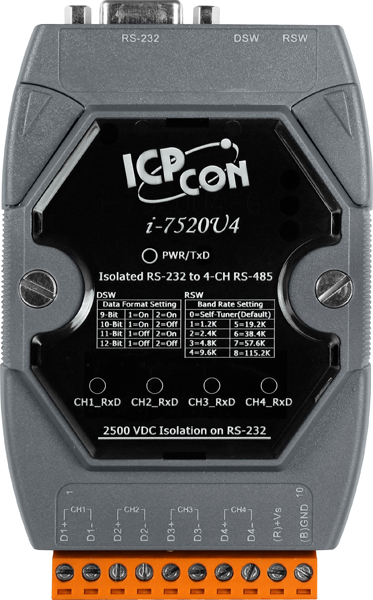

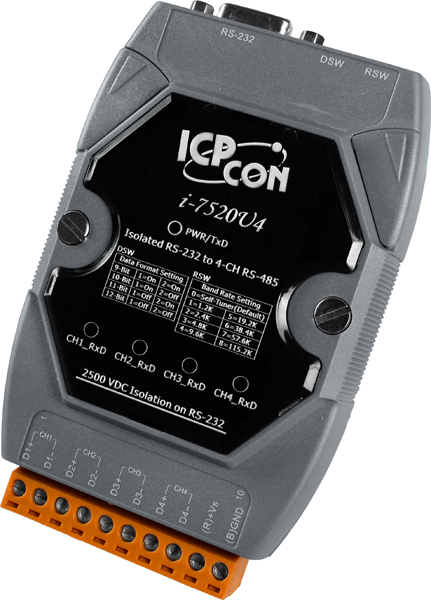

The I-7520U4 is isolated RS-232 to 4-ch RS-485 active star wiring hub, it has 4 independent RS-485 output channels and one RS-232 input channel. Each output channel is equipped with an individual driver. The data from a master to the input channel will simultaneously be forwarded to all the four output channels.

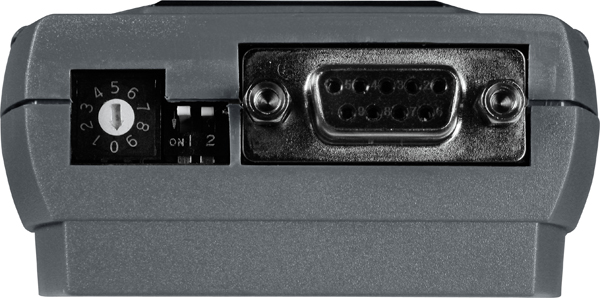

Baud Rate Setting
The I-7520U4 provides 2 modes of baud rate setting, one is Self-Tuner mode and the other is fixed baud rate mode. The Self-Tuner mode can support Multiple Baud Rate and Multiple Data Format. The Self-Tuner design is exactly the same as I-7520 series.

The Fixed baud rate mode offers a better quality for data transmission over long or lossy lines or electrically noisy environments.

RS-485 Short-Circuit
The Short-circuit protection can automatically shut off the breakdown channel, this kind of design can suffice to protect the communication system. When a connected RS-485 equipment breaks down, the breakdown channel will be isolated to ensure that other equipments work normally.

Termination resistors
In some critical environments, you may need to add termination resistors to prevent the reflection of serial signals.
The I-7520U4 includes a 120Ω termination resistor for each channel by jumper selectable (Default disable).

LED Indicators
The I-7520U4 has 6 LED to indicate the power status and network traffic.
The TxD/RxD LED will flash when the unit is being sent out or received data.

Features

  • True RS-485 Star Wiring Hub
  • Independent RS-485 driver for each channel
  • LEDs for indicating TxD/RxD activity
  • Self-Tuner baud rate, 300 ~ 115200 bps and fixed baud rate setting via rotary switch, 1200 ~ 115200 bps
  • Hubs can be daisy chained for 256 channels
  • 120Ω termination resistor for each channel
  • Power Input, +10 ~ +30 VDC
  • Operating Temperatures, -25 °C ~ +75 °C
  • DIN-Rail

Specifications

Interface
Input 1 RS-232 Channel: TxD, RxD and GND
Output 4 RS-485 Channels: Data+, Data-
2-wire Cabling Belden 8941 (2P twisted-pair cable), if different cables are used, the transmission distance may change
Transfer Distance Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
Max. Devices Supported 256 (Each channel)
Self-Tuner Asic Inside Yes
Speed 300 ~ 115200 bps via Self-Tuner mode; 1200 ~ 115200 bps via Fixed Baud Rate mode
ESD Protection Yes
2500 VDC isolation on RS-232 Yes
Connection Removable 10-Pin Terminal Block x 1; 9-Pin Female D-Sub x 1
LED Indicators
Power/Communication Yes
Power
Input Voltage Range +10 VDC ~ +30 VDC (Non-isolated)
Power Consumption 1.2 W
Mechanical
Casing Plastic
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x H x D) 72 mm x 118 mm x 35 mm

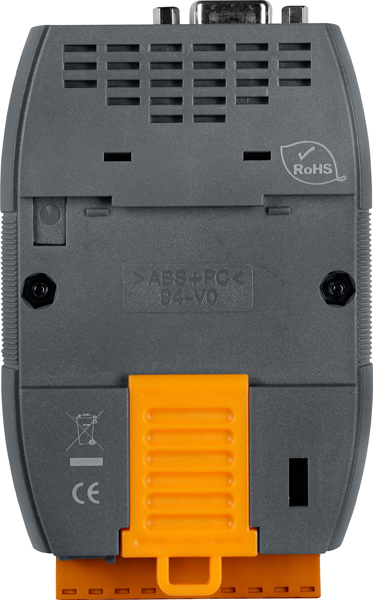

Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, non-condensing
