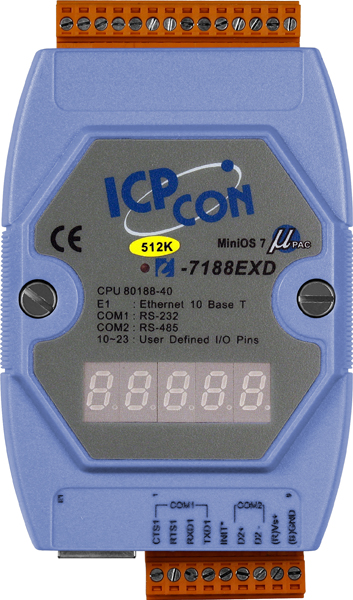

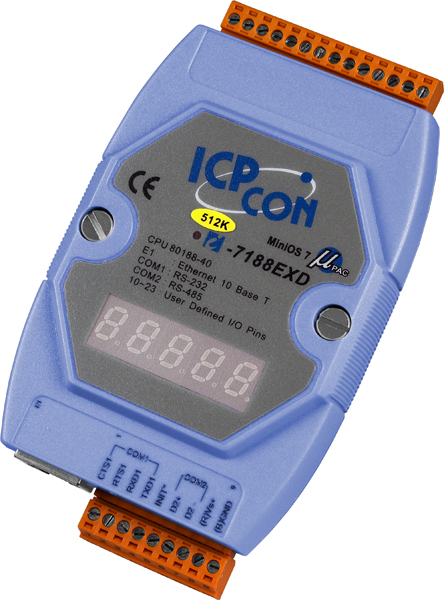

Embedded controller with 7-segment display, developing tool kit, 512K bytes flash, 512K bytes SRAM and MiniOS7.  Communicable over RS-485, RS-232, supports operating temperatures from -25°C to +75°C

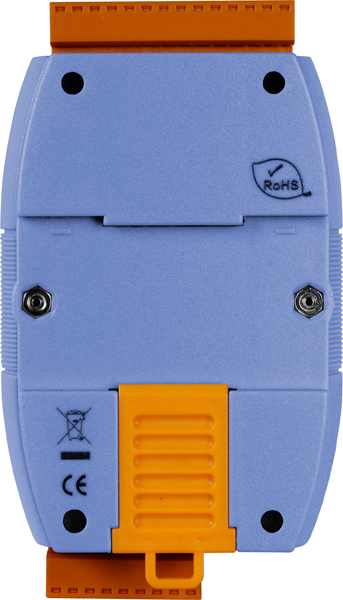

I-7188EXD

Embedded controller with 7-segment display, developing tool kit, 512K bytes flash, 512K bytes SRAM and MiniOS7. Communicable over RS-485, RS-232, supports operating temperatures from -25°C to +75°C

  Price:  $429.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

I-7188EX"Embedded Internet" and "Embedded Ethernet" are hot topics today. Nowadays the Ethernet protocol becomes the de-facto standard for local area network. Via Internet, connectivity is occurring everywhere, from home appliances to vending machines to testing equipment to UPS…etc. Many embedded designers now face dilemma of adding Ethernet interface to their products, either for use with local networks or for connecting to the Internet. Solutions to this problem include both hardware and software. Connecting via Ethernet requires a software protocol called TCP/IP. The installed base of Ethernet networks is huge and growing. Most office building, factories, and new homes have installed Ethernet network. With Ethernet, the network is always available. Using Ethernet for network in industrial area is appealing because the required cabling is already installed.

The I-7188EX is powered by 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. One serial RS-232 port and one RS-485 port are provided. Ethernet support is provided by a NE-2000 compatible controller with 16K bytes of on-chip buffer memory and 10Base-T media interface. The I-7188EX also provides 14 user defined I/O lines. A cost-effective I/O expansion board with A/D, D/A, relay drivers and protected inputs is available. The I-7188EX also supports battery back-up SRAM disk board and Flash-Rom board, providing non-volatile mass storage from 2 megabytes to 64 megabytes. The 10BASE-T port is equipped with a RJ-45 connector. The 10BASE-T interface supports max. 100-meter Cable length between I-7188EX and the network hub.

TCP/IP Library

The software library supports TCP/IP protocols & web server. Support the following protocols.

  • TCP, Transmission Control Protocol:
    Transport layer with connections, flow control and error correction
  • UDP, User Datagram Protocol:
    Simple connectionless transport layer
  • IP, Internet Protocol:
    The network layer
  • ICMP, Internet Control Message Protocol:
    Part of IP for practical purposes
  • ARP, Address Resolution Protocol:
    Retrieves a host's network controller's hardware address, given the host's Internet address
  • Reverse Address Resolution Protocol:
    Retrieves a host's Internet address, given the host's network controller's
  • AMD 80188-40 embedded CPU or compatible
  • Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP,ARP
  • 10BASE-T NE2000 compatible Ethernet Controller
  • Reloadable Operating Software
  • Remote Configuration
  • Diagnostics
  • 64-bit hardware unique serial number inside
  • COM driver support interrupt & 1K QUEUE Input & Output buffer
  • COM port: COM1, COM2
  • Built-in RTC, NVRAM, EEPROM
  • User defined 14 I/O lines
  • Built-in I/O expansion bus interface
  • Can add on one expansion board only
  • Built-in self-tuner ASIC controller on RS-485 port
  • 7-segment LED display for I-7188EXD
  • Built-in MiniOS7
  • Program download port: COM1 or Ethernet Port

Specifications

CPU
CPU 80188, 40MHz or compatible
SRAM

512K bytes

Flash Memory 512K bytes
EEPROM 2K Bytes
NVRAM 31 Bytes (battery backup, data valid up to 10 year)
RTC (Real Time Clock) Yes
64-bit Hardware Serial Number Yes
Built-in Watchdog Timer Yes
Communication Interface
COM1 RS-232 (TXD, RXD, RTS, CTS, GND)
COM2 RS-485 (D2+, D2-)
Ethernet Port 10BASE-T NE2000 compatible Ethernet Controller
COM Port Formats
Data bit 7, 8
Parity Even, Odd, None
Stop bit 1
LED Display
5-Digit 7 Segment LED Display Yes (for I-7188EXD only)
System LED Indicator Yes
Hardware Expansion
I/O expansion bus Yes
User defined I/O pins 14 pins
Dimensions
I-7188EX(D) 123mm x 72mm x 33mm
Operating Environment
Operating Temperature -25°C to +75°C
Storage Temperature -40°C to +80°C
Power
Protection Power reverse polarity protection
Required Supply Voltage +10 to +30V/DC (non-regulated)
Power consumption 2W for I-7188EX
3W for I-7188EXD
