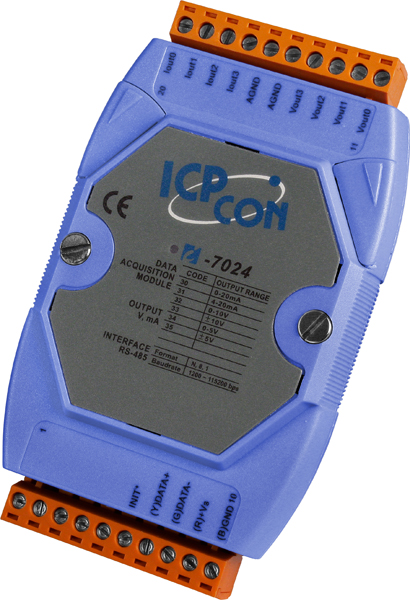

I-7024
4 Channel 14-bit Analog Output Current Output / Voltage Output Data Acquisition Module, communicable over RS-485, with FREE EZ Data Logger Software. Supports operating temperatures between -25°C ~ +75°C (-13°F ~ +167°F).
Features
The I-7024 module provides cost-effective protection and conditioning for a wide range of valuable industrial control signals and systems. The input type is configurable; the user selects the type and range remotely by issuing commands from the host. Fewer modules may be used for different applications. The user may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7024 comes with FREE EZ Data Logger Software.
Specifications
Analog Output
- Photo-isolation: 3750 Vrms
- Indication LED Light: for power and communication
- Channels: 4
- Output type: mA, V
- Output range: 0 ~ 20mA, 4 ~ 20mA, 0 ~ 5V, ±5V, 0 ~ 10V, ±10V
- 14-bit resolution
- Accuracy: ± 0.1% of FSR
- Resolution: ± 0.02% of FSR
- Zero drift:
Voltage output: ± 30uV/°C
Current output: ± 0.2uA/°C - Span temperature Coefficient: ± 20ppm/°C
- Programmable output slope:
0.125 to 2048 mA/second
0.0625 to 1024 V/second - Current load resistor:
External +24V power: 1050 Ohms
Communication Interface
- RS-485
- Input: +10 to +30Vdc
- Consumption :2.4W
Mount
- Din Rail Mount
