Voltage & Current Thermocouple Input Data Acquisition Module with LED Display, 1AI, 1 DI, 2 DO Channels, communicable over RS-485, and FREE EZ Data Logger Software. Supports operating temperatures between -25 to 75°C.

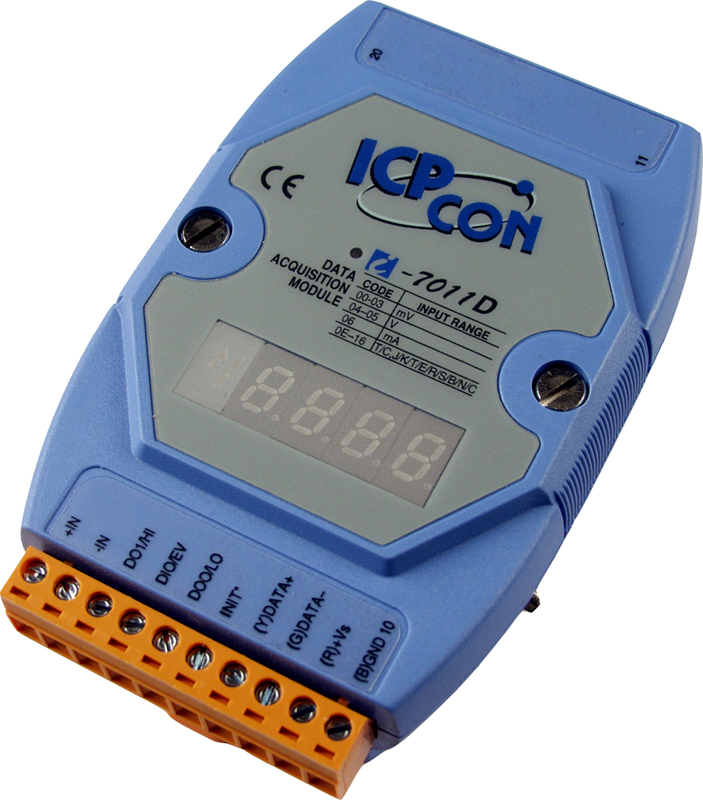

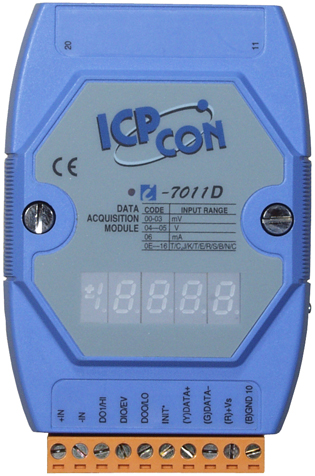

I-7011D

Voltage & Current Thermocouple Input Data Acquisition Module with LED Display, 1AI, 1 DI, 2 DO Channels, communicable over RS-485, and FREE EZ Data Logger Software. Supports operating temperatures between -25 to 75°C.

  Price:  $369.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

automation application

The I-7011D module provides cost-effective protection and conditioning for a wide range of valuable industrial control signals and systems. DCON utility can help users to configure and test I-7011D modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7011D comes with FREE EZ Data Logger Software.

Specifications

Analog Input
Input Channels 1
Input Type +/-15mV, +/-50mV, +/-100mV,+/- 500mV , +/-1V,+/- 2.5V
+/- 20mA (requires optional external 125 ohm resistor)
Thermocouple( Type J, K, T, E, R, S, B, N, C)
Resolution 16-bit
Sampling Rate 10 Samples/ Second
Accuracy +/-0.05%
Zero Drift +/-0.5uV/°C
Span Drift 25ppm/°C
Band Width 5.24Hz
Common Mode Rejection 150dB
Normal Mode Rejection 100dB
Input Impedance 20M Ohms
Intra-module Isolation, Field to Logic 3000 VDC
Digital Input
Channels 1
Logic Level 0 +1V max
Logic Level 1 +3.5V to 30V
Max Input Frequency 50Hz
Min. Pulse Width 1 ms
Digital Output
Channels 2
Output Type Sink, Open Collector to 30V
Output Load 30mA max. per channel
Power dissipation 300 mW
Interface
Interface RS-485
Format N, 8, 1
Baudrate 1200 ~ 115200 bps
LED Display
1 LED as Power/ Communication indicator
4 1/2 digits (for I-7011D)
Power
Input +10 to +30 Vdc
Power Consumption 0.9 W (I-7011) / 1.5W(I-7011D)
Environment
Operating temperature -25°C to 75 °C
Storage temperature -30°C to 75 °C
Humidity 5 to 95%, non-condensing



Thermocouple Type

Type Range (°C)
J -210 ~ +760
K -270 ~ +1372
T -270 ~ +400
E -270 ~ +1000
R 0 ~ +1768
S 0 ~ +1768
B 0 ~ +1820
N -270 ~ 1300
C 0 ~ 2320
