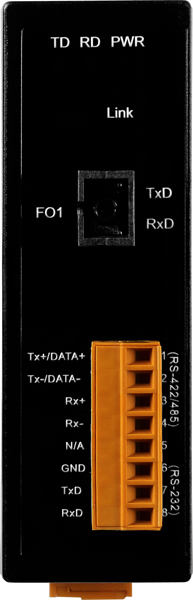

I-2542-B RS-232/422/485 to Single-Mode Fiber Optic Converter

I-2542-B

I-2542-B RS-232/422/485 to Single-Mode Fiber Optic Converter

  Price:  $479.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

References & Support


Features

I-2542-B is created to double the existing bandwidth, while effectively reducing the cost of creating a new fiber optic infrastructure. Its design comes from a series of single-Strand fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode and fiber optic line. The module is for RS-232/422 point-to-point connections and RS-485 multi-drop applications which require a signal to be transmitted for distances of up to 15km, making it a perfect solution in applications where transmission must be protected from electrical exposure, power surges, lightning strikes or chemical corrosion.

  • Automatic RS-485 Direction Control
  • Optical fibers enable transmission of 2 km for I-2541 ,15 km for
    I-2542-A/I-2542-B and 25 km for I-2542-A25/I-2542-B25
  • Avoids lightning strikes and EMI/RFI interference
  • Supports +10 VDC ~ +30 VDC
  • ESD Protection for the RS-232/422/485 Data Line
  • DIN-Rail Mounting
  • Supports operating temperatures from -25°C ~ +75°C

Specifications

Interface

Fiber Interface

Fiber Port

Single-Mode; SC connector

Wavelength

TX: 1310, RX: 1550 nm for I-2542-A/I-2542-A25
TX: 1550, RX: 1310 nm for I-2542-B/I-2542-B25

Fiber Cable

8.3/125, 8.7/125, 9/125 or 10/125 μm

Distance

15 km for I-2542-A/I-2542-B
25 km for
I-2542-A25/I-2542-B25
(9/125 μm recommended)

Serial Interface

RS-232 (The RS-232, RS-422 and RS-485 cannot be used simultaneously)

TxD, RxD, GND

RS-422 (The RS-232, RS-422 and RS-485 cannot be used simultaneously)

TxD+, TxD-, RxD+, RxD-

RS-485 (The RS-232, RS-422 and RS-485 cannot be used simultaneously)

Data+, Data-

RS-422/485 Transmission Distance

Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps (Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance may change)

Self-Tuner Asic Inside

Fixed baud rate setting via rotary switch

Speed

1200 ~ 115200 bps

ESD Protection

Yes

RS-232/422/485 Connector

Removable 8-Pin Terminal Block

LED Indicators

Power

Yes

Power

Input Voltage Range

+10 VDC ~ +30 VDC (Non-isolated)

Power Consumption

2 W

Mechanical

Casing

Plastic

Flammability

Fire-Retardant Materials (UL94-V0 Level)

Dimensions (W x L x H)

33 mm x 89 mm x 107 mm

Installation

DIN-Rail Mounting

Environment

Operating Temperature

-25°C ~ +75°C

Storage Temperature

-30°C ~ +75°C

Humidity

10 ~ 90% RH, non-condensing
