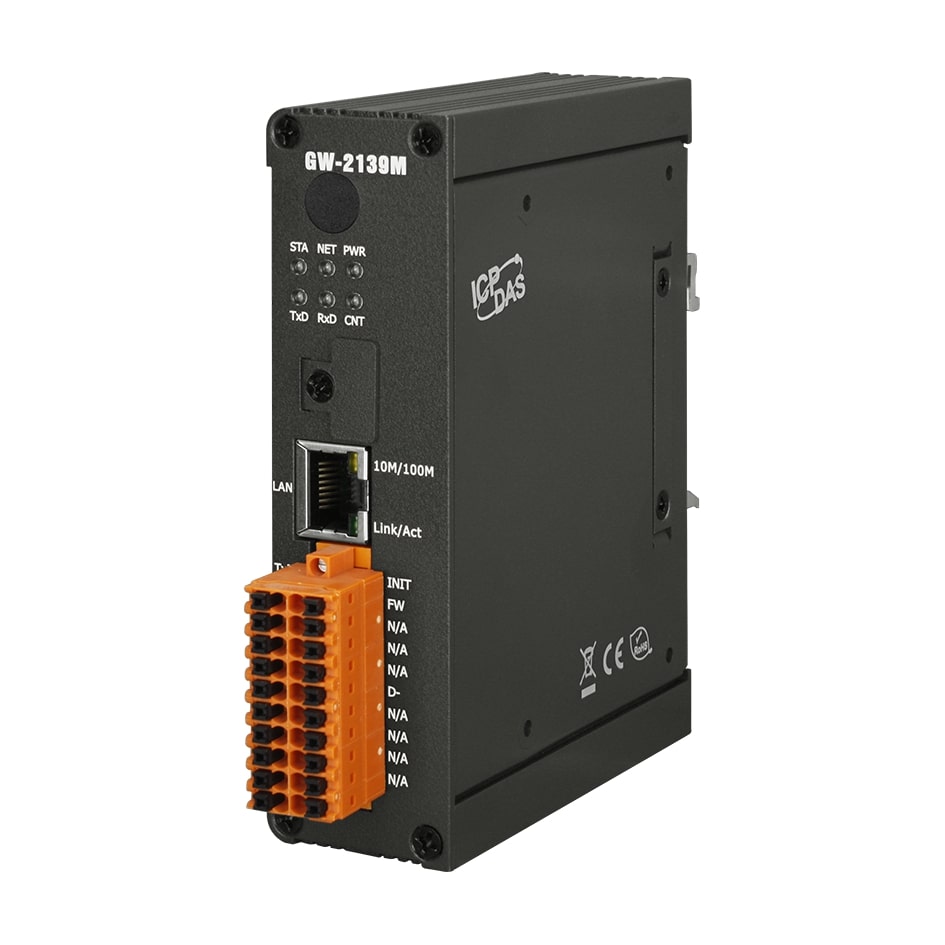

GW-2139M is a network gateway that enables Modbus TCP client devices to access a BACnet MS/TP network as a BACnet MS/TP master.

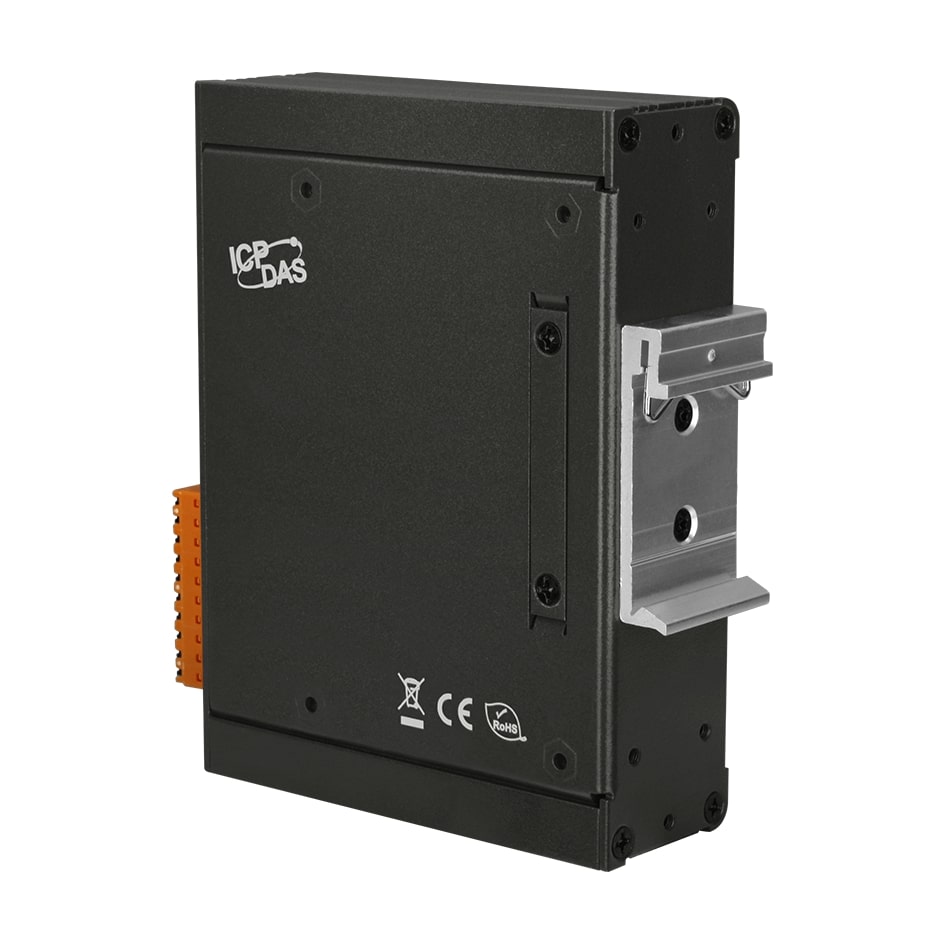

GW-2139M

write a review write a review

GW-2139M is a network gateway that enables Modbus TCP client devices to access a BACnet MS/TP network as a BACnet MS/TP master.

  Price:  $1,099.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK
Email Product Details Write a Review Write a Review Email Us
References and Support Add to Quote

Features

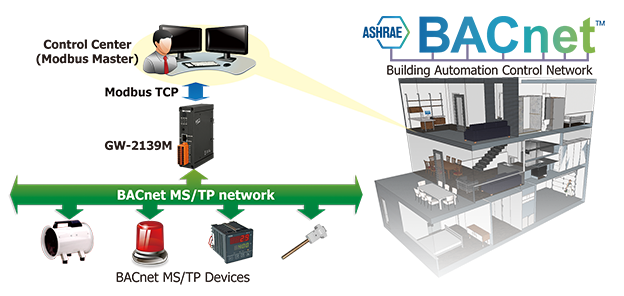

GW-2139M is a network gateway allowing Modbus TCP client devices to be accessed BACnet MS/TP network as a BACnet MS/TP master. The BACnet Master Slave Token Passing (MS/TP) protocol is used to relay and exchange information between building devices. GW-2139M contains a large number of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO, MSV) gives you flexibility in mapping Modbus TCP registers to any combination of BACnet objects. BACnet interoperability building blocks (DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A) are Supported. All the data transfer is configurable using ICPDAS Utility


Specifications

  • Read/Write standard BACnet objects via modbus
  • Configurable BACnet MS/TP master
  • Configurable Modbus TCP Server
  • class="Text1" style="line-height: 18px;">Simple data translation allows you to manipulate data as it passes between protocols
  • Supports BACnet AI, AO, AV, BI, BO, BV, MSI, MSO, MSV Object Types
  • Supports Modbus “coils”, input registers, holding registers ?BACnet object properties mapping configured via Modbus register

Applications

  • Building Automation
  • Heating, Ventilating, and Air-conditioning Control
  • Lighting Control
  • Access Control
  • Fire Detection Systems

Utility

  • Provide Modbus TCP network configuration interface
  • Provide BACnet MS/TP configuration interface

Specifications

Ethernet
Controller 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
Connector RJ-45 with Ethernet indictor
Protocol Modbus TCP Server
Maximum Connections 8
RS-485 Interface
Connector termninal block(D+, D-)
Baud Rate (bps) 9600, 19200, 38400, 76800
Terminator Resistor Built-in 120 ohm terminator resistor, enabled/disabled via Jump
Isolation 3 kV VDC for DC to DC, 2500 Vrms for photo couple
Protocol BACnet MS/TP Master
Maximum Connections 32
BIBBs DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A
Power
Protection Power reverse polarity protection
EMS Protection ESD, Surge, EFT
Required Supply Voltage +10 VDC ~ +30 VDC
Power Consumption 5 W @ 24 VDC
LED Indicator
LED (Round) Power (1), BACnet MS/TP Status (1), BACnet MS/TP Net(1),
Modbus TCP TxD/RxD/Link (3)
Ethernet LED Ethernet LED Ethernet Status (RJ-45) (2)

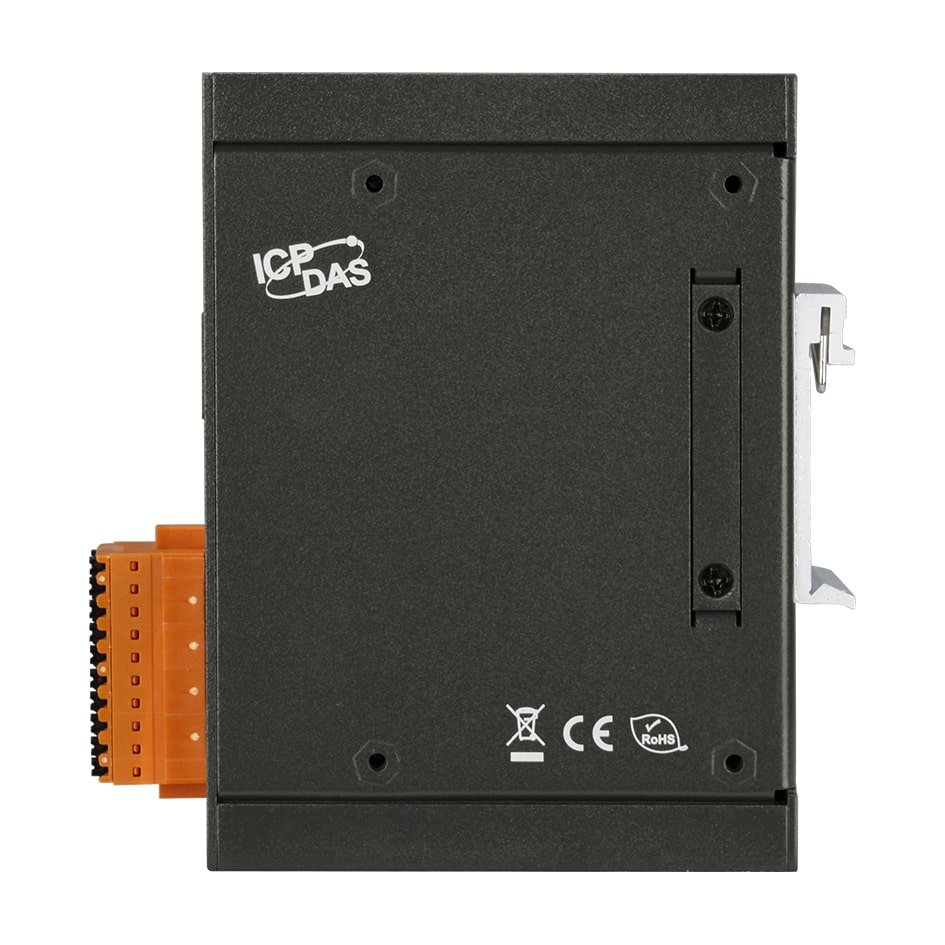

Mechanism

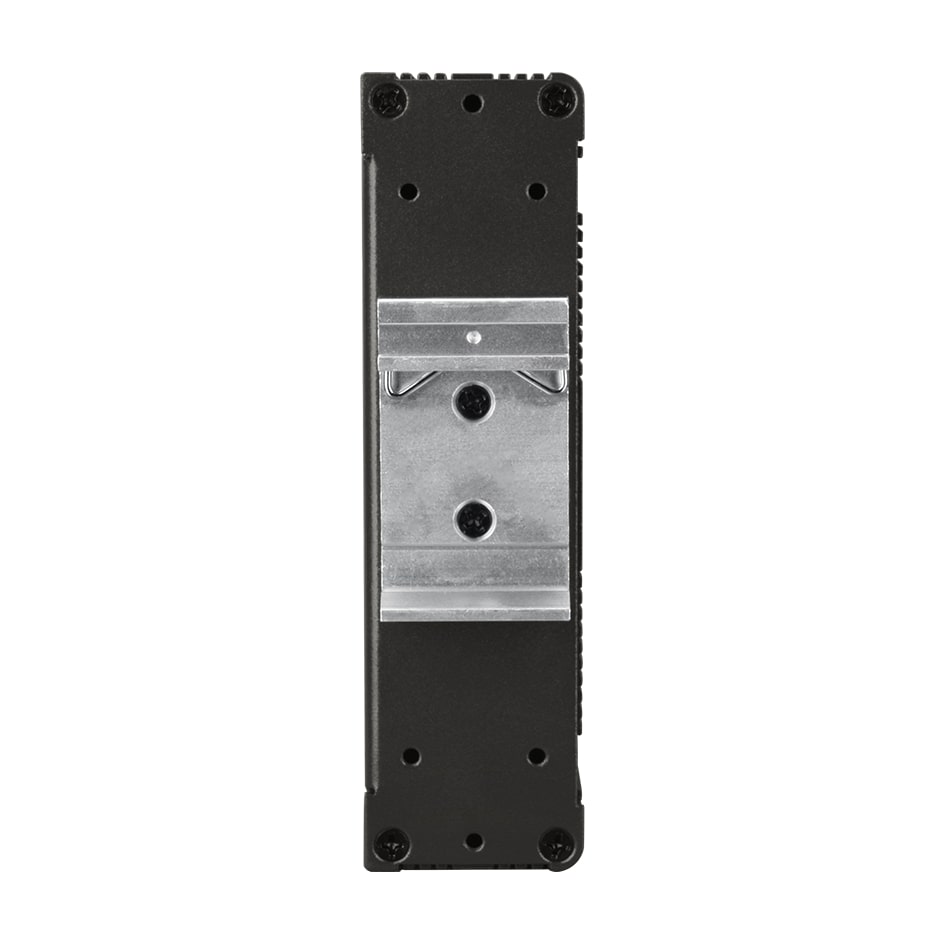

Installation DIN-Rail
Casing Metal
Dimensions (W x L x H) 33 x 120 x 116 mm
Environment
Operating Temp. -25 ~ 75 ?
Storage Temp. -30 ~ 80 ?
Humidity 10 ~ 90% RH, non-condensing
