3G GSM/WCDMA Power Saving Programmable Automation Controller (PAC) with solar charger, LCD display, and built-in real time clock. Supports GSM 850/900/1800/1900 MHz and WCDMA 850/900/1900/2100 MHz. Communicates over RS-232, RS-485 and Ethernet. Support TCP ,UDP client connection over GPRS. Has a DIN Rail mount. Operating temperature range is -15°C ~ +55°C (-59°F ~ +131°F).

G-4513PD-3GWA

3G GSM/WCDMA Power Saving Programmable Automation Controller (PAC) with solar charger, LCD display, and built-in real time clock. Supports GSM 850/900/1800/1900 MHz and WCDMA 850/900/1900/2100 MHz. Communicates over RS-232, RS-485 and Ethernet. Support TCP ,UDP client connection over GPRS. Has a DIN Rail mount. Operating temperature range is -15°C ~ +55°C (-59°F ~ +131°F).

  Price:  $1,699.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

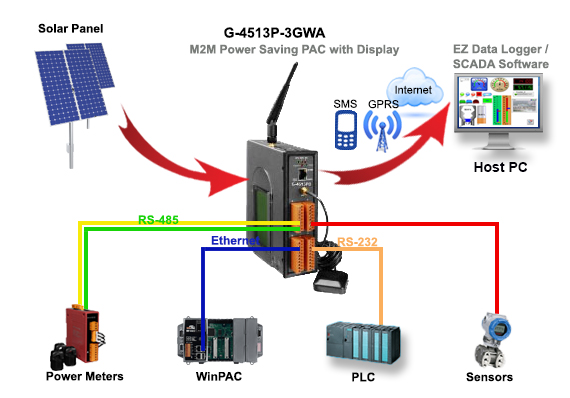

Application Image G-4513PD-3GWA

The G-4513PD-3GWA is a M2M power-saving Programmable Automation Controller (PAC) with a solar charger. It can be used in hydrologic monitoring or mudslide monitoring system. It is also available for use in a vehicle GPS tracking system. The features of G-4513PD-3GWA model are the following: Solar charger, 3G module, Ethernet interface, optional GPS module, 3 digital inputs, 3 digital outputs, 8 analog inputs, 1 relay output.

  • Embedded MiniOS7 operating system with anti-virus
  • Support GSM 850/900/1800/1900 MHz
  • Support WCDMA 850/900/1900/2100 MHz
  • Solar charger for Lead acid battery
  • 10/100 Base-TX compatible Ethernet controller
  • COM port: COM1 (5-wire RS232), COM2 (RS-485)
  • I/O: 3 Digital Input, 3 Digital Output, 8 Analog Input, 1 relay Digital Output
  • Support SD card
  • Built-in Real Time Clock, NVRAM, EEPROM
  • 128*64 dots LCM display
  • GPS : 32 channels with All-In-View tracking (option)
  • Support Modbus TCP and UDP client connection over GPRS
  • Very reliable in harsh environments
  • DIN-Rail mountable

Specifications

Item
CPU 80 MHz internal microprocessor
SRAM/Flash 512K/512K , real time clock, watchdog timer
NVRAM 31 bytes, battery backup, data valid up to 10 years
EEPROM 16 KB, retention > 40 years. 1,000,000 erase/write cycles
Comm. Interface
COM ports COM1:5-wire RS-232; COM2: RS-485; COM3:3-wire RS-232
Ethernet 10/100 Base-TX Ethernet controller
GPRS Interface
Frequency Band Quad-band 850/900/1800/1900 MHz
GPRS connectivity GPRS class 10/8; GPRS station class B
SMS MT, MO, CB, Text and PDU mode
GPS Interface
Support Channels 32
Sensitivity Tracking = up to -159 dBm (with external LNA)
Cold start = up to -146 dBm (with external LNA)
Acquisition Time Hot start (Open Sky) = 2 s(typical)
Cold start (Open Sky) = 36 s(typical)
Protocol Support NMEA 0183 version 3.01
LED Indicators
System Red
3G Yellow
GPS Green
Charging / Fault Green/Red
Power
Protection Power reverse polarity protection
Frame Ground Protection ESD, Surge, EFT, Hi-Pot
Power Requirement +10 VDC ~ +30 VDC , (Max. Voltage of Solar Panel must less +30V)
Power Consumption Sleep: < 10 mA @ 12VDC; Sleep (With LCD): < 11 mA @ 12VDC; Idle: 77 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC
LCD Interface
System Effective 80.61 mm x 14.37 mm (W x H)
Module Dimension 93 mm x 70 mm x 1.6 mm (W x H x T)
GPRS Yellow
Life Time Expectancy 100,000 hours under normal operation
Mechanical
Casing Metal
Dimensions 47 mm x 142 mm x 168 mm (W x L x H)
Installation DIN-Rall and Wall mount
Environment
Operating Temperature -15°C ~ +55°C (5°F ~ +131°F)
Storage Temperature -20°C ~ +70°C (-4°F ~ +158°F)
Humidity 5~90% RH, non-condensing

I/O Specifications

Digital Output
Output Channel 3
Output Type Open Collector (Sink/NPN)
Load Voltage +30 VDC max.
Load Current 100 mA max.
Isolated Voltage Non-isolated
Digital Input
Input Channel 3
Input Type Source (Dry Type), Common Ground
Off Voltage Level +1 V max.
On Voltage Level +3.5 ~ +30 V
Isolated Voltage Non-isolated
Analog Input
Input Channel 8
Resolution 12 - bit
Input Range/Type 0 ~ 20 mA
Sample Rate 1 KHz max. (Read one channel)
Relay
Output Channel 1
Type Form C
Input Range 2A@30 Vdc ; 0.25 A @250 Vac
Mechanical Endurance typ. 10^8 operations
