G-4513D-3GWA
3G M2M PAC controller can be powered with a Solar Panel or 12VDC. Has 3 Digital Inputs, 3 Digital Outputs, 8 Analog Inputs and 1 Relay Output. Supports GSM 850/900/1800/1900 MHz and WCDMA 850/900/1900/2100 MHz, has LCD Display, communicable over Modbus TCP, Ethernet, RS-485 and RS-232. Supports operating temperature range of -15°C ~ +55°C (-59°F ~ +131°F).
Features

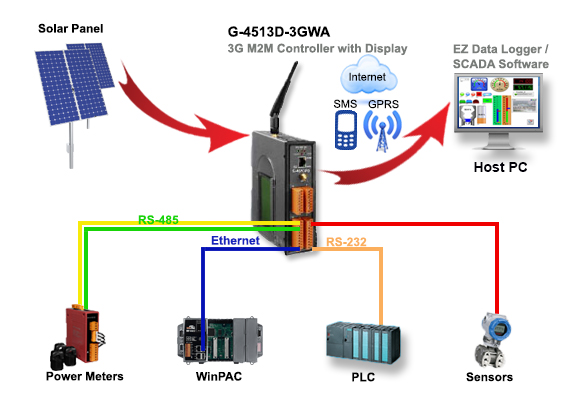

G-4513D-3GWA is a M2M power saving programmable automation controller with a cellular transceiver and a solar charger. It comes with LCD indicators for easy user interface. Equipped with various connectivity capabilities including Modbus TCP, Ethernet, RS-232, and RS-485, the G-4513D-3GWA cellular wireless controller can be used in remote monitoring applications. With the solar charger, the module can save your costs on power consumption. It has 3 digital inputs, 3 digital outputs, 8 analog inputs, and 1 relay output so it can be easiliy integrated with other I/O and SCADA systems.
- Embedded MiniOS7 operating system with anti-virus
- Support GSM 850 / 900 / 1800 / 1900 MHz
- Support WCDMA 850 / 900 / 1900 / 2100 MHz
- Solar charger for Lead acid battery
- 10/100 Base-TX Ethernet port
- COM port: COM1 (5-wire RS-232), COM2 (RS-485)
- I/O: 3 Digital Input, 3 Digital Output, 8 Analog Input, 1 relay Output.
- Support SD card.
- Built-in Real Time Clock, NVRAM, EEPROM
- 128*64 dots LCM display (option)
- Support Modbus TCP ,UDP client connection over GPRS
- High reliability in harsh environments
- DIN-Rail mountable
Specifications
Item |
||
CPU | 80 MHz internal microprocessor | |
SRAM/Flash | 512K/512K , real time clock, watchdog timer | |
NVRAM | 31 bytes, battery backup, data valid up to 10 years | |
EEPROM | 16 KB, retention > 40 years. 1,000,000 erase/write cycles | |
Comm. Interface | ||
COM ports | COM1:5-wire RS-232; COM2: RS-485; COM3:3-wire RS-232 | |
Ethernet | 10/100 Base-TX Ethernet controller | |
GPRS Interface | ||
Frequency Band | Quad-band 850/900/1800/1900 MHz | |
GPRS connectivity | GPRS class 10/8; GPRS station class B | |
SMS | MT, MO, CB, Text and PDU mode | |
LED Indicators | ||
System | Red | |
3G | Yellow | |
GPS | -- | |
Charging / Fault | Green/Red | |
Power | ||
Protection | Power reverse polarity protection | |
Frame Ground Protection | ESD, Surge, EFT, Hi-Pot | |
Power Requirement | +10 VDC ~ +30 VDC , (Max. Voltage of Solar Panel must less +30V) | |
Power Consumption | Sleep: < 10 mA @ 12VDC; Sleep(With LCD): < 11 mA @ 12VDC; Idle: 77 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC | |
LCD Interface | ||
System | Effective | 80.61 mm x 14.37 mm (W x H) |
Module Dimension | 93 mm x 70 mm x 1.6 mm (W x H x T) | |
GPRS | Yellow | |
Life Time Expectancy | 100,000 hours under normal operation | |
Mechanical | ||
Casing | Metal | |
Dimensions | 47 mm x 142 mm x 168 mm (W x L x H) | |
Installation | DIN-Rall and Wall mount | |
Environment | ||
Operating Temperature | -15°C ~ +55°C (-5°F ~ +131°F) | |
Storage Temperature | -20°C ~ +70°C (-4°F ~ +158°F) | |
Humidity | 5~90% RH, non-condensing |
I/O Specifications
Digital Output | |
Output Channel | 3 |
Output Type | Open Collector (Sink/NPN) |
Load Voltage | +30 VDC max. |
Load Current | 100 mA max. |
Isolated Voltage | Non-isolated |
Digital Input | |
Input Channel | 3 |
Input Type | Source(Dry Type), Common Ground |
Off Voltage Level | +1 V max. |
On Voltage Level | +3.5 ~ +30 V |
Isolated Voltage | Non-isolated |
Analog Input | |
Input Channel | 8 |
Resolution | 12 - bit |
Input Range/Type | 0 ~ 20 mA |
Sample Rate | 1 KHz max. (Read one channel) |
Relay | |
Output Channel | 1 |
Type | Form C |
Input Range | 2A@30 Vdc ; 0.25 A @250 Vac |
Mechanical Endurance | typ. 10^8 operations |
