Isolated PCI Bus FRnet Communication Board with 1 FRnet port

FRB-100H / 100L

Isolated PCI Bus FRnet Communication Board with 1 FRnet port

  Price:  $209.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.


PC-based I/O control systems are widely used in measurement and control system applications. But sometimes it is very difficult to meet the demands of critical timing control missions. As a result of the special features of FRnet, such as real I/O synchronization and fixed scan time, FRB boards can be added to PC-based systems to give additional PLC-like control functions, with no need to mix PC-based controllers with PLCs. The FRB-200U supports both 5V and 3.3V while the FRB-100/200 PCI card supports 5V PCI bus only. The FRB-200U (Universal PCI version) is fully compatible with the FRB-100/200.

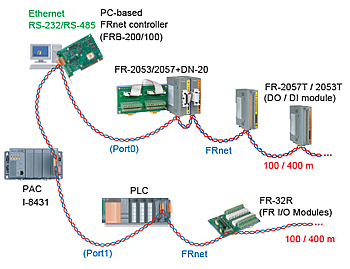

Traditional high-channel-count I/O cards occupy several PC slots, and the bulky cables can be difficult to handle. Several FRB boards can be combined to work together to control thousands of I/O channels. Reduced cabling, lower labor costs, easy installation and higher reliability are the major advantages of an FRnet solution.

The FRB-100/200/200U is an isolated FRnet communication board. The FRB-100 has a single FRnet port, while the FRB-200/200U has two FRnet ports. Each FRnet port can control a maximum of 16 communication nodes, numbered from 0 to 15. Each single node of the remote I/O module can control a maximum of 16 DI/DO (8 DI and 8 DO) channels. In other words, each FRnet port can control a maximum of 256 DI/DO (128 DI and 128 DO) channels.

  • 5Vdc PCI Bus add-on card
  • Innovative Token-stream communication technology
  • Real I/O synchronization capability
  • Real deterministic control
  • Fixed scan time:
  • 128 input /128 output points @ 2.9mS (-L version)
  • 128 input /128 output points @ 0.7mS (-H version)
  • Ultra high speed distributed I/O control capability
  • Memory-mapping I/O programming
  • Easily programmable
  • No transmission protocol required meaning no software overhead
  • Two-wire cabling
  • OS independent


  • Industrial Automation
  • Remote I/O control
  • Building Automation
  • Parking Lot Management


  • Communication speed: 250Kbps
  • Cyclic Scan time:
    128 input/128 output points@2.88 ms
  • Communication distance: 400m max
  • Wire cable: (shielded) Twisted-pair cable
    General Specifications
  • Power consumption: 5V DC @ 250mA(max)
  • Operating temperature: -25°C ~ +75°C
  • Operating humidity: 10% ~ 90% RH, non-condensing
  • Storage temperature: -30°C ~ +85°C
  • Storage humidity: 5% ~ 95% RH, non-condensing
  • Dimensions: 120 mm x 90 mm
