FRA05-S12-SU - Power Supply for tDS-700, tGW-700 and GW-7472

12V / 0.58A (max) 6.96W Power Supply for tDS-700 Serial to Ethernet Device Servers, tGW-700 Modbus TCP to RTU/ASCII Device Servers and GW-7472 EtherNet/IP to Modbus RTU/Modbus TCP Gateway.

  Price:  $29.00

Features

  • Universal input voltage
  • Short circuit protection
  • High efficiency & reliability

Reference & Support

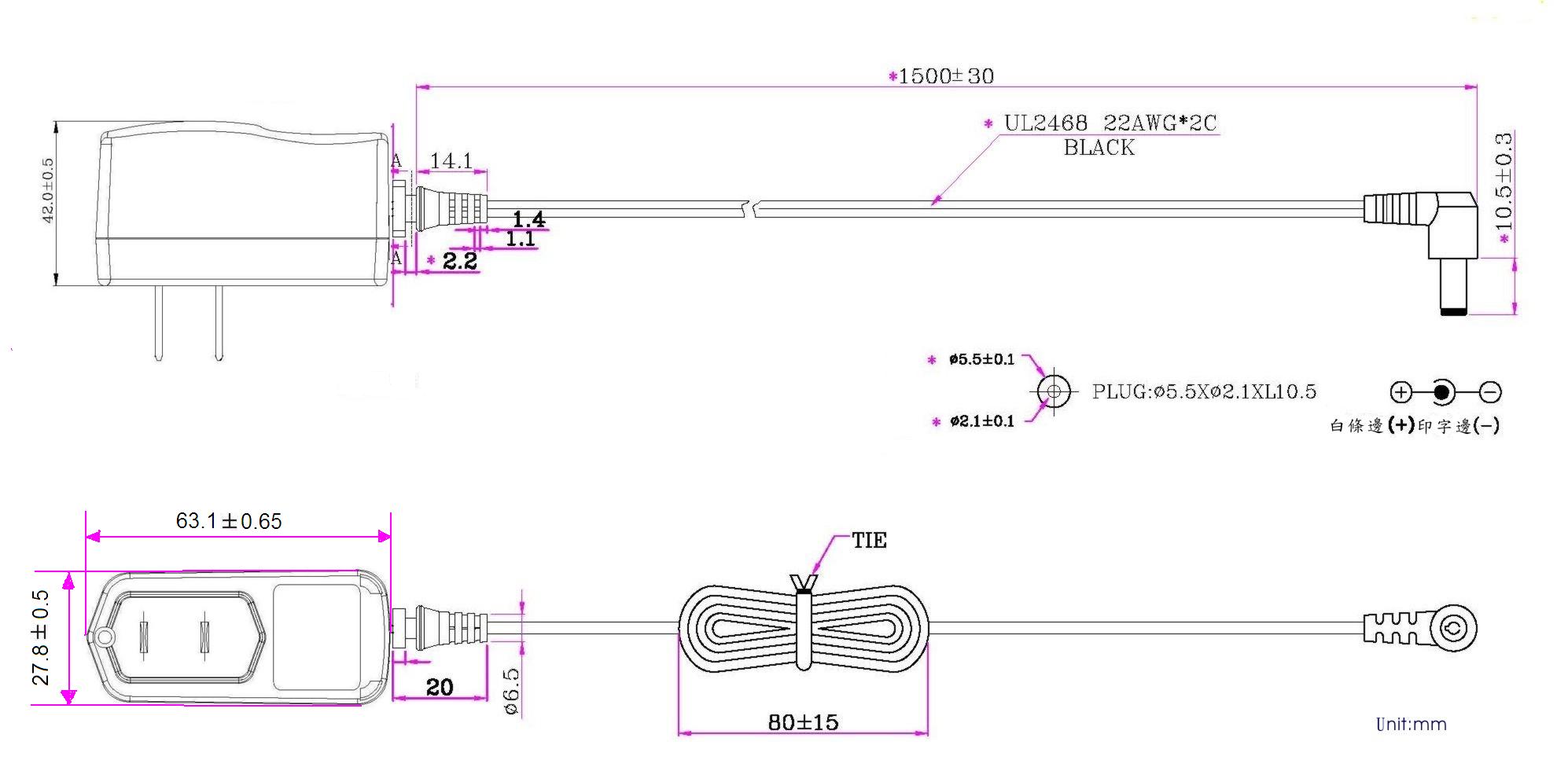

  • Dimensions
  • Specifications

    Input
    Voltage range 100-240 VAC
    Frequency 50/60 Hz
    Input current 0.3 A(rms) for 115 VAC, 0.2 A (rms) for 230 VAC.
    Insulation resistance 50 MOhm min from output to ground.
    Inrush current 30 A @ 115 VAC, or 50 A @ 230 VAC at 25°C cold start.
    Output
    Voltage 12 VDC
    Output current 0.58 A
    Ripple ±3% p-p max.
    Over voltage protection Yes
    Over current protection Yes
    Temperature coefficient All outputs ±0.03%/°C max.
    Efficiency 75% min. while measuring at normal line and rated load.
    Hold-up time 10msec min.
    Line regulation ±1% max for input voltage change between input voltage range.
    Load regulation ±3% variations from min to max output current.
    General
    MTBF 50,000 hours min at full load at 25°C ambient. MIL-HDBK-217F
    Environmental
    Operating Temperature -10 °C ~ +70°C
    Storage Temperature -20 °C ~ +85°C
    Humidity 10% ~ 95% RH, non-condensing
    Derating Derated from 100% at +40 °C linearly to 50% at 70 °C.
    Standards
    Safety standards Meets or exceeds UL1950,CSA C22.2, TUV EN60950, IEC950. (Pending)
    EMI Meets conduction limits of FCC Part 15 Class B, CISPR 22.2
    Others
    Dimension (W x H x D) 27.8 mm x 42.0 mm x 63.1 mm
    DC plug 5.5 x 2.1 x 10.5 mm   90° center positive
    DC cable UL2468 22AWG x 2C L = 1500 mm
