Modbus TCP based Remote Ethernet I/O Data Acquisition Module with 3-axis Encoder/Counter Inputs (Digital Input). Support Modbus TCP and Modbus UDP Protocols. 32-bit Counter.  Support Operating Temperatures: -25 ~ + 75°C (-13°F ~ +167°F) and has a din rail mount.

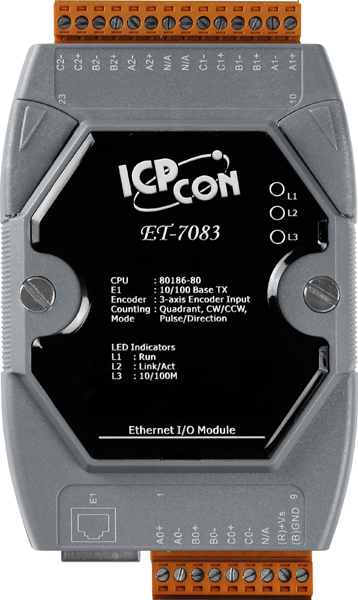

ET-7083

Modbus TCP based Remote Ethernet I/O Data Acquisition Module with 3-axis Encoder/Counter Inputs (Digital Input). Support Modbus TCP and Modbus UDP Protocols. 32-bit Counter. Support Operating Temperatures: -25 ~ + 75°C (-13°F ~ +167°F) and has a din rail mount.

  Price:  $459.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The ET-7083/PET-7083/ET-7283/PET-7283 is a 3-axis high speed encoder/counter module. Its each axis can be individually configured for Quadrant, Pulse/Direction or CW/CCW counting modes. The maximum input rate for Quadrant counting mode is 1 MHz, and for Pulse/Direction, CW/CCW counting modes is 4 MHz. The encoder/counter module is equipped a FRAM to retain the counter value after it is powered off. FRAM is a nonvolatile memory that can hold written data even after it is powered off. The data retention can be 10 years. And the feature can be configured as enabled or disabled.

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocol
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ + 75°C
  • Built-in I/O
    • 3-Axis 32-bit encoder/counter iinputs
    • 1 Mhz max. for Quadrant mode
    • 1 Mhz max. for CW/CWW, Pulse/Direction mode
    • Count Value Retention for 10 years

Specifications

Software
Built-In Web Server
Yes
Web HMI
Yes
I/O Pair Connection
Yes
Communication
Ethernet Port
1 x RJ-45, 10/100 Base-TX
PoE -
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watch Dog
Yes, Module (0.8 second), Communication (Programmable)
LED Indicators
for System Running
Yes
For Ethernet Link/Act
Yes
for DI/DO
-
for PoE Power
-
2-Way Isolation
Ethernet
1500 VDC
I/O
2500 VDC
EMS Protection
ESD (IEC 61000-4-2)
4 kV Contact for Each Terminal and 8 kV Air for Random Point
EFT (IEC 61000-4-4)
+/-4 kV for Power
Power Requirements
Reverse Polarity Protection Yes
Powered from Terminal Block 1 ~ 30 VDC
Power PoE -
Consumption
2.7W
Mechancial
Dimensions
72 mm x 123 mm x 35 mm
Installation
DIN-Rail or Wall mounting
Environmental
Operating Temperature
-25 ~ +75°C
Storage Temperature
-30 ~ +80°C
Humidity
10 ~ 90% RH, Non-condensing
Environmental
Operating Temperature
-25 ℃ ~ +55 ℃
Storage Temperature
-40 ℃ ~ +80 ℃
Ambient Relative Humidity
5 ~ 95% RH, non-condensing

I/O Specification

Software
Axis
3
Counting Mode
Quadrant
CW/CCW
Pulse/Direction
Maximum Count 32-bit
Maximum Counting Rate Quadrant mode: 1 Mhz
CW/CCW mode: 4Mhz
Pulse/Direction mode: 4Mhz
Count Value Retention Yes, for 10 years
Counter Preset Value Programmable
Input Signal Level 5 VDC
12 VDC with 1k ohm external resistor (1/2 W)
24 VDC with 2k ohm external resistor (1/2 W)
Intra-module Isolation, Field to Logic 2500 Vrms
