EtherCAT Slave I/O Module with Isolated 8-channel Digital Output and 8-channel Digital Input. Wet Sink/Source Digital Input Type and Open Source Digital Output. Has operating temperatures range of -25°C ~ +75°C (-13°F ~ 167°).

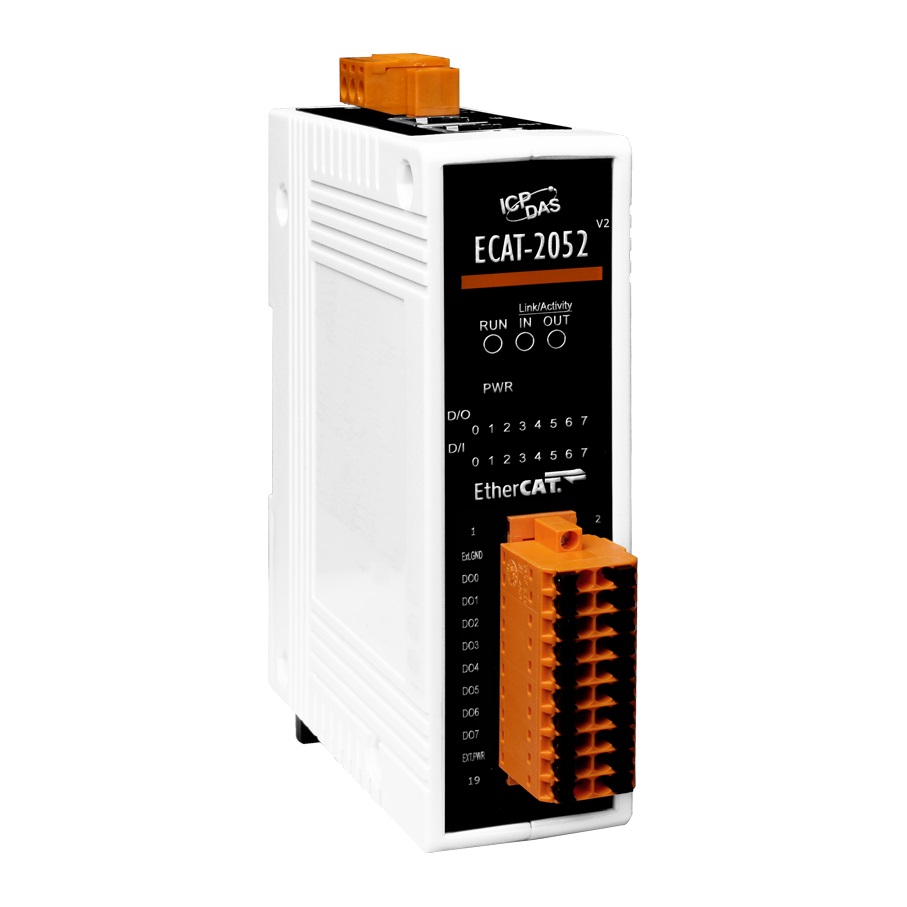

ECAT-2052

EtherCAT Slave I/O Module with Isolated 8-channel Digital Output and 8-channel Digital Input. Wet Sink/Source Digital Input Type and Open Source Digital Output. Has operating temperatures range of -25°C ~ +75°C (-13°F ~ 167°).

  Price:  $279.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

Application Image EtherCAT

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment.

The ECAT-2052 is built in isolated 8 digital inputs and 8 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.

  • On the fly processing: EtherCAT
  • Powerful MCU handles efficient network traffic

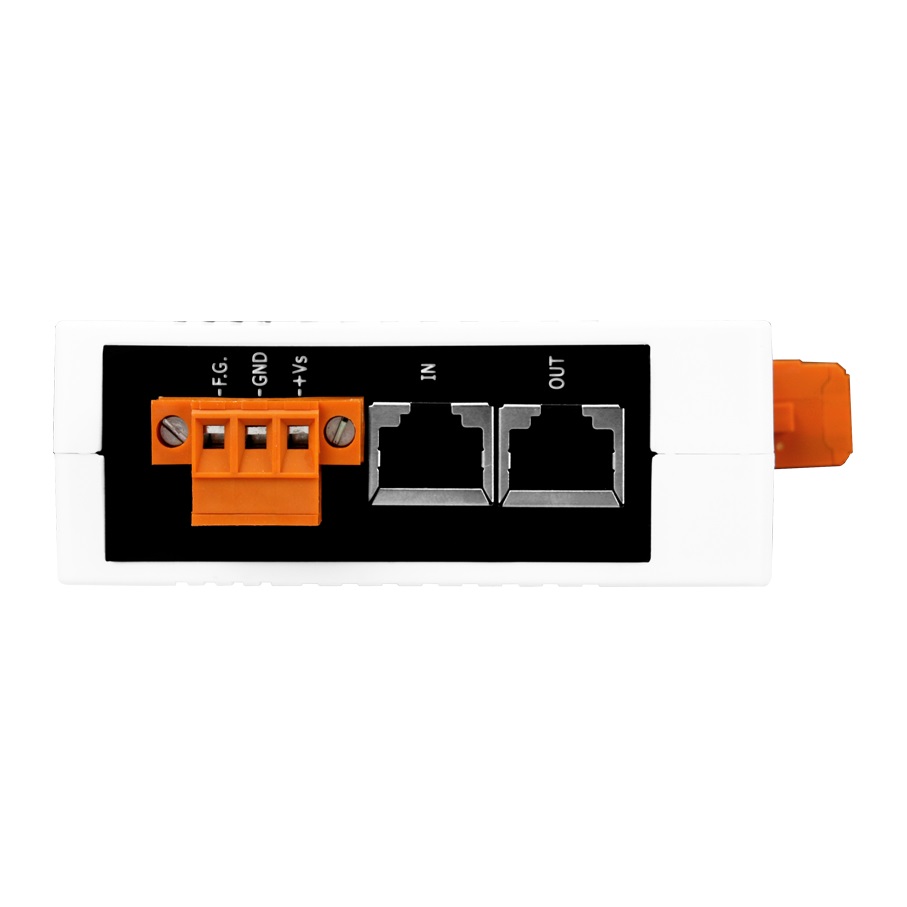

  • 2 x RJ-45 bus interface
  • Distance between Stations up to 100 m (100BASE-TX)
  • Support daisy chain connection
  • EtherCAT conformance test tool verified

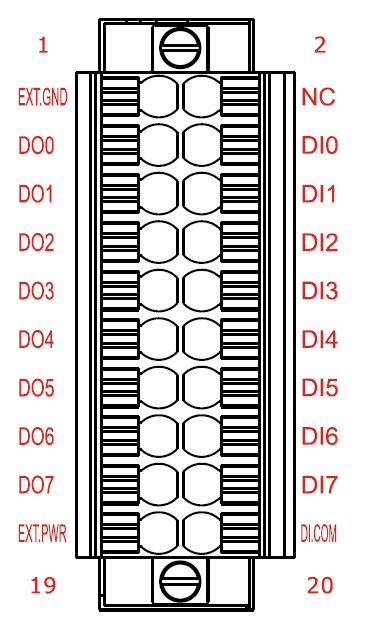

  • Removable terminal block connector
  • LED indicators for the I/O status
  • Built-In digital I/O: 8 DI and 8 DO
  • RoHS compliant
  • ESD Protection 4 KV Contact for each channel

Applications

  • Semiconductor Tools
  • Metal Forming
  • Packaging
  • Injection Molding
  • Assembly Systems
  • Printing Machines
  • Robotics

Specifications

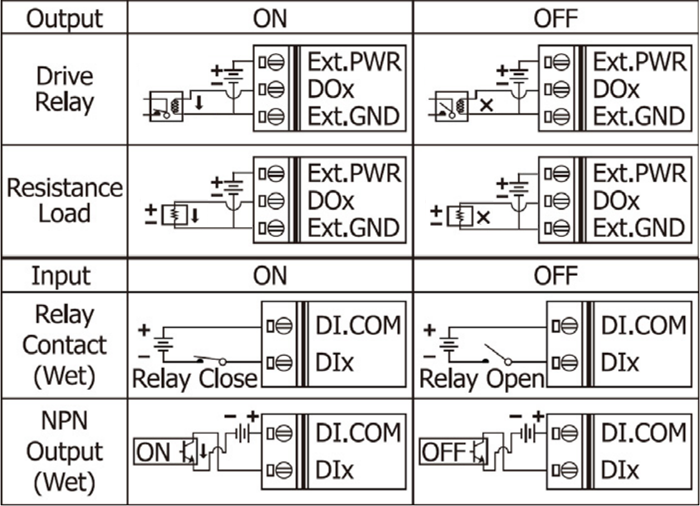

Digital Input
Channels 8
Input Type Wet (Sink/Source)
Off Voltage Level +2V Max.
On Voltage Level +3.5 V ~ +50 V
Isolation Voltage 3750 VDC
Digital Ouput
Channel 8
Output Type Open Source (Source)
Load Voltage +3.5 ~ 30 V
Max. Load Current 100mA per channel
Isolation Voltage 3750 Vrms
Communication Interface
Connector 2 x RJ-25
Protocol EtherCAT
Distance between Stations Max. 100 meters (100BASE-TX)
Data Transfer Medium Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Power
Input Voltage Range 10V ~ 30VDC
Power Consumption Max. 4W
Mechanism
Installatin DIN-Rail
Dimensions 110mm x 90mm x 33mm (H x W x D, without connectors)
Case Material UL 94V-0 housing
Environment
Operating Temperature -25°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature -30℃ ~ 80℃
Relative Humidity 10 ~ 90%, No Condensation
ESD (IEC 61000-4-2) 4 KV Contact for Each Channel
EFT (IEC 61000-4-4) Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5) 1 KV Class A
