EtherCAT Slave I/O Module with Isolated 16-ch Digital Inputs. 4W Max power consumption, 10V ~ 30VDC, 2 x RJ-45.  Has operating temperatures range of -25°C ~ +75°C (-13°F ~ 167°).

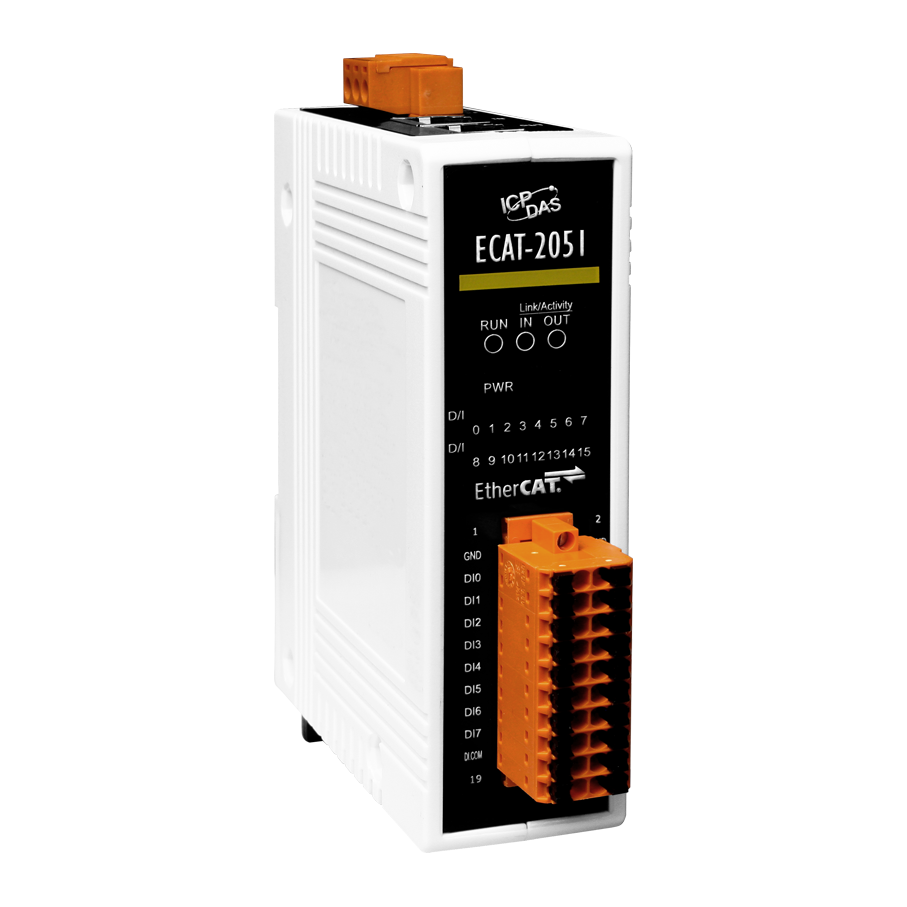

ECAT-2051

EtherCAT Slave I/O Module with Isolated 16-ch Digital Inputs. 4W Max power consumption, 10V ~ 30VDC, 2 x RJ-45. Has operating temperatures range of -25°C ~ +75°C (-13°F ~ 167°).

  Price:  $289.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

Application Image EtherCAT

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment.

The ECAT-2051 is built in isolated 16 digital inputs. Users can obtain the input status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.

  • On the fly processing: EtherCAT
  • Powerful MCU handles efficient network traffic

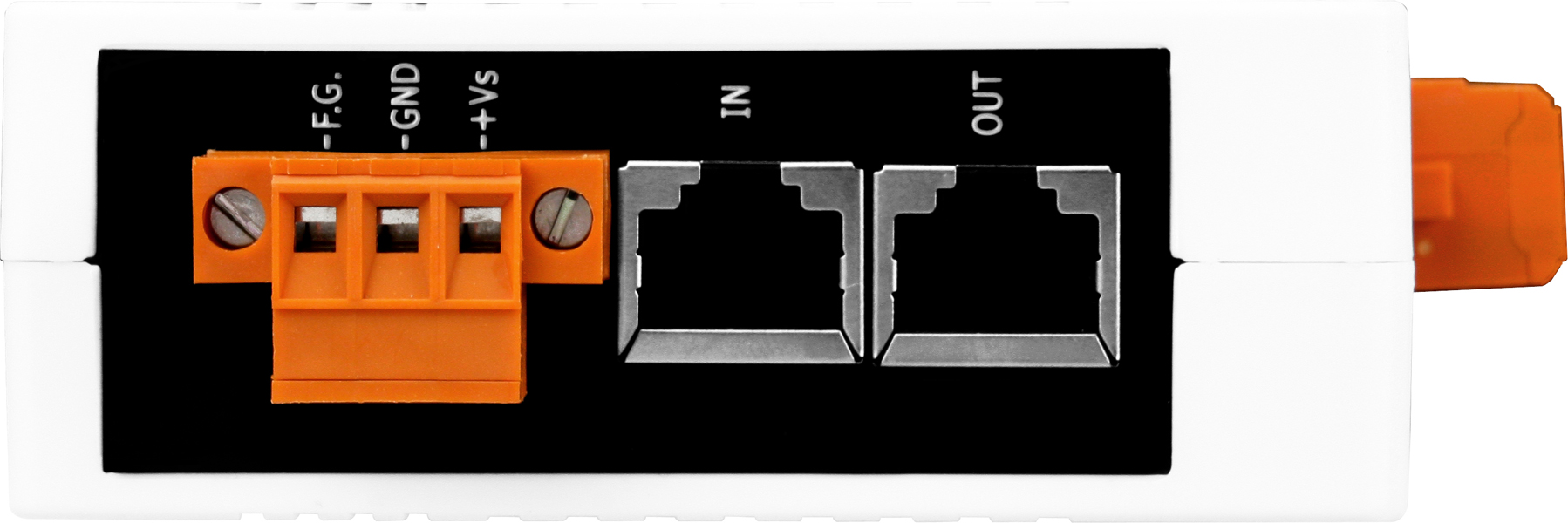

  • 2 x RJ-45 bus interface
  • Distance between Stations up to 100 m (100BASE-TX)
  • Support daisy chain connection
  • EtherCAT conformance test tool verified

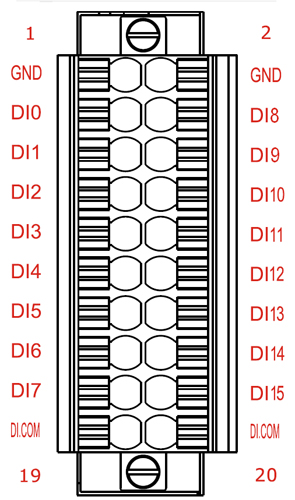

  • Removable terminal block connector

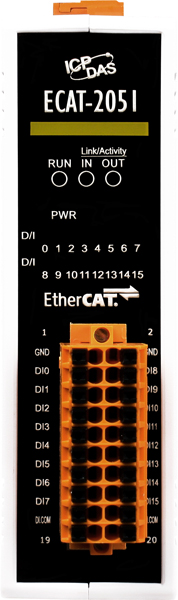

  • LED indicators for the input status
  • Built-In 16 digital inputs
  • RoHS compliant
  • ESD Protection 4 KV Contact for each channel

Specifications

Digital Input
Channels 16
Input Type Dry (Source) Wet (Sink/Source)
Off Voltage Level Open +4V Max.
On Voltage Level Close to GND +10V ~ +50 V
Isolation Voltage 3750 Vrms
Communication Interface
Connector 2 x RJ-25
Protocol EtherCAT
Distance between Stations Max. 100 m (100BASE-TX)
Data Transfer Medium Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Power
Input Voltage Range 10V ~ 30VDC
Power Consumption Max. 4W
Mechanism
Installatin DIN-Rail
Dimensions 110mm x 90mm x 33mm (H x W x D, without connectors)
Case Material UL 94V-0 housing
Environment
Operating Temperature -25°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +176°F)
Relative Humidity 10 ~ 90%, No Condensation
ESD (IEC 61000-4-2) 4 KV Contact for Each Channel
EFT (IEC 61000-4-4) Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5) 1 KV Class A
