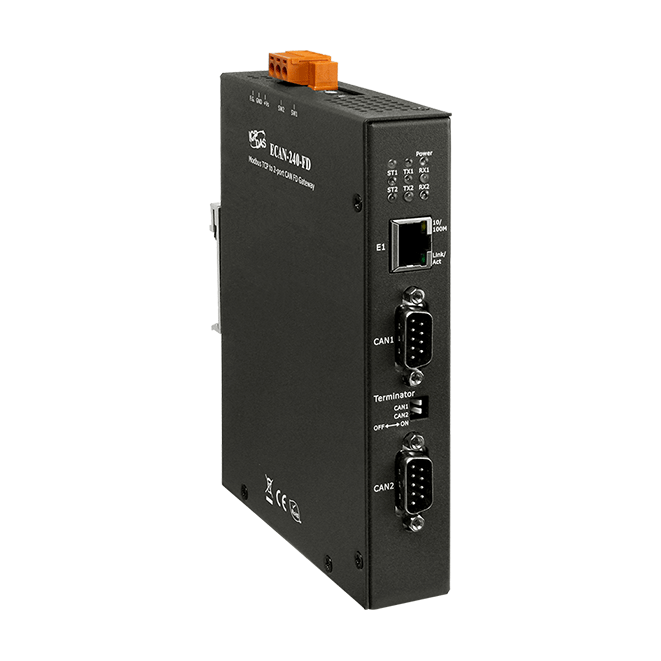

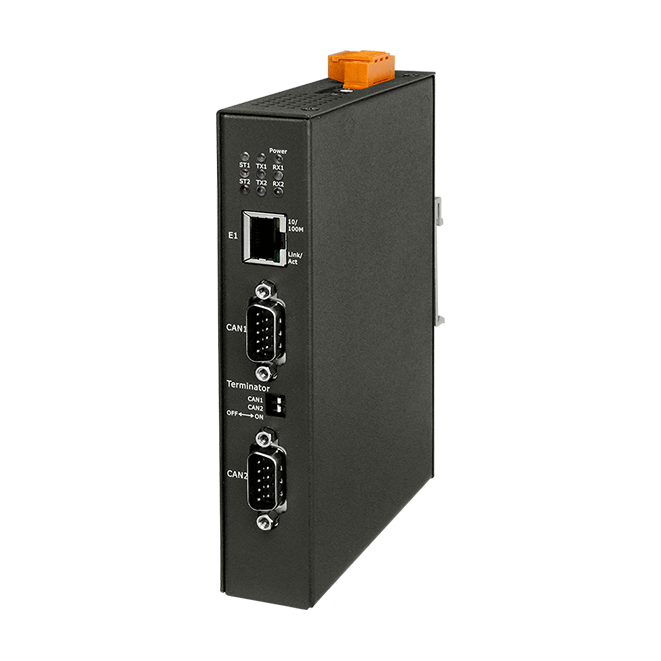

ECAN-240-FD
Modbus TCP to 2-port CAN FD Gateway. Compatible with the ISO 11898-2, CAN specification 2.0 A/B and FD. Has Built-in DIP-switch to enable/disable the terminal resistor.
Features
The ECAN-240-FD module includes two CAN bus interfaces, meaning that more various CAN applications can be supported.
ECAN-240-FD enables integration of CAN devices with IoT networks. The ECAN-240-FD is a Modbus TCP to 2-port CAN FD (CAN with Flexible Data-Rate) Gateway. It communicates over Ethernet with Modbus TCP protocol and has two CAN bus interfaces for connecting to CAN equipment.
Specifications
| LED Indicators | |
|---|---|
| Status | 1 x Power, 3 x CAN1 status, 3 x CAN2 status |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Protocol | Modbus TCP, HTTP, BOOTP, TFTP |
| CAN | |
|---|---|
| Ports | 2 |
| Baud Rate | CAN bit rates: 10 k - 1 M bps, CAN FD bit rates for data field: 100 k - 10M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | DIP switch for the 120 terminal resistor |
| Specification | ISO 11898-2, CAN 2.0 A/B and FD |
| Filter | Yes |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.2 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 122.0 x 160.0 x 28.0 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 - +75 degC |
| Storage Temperature | -30 - +80 degC |
| Humidity | 10 - 90% RH, Non-condensing |
