AC/DC Source Input. High Voltage Input Measurement. Operating Temperature: -25 °C ~ +75 °C


AC/DC Source Input. High Voltage Input Measurement. Operating Temperature: -25 °C ~ +75 °C

  Price:  $599.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

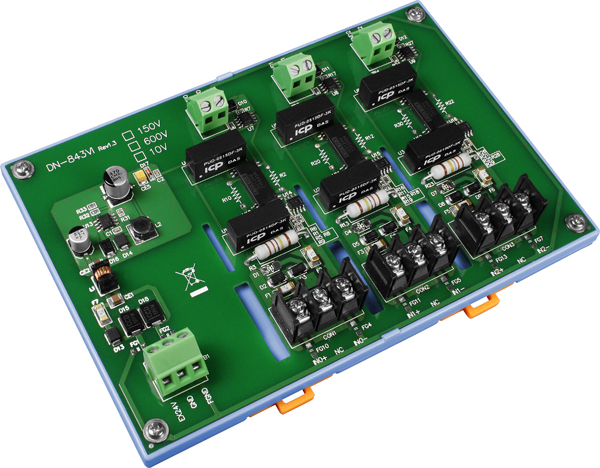

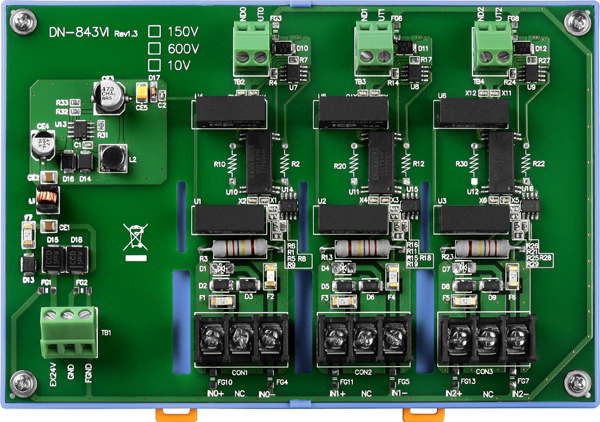

The DN-800V series are voltage input attenuator. The maximum input range is from ±80 V to +/- 600 V and can be attenuated to ±10 V. The "I" version provide 3000VDC intra-modules isolation and 3000VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017 and I-87017 etc. to measure the high voltage.

  • AC/DC Source Input
  • High Voltage Input Measurement
  • Linear Attenuation Ratio
  • High Input Impedance
  • Channel to Channel Isolation for DN-848VI-10V,
    DN-848VI-80V, DN-848VI-150V and DN-843VI-600V
  • Channel to Channel Isolation for DN-848VI-10V,
    DN-848VI-80V and DN-848VI-150V
  • 4 kV ESD Protection
  • 3 kV Surge Protection
  • RoHS Compliance
  • Operating Temperature: -25 °C ~ +75 °C
  • Easily wire connection


Reference & Support

  • Data Sheet
  • Specifications

    Input Type
    AC/DC Voltage
    Input Range
    +/- 600 Vpp
    Output Range
    +/- 10 Vpp
    1% of FSR
    Chanel to Channel Isolation
    100 KHz
    Input Impedance
    > 1 MΩ
    Intra-module Isolation, Input to Output
    EMS Protection
    ESD (IEC 61000-4-2)
    +/- 4 kV contact for power line, input and output channels , +/- 8 kV air for random point
    Surge (IEC 61000-4-5)
    +/- 3 kV for power liner
    Power Input
    Input Range
    +10 ~ +24 VDC
    Power Consumption
    0.56 W
    Dimensions (W x L x H)
    122 mm x 174 mm x 24.5 mm
    DIN-Rail Mounting
    Operating Temperature
    -25 ~ +75 °C
    Storage Temperature
    -30 ~ +75 °C
    10 ~ 90% RH, Non-condensing
