DN-8237GB

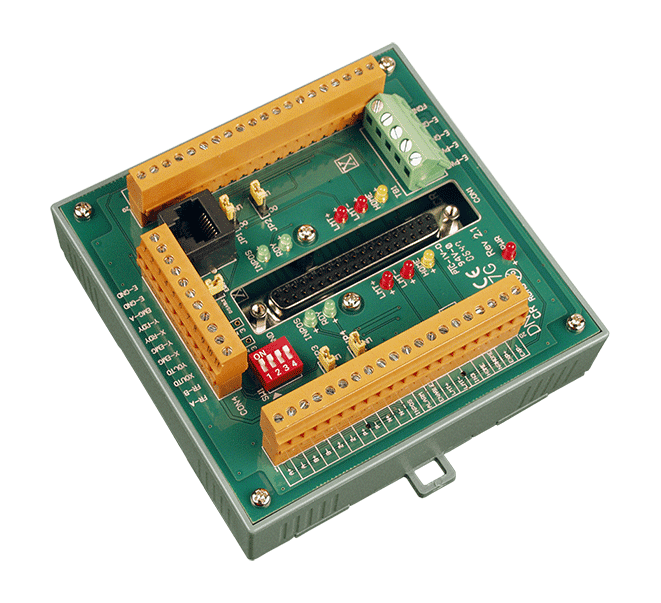

2-axis Stepper/Servo Motion Control Terminal Board, for General Purpose. High Speed Photo-coupling Isolated. Providing FRnet Terminal for High-speed Serial I/O Expansion when the Controller Supports FRnet. Supports Pulse Command Type Step Motors or Servo Motors.
Features
Introduction

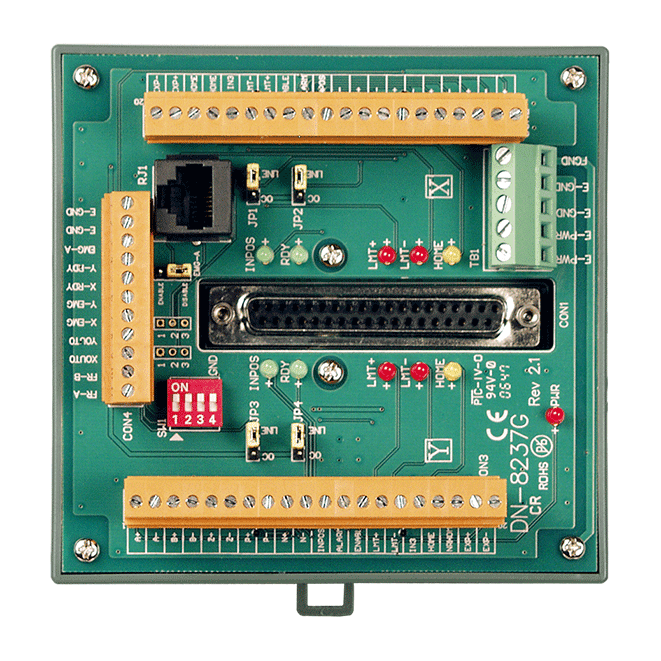

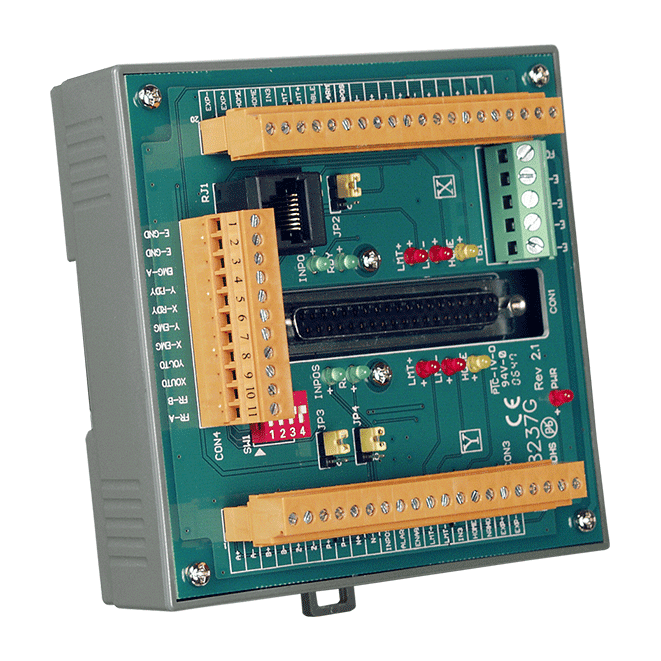

The DN-8237 series is a daughter-board that is designed for ICP DAS’s 2-axis motion controllers, such as I-8092F and PISO-PS200. And they are for different motor drivers, such as general purpose usage, Mitsubishi and Panasonic motor amplifier. It is a not only a screw terminal board for easy connection of signals; it also provides onboard isolating circuitry to protect the controllers. Interface signals are divided into four groups. Each group corresponds to a single axis and contains the necessary pulse output command lines, encoder feedback lines, special purpose inputs (Home, near home, limit -switches) and a servo-enable output. Terminal connectors are used for easy wiring purpose. Users can interchange connectors to interchange each axial definition without laborious rewiring. This board also contains onboard power module which provides different voltages for other onboard circuitry. And this power module accepts wide range input power (20 ~ 26 VDC).
Specifications
| Power | |
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 110 mm x 107 mm |
| Environment | |
| Operating Temperature | -20 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
