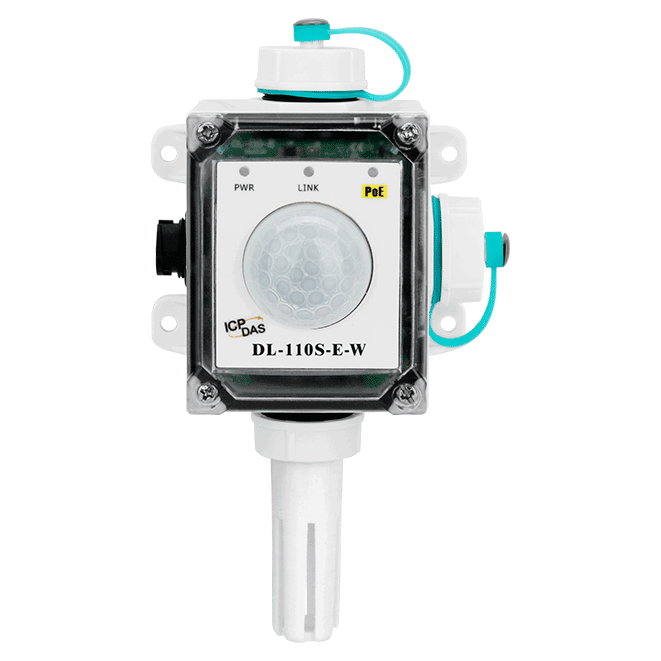

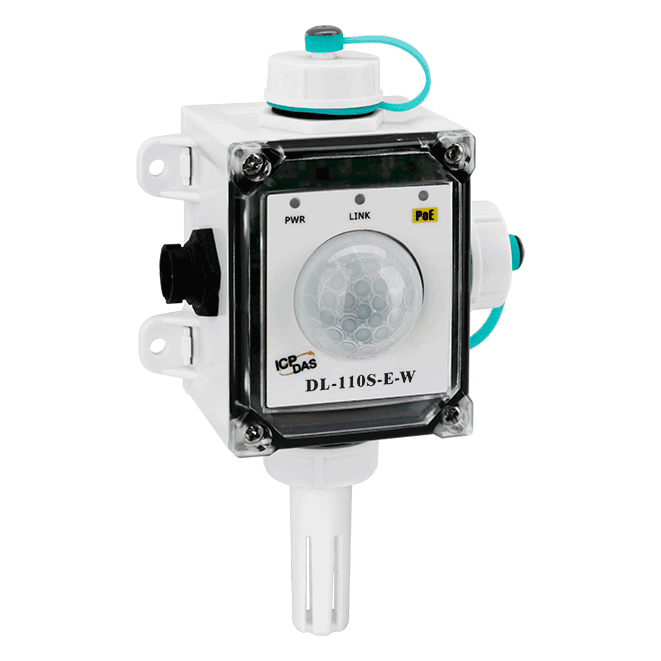

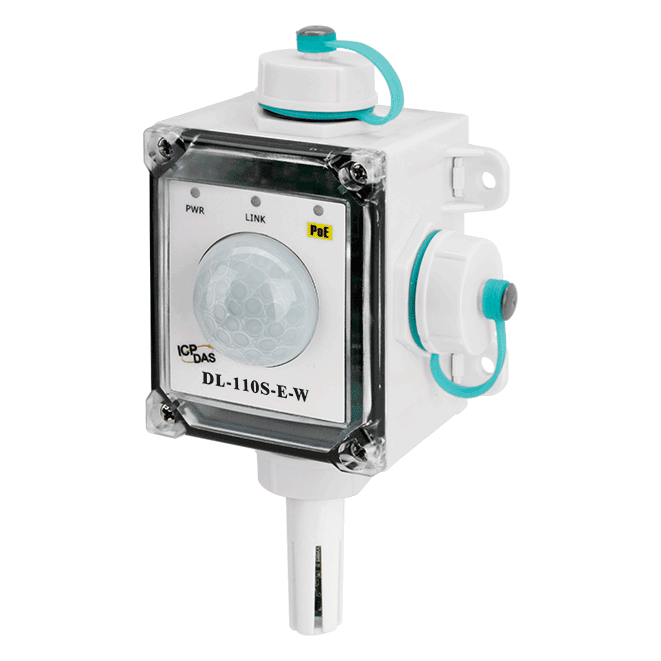

DL-110S-E-W
Data logger device that is used to record IP67 remote illuminance, temperature, humidity, and dew point.
Features
- Illumination Measurement Range: 0 to 100,000 Lux
- Temperature Measurement Range: -20 to +60°C
- Humidity Measurement Range: 0 to 100% RH
- Able to store up to 600,000 records with date and time stamps Free Software Utility, iOS APP and Android App Included
- Supports the DCON, Modbus RTU, Modbus TCP and MQTT Protocols
- Includes RS-485/Ethernet Communication Interfaces
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
- Supports Web Confi guration and Firmware Update via Ethernet
- IP67 Protection Approval
Introduction
The DL-110S-E-W are Data Logger devices that can be used to record illumination, temperature, humidity and dew point data, together with date and time stamp information. Up to 600,000 downloadable records can be stored. Real-time data can be accessed from the DL-110S-E-W device from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger. The DL-110S-E-W supports popular industrial protocols such as DCON, Modbus RTU, Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol – MQTT. The DL-110S-E-W Data Logger can be connected using a variety of communication interfaces, including Ethernet and RS-485, meaning that the device can be easily integrated into existing HMI or SCADA systems, and are easy to maintain in a distributed control system.
- Supports the MQTT protocol for IoT Applications
The MQTT protocol is designed for the effi cient exchange of realtime data between a sensor and a mobile device. It operates via TCP/IP and is in widest use today in machine-to-machine (M2M) and Internet of Things applications.
- Get Real-time Data Anywhere and Anytime
The iAir App is a free and easy to install application for iOS or Android Phones or Tablets, and can be used to obtain real-time data from DL-110S-E-W modules over a Wi-Fi network anytime and anywhere. The iAir App can access a DL-110S-E-W module either by specifying a specific IP address or by searching for all modules connected to the same Ethernet segment.
- Built-in Web Server
The built-in web server provides the ability to easily log in to the DL-110S-E-W module via a standard web browser, allowing users to monitor the data and configure the settings without the need to install any software on the terminal.
- Free and Powerful DL300 Utility
The DL-300 Utility can be used to configure a module and monitor real-time data, as well as display the run chart, log alarm events, or group DL-110S-E-W modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spreadsheet for analysis.
Specifications
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Real Time Clock | Yes |
| Watchdog Timer | Yes, Module (2.3 seconds), Communication |
| LED Indicators | |
|---|---|
| Status | PWR: System indicator (Green) Link: Link/Act indicator (Green) PoE: PoE indicator (Red) |
| Temperature Measurement | |
|---|---|
| Range | -20 ~ +60°C (-31 to +176°F) |
| Resolution | 0.1°C |
| Accuracy | Typical: ±0.4°C |
| Humidity Measurement | |
|---|---|
| Range | 0 ~ 100% RH |
| Resolution | 0.1% RH |
| Accuracy | Typical: ±3% RH @ 20 ~ 80% RH |
| Illuminance Measurement | |
|---|---|
| Range | 0 to 100,000 Lux |
| Resolution | 1 Lux |
| Accuracy | ±5% |
| System | |
|---|---|
| Security | IP filter (whitelist) and Password (web) |
| Data Logger | Yes, 600,000 Records |
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1(Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| PoE | IEEE 802.3af, Class 1 (require a PoE switch or injector) |
| Protocol | Modbus/RTU(RS-485), Modbus TCP(Ethernet) and MQTT(Ethernet) |
| Power | |
|---|---|
| Consumption | PoE: 1.2 W Max. Non-PoE: 1.1 W Max. |
| Powered from PoE | IEEE 802.3af, Class 1 (require a PoE switch or injector) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 100 x 131 x 67 (W x L x H) |
| Installation | DIN-Rail or Wall mounted |
| Ingress Protection Rating | IP67 |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
