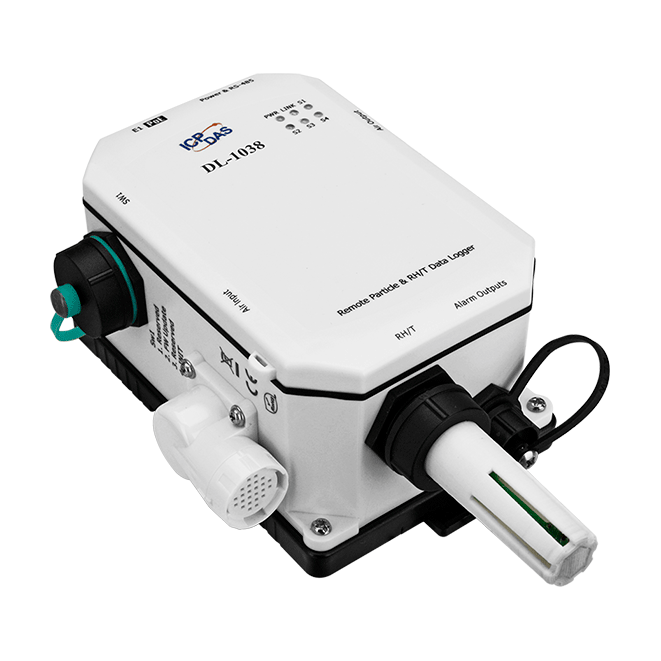

Remote PM1/2.5/10/CO/CO2/TVOC/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 and PoE (RoHS)

DL-1038

Remote PM1/2.5/10/CO/CO2/TVOC/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 and PoE (RoHS)

  Price:  $1,379.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

  • Able to record PM1/2.5/10, CO, CO2, TVOC, Temperature, Humidity, and Dew Point Measurements
  • Electrochemical Sensor
  • Up to 180,000 records with date and time stamps
  • Web-based Configuration Interface
  • Simple and Powerful Software Utility, iOS APP and Android App Included
  • Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
  • Includes RS-485/Ethernet/PoE Communication Interfaces
  • Relay Output for Audible/Visual Alarm or IAQ Device Control
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • IP 43 Protection Approval

Introduction

The DL-1000 is a series of particle and gas measurement module that can measure the concentration of aerosols in the air, such as: PM2.5, PM1, PM10 and the number of particles (0.3µm, 0.5µm, 1µm, 2.5µm, 5µm, 10µm). In addition, various fume concentrations related to human health can also be measured. For example: CO/CO2/HCHO/NH3/H2S/TVOC DL-1000 can record data and send alarm when concentration is too high. It can be used to record PM1/2.5/10, CO, CO2, HCHO, TVOC, NH3, H2S, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 180,000downloadable records. Real-time data can be accessed from the DL-1000 series Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol-MQTT. The DL-1000 series Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system. The DL-1000 series is designed for industrial applications in harsh environments that provides IP43 grade protection approval. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.

Multi-platform Remote Access Software

Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the Data Logger.

DL-102x_Access_Software

Supports the MQTT Protocol for IoT Applications

Protocol_IoT_Applications_DL-102x

Simple and powerful utility

The DL300 Utility can be used to configure the modules, monitor real-time data, group DL-1000 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.

dl-300_utility_software

Replaceable Filter Patch (FLT-C001)

Generally, the PM2.5 measuring sensor on the market is usually installed in outdoor applications. Because the outdoor air is quite dusty, the measuring channel of PM2.5 sensor is easily clogged by aerosol, resulting in continued alarms for the heavy concentration. Due to the error data from the clogged sensor, this module is returned to the factory for repair. Downtime during the repair period often causes significant cost and losses. In order to solve this problem, ICP DAS design the CL-200 series and DL-1000 series with replaceable patch, FLT-C001, which makes it easy for users to replace them without uninstall the devices. Cost of repair and time can be reduced by this innovated mechanical design.

DL-1000-with-filter_20190807

Applications

Intelligent Street Lighting in Smart City

In smart city applications, smart street lights integrate various communication technologies and are no longer illumination only. The high-density construction of streetlights have become one of the most important sources of government collecting road information in recent years. DL-1000 series products, with standard industrial communication protocol Modbus RTU/TCP, can integrate with smart streetlights to achieve outdoor air quality monitoring such as: O3, CO, CO2, SO2, NO2, TVOC, HCHO, and Particle Matter 1/2.5/10. Due to these aerosol could accumulate around the sensor and would cause error record after using for a period, DL-1000 support replaceable dust filter patch to easily change the patches inside the filter hood rather than uninstall the device.

DL-1000Applications2

Outdoor Mobile Air Quality Detection Application

In developed countries, the Air Quality detection, statistics and evaluation is the most for improvement. In a vast area, it can only rely on the vehicle moving to record status of air quality, and to offline extract these and send back sorting out. ICP DAS DL-1000 series can integrate with our 3G/ 4G controllers to transmit data back to control center wirelessly.

DL-1000Applications1

Factory Gas Detection Application

In some factories, H2S is one of the harmful gases. Due to the colorless and odorless are two characteristics quite hard to find or feel it, sometimes the workers inside the factory get injured inevitably. Joint liability from the injury brings the company a massive fines.

DL-1026 H2S detector module can put in the spot. It equip with standard industrial protocols and with high flexible to integrate information from devices and transmit back to control center. When the concentration of gas is too high, DL-1026 can also send alarm signals to inform relative person to evacuate people there.

DL-1000Applications3

Specifications

CPU Module
Real Time Clock Yes
Watchdog Timer Yes, Module (2.3 sec), Communication (Programmable)
System
Security IP filter (whitelist) and Password (web)
LED Indicators
Status PWR: Green for normal operation
Link: Green for the Ethernet-linked
S1 ~ S4: Red for an alarm condition
Temperature Measurement
Range -10 ~ +50°C
Resolution 0.1°C
Accuracy ±0.6°C
Humidity Measurement
Range 0 ~ 100% RH
Resolution 0.1% RH
Accuracy ±5% RH
Life Time 10 years
Dew Point
Range Calculated using temperature and relative humidity
Resolution 0.1°C
CO Measurement
Range 0 ~ 1000 ppm (Electrochemical)
Resolution 1 ppm
Accuracy ±5% of measured value
Response Time 30 seconds
Warm-up Time 60 seconds
Life Time 5 years
CO2 Measurement
Range 0 to 9999 ppm (NDIR)
Resolution 1 ppm
Accuracy ±30 ppm ±3% of measured value
Response Time 120 seconds
Warm-up Time 300 seconds
Life Time 15 years
TVOC Measurement
Range 0 ppb to 60000 ppb (MEMS Metal Oxide)
Resolution 1 ppb
Accuracy ±15%
Response Time 60 seconds
Warm-up Time 180 seconds
Life Time 5 years
PM1/PM2.5/PM10 Measurement
Range 0 to 1,000µg/m3 ( Laser Type)
Resolution 1µg/m3
Accuracy ± 10% of FSR.
Response Time 1 second
Warm-up Time 20 seconds
Life Time 5 years, Customer has to replace the filter patch.
Particle
Sizes 0.3µm, 0.5µm,,1µm, 2.5µm,,5µm, 10µm
Life Time 5 years, Customer has to replace the filter patch.
System
Alarm PM1/PM2.5/PM10
/RH/Temperature/ Real Time Clock
Real Time Clock Yes
Data Logger Yes, up to 180,000 records
PhotoMOS Relay Output PhotoMos Relay × 4, 100 VDC @ 1 A
COM Ports
Baud Rate 1200 ~ 115200 bps
Protocol Modbus/RTU(RS-485), Modbus TCP(Ethernet) and MQTT(Ethernet)
Ethernet
Ports 10/100 Base-TX, 8-Pin RJ-45 x1(Auto-negotiating, Auto-MDI/MDIX, LED indicators)
Power
Consumption PoE: 3.2 W (Max.)
Non-PoE: 3.0 W (Max.)
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Powered from Terminal Block +12 ~+48 VDC
Mechanical
Dimensions (mm) 130 x 210 x 70 (W x L x H)
Installation DIN-Rail or Wall Mounting
Ingress Protection Rating IP43
Environmental
Operating Temperature -20 ~ +50°C
Storage Temperature -30 ~ +75°C
Humidity 10 ~ 90% RH, Non-condensing
