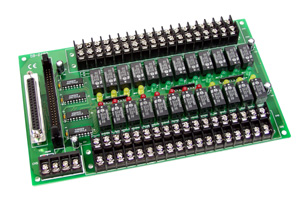

24-Channel Relay Output Board.  DB-24R/D with D-Sub 37 connector.  DB-24PR with Power Relay Board.  Available in 12V or 24V

DB-24R/24 (24V)

24-Channel Relay Output Board. DB-24R/D with D-Sub 37 connector. DB-24PR with Power Relay Board. Available in 12V or 24V

  Price:  $319.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The DB-24R consists of 24 form C, electromechanical relays for efficient switching of load by programmed control. The contact of each relay can control a 0.5 A /110 V load or 1A / 24VDC. The relay is energized by applying a 5 voltage signal to the appropriate relay channel on the 50-pin Opto-22 compatible connector or D-Sub 37 connector . Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated . This board needs a +12VDC or +24VDC external power supply to avoid overloading your PC’s power supply.
  • 24 Form C Relays (SPDT)
  • SPST: Single Pole Double Throw
  • OPTO-22 Compatible Connector
  • Connects directly to:
    • DIO-24
    • DIO-48
    • DIO-144
    • OPTO-22 compatible board or any 722 or 724 series board
  • Switch up to 0.5A at 120 VAC
  • Switch up to 1A at 24VDC
  • On board relay driver circuits
  • LEDs indicated relay status
  • Screw terminals for easy field wiring
  • Applications:
    • On/off control
    • Energy management
    • Test Automation
    • Process Control

Specifications

  • FORM C RELAY
  • Type : 1 form C
  • Nominal load : 0.5 A /120 VAC, 1A /24 VDC
  • Max. Switching power : 60VA, 24W
  • Max. Switching Voltage : 120VAC, 60VDC
  • Max. Switching Current : 1A
  • Life Expectancy :
  • Mechanical ( 2 x 10 )
  • Electrical ( 2 x 10 )
  • Time Value : Operate ( 6 ms )
  • Control Logic : Input TTL high (+5V) , relay on
  • Power Consumption : +12V @0.3A max , +5V @ 0.18A max
  • Dimensions : 225mm x 132mm
  • Operating Temperature : 0° - 60°C
  • Storage Temperature : -20°C - 70°C
  • Humidity : 5% to 90% noncondensing
