4 Channel Current Output and Voltage Output, Analog Output DeviceNet Slave Data Acquisition Module with 14 bit resolution.  Output types include 0~ 5 V, +/- 5 V, 0~ 10 V, +/- 10 V, 0 ~ 20 mA, 4 ~ 20 mA.  Analog output status and configurations are set via DeviceNet EDS file.

CAN-2024D

4 Channel Current Output and Voltage Output, Analog Output DeviceNet Slave Data Acquisition Module with 14 bit resolution. Output types include 0~ 5 V, +/- 5 V, 0~ 10 V, +/- 10 V, 0 ~ 20 mA, 4 ~ 20 mA. Analog output status and configurations are set via DeviceNet EDS file.

  Price:  $689.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

CAN2024dDeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

The CAN-2024D follows DeviceNet specification Volume I/II, Release 2.0. User can access the analog output status and set the configuration via DeviceNet EDS file. CAN-2024D has 4-channel 14-bit analog output and it can be used to various applications. By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.

Applications

application 2

Specifications

DeviceNet Interface
DeviceNet Specification
Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
DeviceNet subscribe
Group 2 Only Server
Connection supported
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
Baud Rate
  Setting by Rotary Switch
125 kbps, 250 kbps, 500 kbps
Node ID
  Setting by Rotary Switch
0 ~ 63
Heartbeat message
Yes
Shutdown message
Yes
Terminator Resistor
Switch for 120 Ω terminator resistor

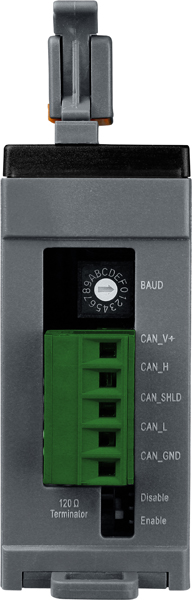

Connector
5-pin screwed terminal block
(CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
EDS file
Yes
LED
PWR/NET/MOD

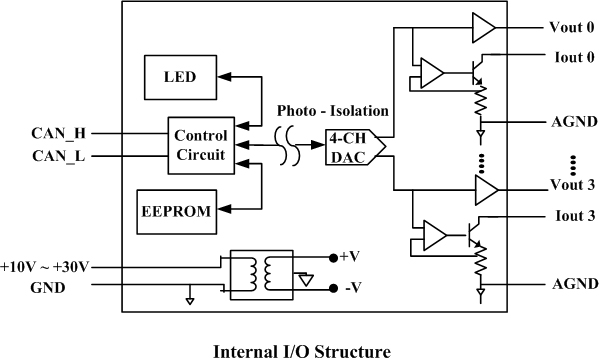

Analog Output
Channels
4
Output Type
0~ 5 V, +/- 5 V, 0~ 10 V, +/- 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Resolution
14-bit
Accuracy
+/- 0.1 % of FSR for voltage output ; +/- 0.2 % of FSR for current output
Zero Drift
Voltage: +/-30μV/°C
Current: +/-0.2μV/°C
Span Drift
+/-20ppm/°C
Voltage Output Capability
10V@5mA
Max Current Load Resistance
External +24 V : 1050 Ohms
Power-Up and Safe Value
Yes
4KV ESD Protection
Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic
3000 VDC
LED
DeviceNet Status
3 LEDs for PWR/NET/MOD
Terminal Resister
1 LED as terminal resister indicators
AO LED
8 LEDs as analog output indicators
Power
Power Supply
Unregulated +10 ~ +30 VDC
Power Consumption
1.5 W
Mechanism
Installation
DIN-Rail
Dimensions
32.3 mm x 99 mm x 77.5 mm ( W x L x H )
Environment
Operating Temp.
-25 ~ 75 ℃
Storage Temp.
-30 ~ 80 ℃
Humidity
10 ~ 90% RH, non-condensing
