CANopen Slave Module of 10-channel Universal Analog Input (Current Input).  3 LEDs to PWR, RUN and ERR.  1.5 W Power consumption. Has operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F)

CAN-2019C

CANopen Slave Module of 10-channel Universal Analog Input (Current Input). 3 LEDs to PWR, RUN and ERR. 1.5 W Power consumption. Has operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F)

  Price:  $679.00

Features

Following the DS-301 version 4.02 and DSP-401 version 2.1, the CAN-2019C module allows access to thermocouple input status and configuration settings through standard CANopen protocol. CAN-2019C has passed the validation of the CiA CANopen Conformance Test tool. This device can be used with standard CANopen master through use of the EDS file.

The CAN-2019C is a 10-channel universal analog input CANopen slave module that has voltage and current input types. It provides extremely accurate thermocouple measurement and automatic cold-junction compensation for each channel.

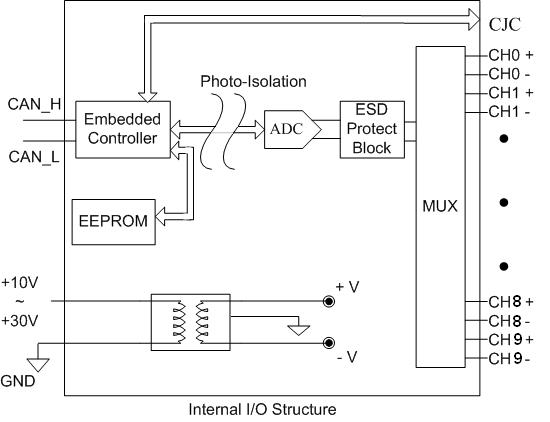

Specifications

CANopen Interface
Connector
5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
Baud Rate (bps)
10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M, selected by rotary switch
Terminator Resitor
DIP switch for the 120 Ω terminator resistor
Protocol
CANopen CiA 301 ver4.02, CiA 401 ver2.1
Node ID
1~99 selected by rotary switch
NMT
Slave
Error Control
Node Guarding protocol / Heartbeat Producer
SDOs
1 server, 0 client
PDOs
10 RxPDO, 10 TxPDO (Supports dynamic PDO)
PDO Modes
Event-triggered, remotely-requested, synchronous (cyclic), synchronous (acyclic)
Emergency Message
Yes
EDS file
Yes
Analog Input
Channels
10 (Differential)
Input Type
+/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V, +/- 5V, +/- 10V
+/-20mA,(Requires Optional External 125 Ohm Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C)
Resolution
16-bit
Sampling Rate
10 Samples/Sec. (Total)
Accuracy
+/-0.1% FSR
Zero Drift
+/- 10 μV/ °C
Span Drift
+/- 25 ppm/ °C
Common Mode Rejection
86 dB
Normal Mode Rejection
100 dB
Input Impedance
>400 kΩ
Individual Channel Configuration
Yes
Open Thermocouple Detection
Yes
Over voltage Protection
240 Vrms
ESD Protection
+/-4kV, Contact for each terminal.
Intra-module Isolation, Field to Logic
3000 VDC
LED
CANopen Status
3 LEDs to PWR, RUN and ERR
Power
Power Supply
Unregulated +10 ~ +30 VDC
Dimensions
1.5 W
Mechanism
Installation
DIN-Rail
Dimensions
33 mm x 99 mm x 78 mm (W x L x)
Environment
Operating Temp.
-25°C ~ +75°C (-13°F ~ +167°F)
Storage Temp.
-30°C ~ +80°C (-22°F ~ +176°F)
Humidity
10 ~ 90% RH, non-condensing



Type Code
Temperature Range (°C)
J
-210 °C ~ +1200 °C
K
-270 °C ~ +1372 °C
T
-270 °C ~ +400 °C
E
-270 °C ~ +1000 °C
R
-50 °C ~ +1765 °C
S
-50 °C ~ +1765 °C
B
0 °C ~ +1820 °C
N
-270 °C ~ +1300 °C
C
0 °C ~ +2320 °C
