2 Km External Antenna for SST-2450 and Zigbee Devices (Omnidirectional), 1.4Km@22dBm(LOS)(ZB-2000-PA), 450m@13dBm(LOS)(SST-2450). Supports operating temperatures from -20°C ~ 60°C

ANT-8

write a review write a review

2 Km External Antenna for SST-2450 and Zigbee Devices (Omnidirectional), 1.4Km@22dBm(LOS)(ZB-2000-PA), 450m@13dBm(LOS)(SST-2450). Supports operating temperatures from -20°C ~ 60°C

  Price:  $389.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK
Send Email with Product Info
Write a Review Write a Review Email Us
References and Support Add to Quote

References & Support

Features

Electrical Specification

Frequency 2.4 ~ 2.5 GHz
Polarization Linear
V.S.W.R. 1 : 1.3 (Max.)
Impedance 50 Ohms ±5Ω
Gain 8 dBi
Power handling 15W (Max.)
Front to back ratio N/A
HPBW / horizontal 360°
HPBW / vertical 10°
Rated Wind 3.0 lbs. (1.4 kg)
Operating Temperature -20°C ~ 60°C

Mechanical Specification

Connector Type SMA Male
Cable RG-58, 100 cm
Mounting Guide (JPG format 747 KB)

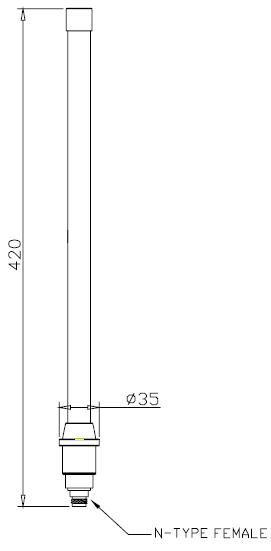

Length φ35 x 420mm
Weight 430 g
Radome color white
Radome material glass fiber



Applications:


Usage Diagram





SST-2450 with ANT-8

Specifications

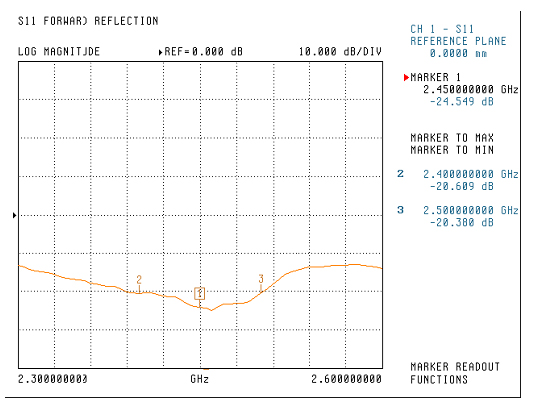

ANT-8 S11

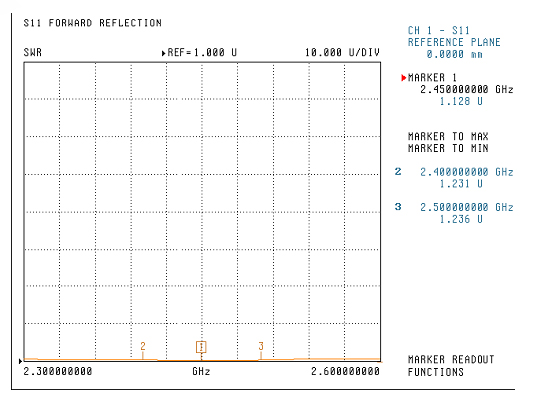

ANT-S11_2

Gain Pattern:


E-Plane Field Patterns





H-Plane Field Patterns
