The A-822PGL/S has officially been phased out and will no longer be available. The suggested replacement is PCI-822LU

125KS/s 16 Channel 12 bit Analog Input, 2 Channel uni-polar/bi-polar 12 bit Analog Output with 16 Digital Input/16 Digital Output. (Low Grain). Includes Daughter Board DB-8225. Includes one CA-4002 D-Sub Connector." />

> Data Acquisition > PCI / ISA Data Acquisition Boards > ISA Data Acquisition Boards > ISA Data Acquisition Boards > A-822PGL/S

> Data Acquisition > PC Boards > DAQ Boards > ISA Multi-function > A-822PGL/S

<p id=''phasedOut'' align=''center'' style=''color:red; font-weight:bold;''> The <b> A-822PGL/S </b> has officially been phased out and will no longer be available. The suggested replacement is <a href=''/pci_822lu.html''><b>PCI-822LU</b></a></p> 125KS/s 16 Channel 12 bit Analog Input, 2 Channel uni-polar/bi-polar 12 bit Analog Output with 16 Digital Input/16 Digital Output. (Low Grain). Includes Daughter Board DB-8225. Includes one CA-4002 D-Sub Connector.

A-822PGL/S

write a review write a review

The A-822PGL/S has officially been phased out and will no longer be available. The suggested replacement is PCI-822LU

125KS/s 16 Channel 12 bit Analog Input, 2 Channel uni-polar/bi-polar 12 bit Analog Output with 16 Digital Input/16 Digital Output. (Low Grain). Includes Daughter Board DB-8225. Includes one CA-4002 D-Sub Connector.

    Item Not Available

Write a Review Write a Review Email Us
References and Support Add to Quote

Features

The A-822PGL/S has officially been phased out and will no longer be available. The suggested replacement is PCI-822LU

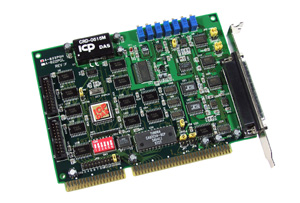

A-822PGH/L is a 12-bit multifunction analog and digital I/O board for PC/AT compatible computers. A-822PGH/L offers 16 single-ended or 8 differential analog inputs and two channels of analog output with 12-bit resolution. A-822PGH/PGL has 16 digital input, 16 digital output, and one timer/counter channel. A-822PGH provides gains of 0.5, 1, 5, 10, 50, 100, 500, and 1000 while A-822PGL provides gains of 0.5, 1, 2, 4, and 8. Maximum sampling rate is 125 K samples/s. DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.

  • 12-bit A/D converter
  • 12-bit D/A converter
  • 16 single-ended or 8 differential input channels
  • 125 k/s sampling rate
  • Two 12-bit analog output channel
  • Analog Output Range : 0 ~5V, 0 ~10V
  • Software programmable gain :
  • A-822PGL (Low Gain Version ) : 0.5, 1, 2, 4, 8
  • A-822PGH(High Gain Version) : 0.5, 1, 5, 10, 50, 100, 500, 1000
  • Interrupt handling
  • A/D Trigger modes :
    • Software Trigger
    • Pacer Trigge
    • , External Trigger
    • Event Trigger
  • A/D data transfer modes : polling , interrupt , DMA
  • 16 digital input & 16 digital output
  • 37 pin D-Sub connector
  • Software:
    • Toolkit for DOS
    • Toolkit for Windows 95/98
    • Toolkit for Windows NT
    • Toolkit for Windows 2000/XP
    • Toolkit for Labview 95/98
    • Toolkit for Labview NT
    • Toolkit for Labview 2000/XP
    • ActiveX Control (OCX) 95/98
    • ActiveX Control (OCX) NT
    • ActiveX Control (OCX) 2000/XP
    • Toolkit for LINUX
    • Toolkit for DasyLab
  • Applications:
    • Signal analysis
    • Industrial automation
    • Laboratory automation
    • Sensor interface
    • FFT & frequency analysis
    • Transient analysis
    • Production tests
    • Process control



Specifications

Analog Input
Channels 16 single-ended/8 differential
A/D Converter 12-bit, 8 μs conversion time
Sampling Rate 125 kS/s. max.
Over voltage Protection Continuous +/-35 Vp-p
Input Impedance 10 MΩ/6 pf
Trigger Modes Software, Pacer, External
Data Transfer Polling, Interrupt, DMA
Accuracy 0.01 bit % of FSR ±1 LSB @ 25 °C, ± 10 V
Zero Drift 15 ppm/°C of FSR
Analog Output
Channels 2 independent
Resolution 12-bit
Accuracy 0.01% of FSR ± 1 LSB @ 25 °C, ± 10 V
Output Range Unipolar: 0 ~ 5 V, 0 ~10 V
Bipolar: +/-10 V
Output Driving +/- 5 mA
Slew Rate 0.6 V/μs
Output Impedance 0.1 Ω max.
Operating Mode Software
Digital Input
Channels 16
Compatibility 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 1.0 MHz (Typical)
Digital Output
Channels 16
Compatibility 5 V/TTL
Output Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability Sink: 0.8 mA @ 0.8 V
Source: -2.4 mA @ 2.0 V
Response Speed 1.0 MHz (Typical)
Timer/Counter
Channels 3 independent
Resolution 16-bit
Compatibility 5 V/TTL
Input Frequency 10 MHz max.
Reference Clock Internal: 2 MHz
General
Bus Type ISA
I/O Connector Female DB37 x 1
20-pin box header x 2
Dimensions (L x W x D) 163 mm x 124 mm x 22 mm
Power Consumption 960 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing

Analog Input Range
Model A-822PGL (Low-Gain)
Gain 0.5 1 2 4 8
Unipolar (V)   0 ~ 10 0 ~ 5 0 ~ 2.5 0 ~ 1.25
Bipolar (V) +/- 10 +/- 5 +/- 2.5 +/- 1.25 +/- 0.625
Sampling Rate Max. 125 kS/s 125 kS/s 125 kS/s 125 kS/s 125 kS/s
Model A-822PGH (High-Gain)
Gain 0.5 1 5 10 50 100 500 1000
Unipolar (V)   0 ~ 10   0 ~ 1   0 ~ 0.1   0 ~ 0.01
Bipolar (V) +/- 10 +/- 5 +/- 1 +/- 0.5 +/- 0.1 +/- 0.05 +/- 0.01 +/- 0.005
Sampling Rate Max. 125 kS/s 125 kS/s 80 kS/s 80 kS/s 10 kS/s 10 kS/s 1 kS/s 1 kS/s
