ZB-2551P

*** The ZB-2551P has been phased out and replaced by the ZB-2551-PA which meets CE and FCC certifications ***

The ZB-2550P/ZB-2551P is a RS-485/RS-232 to ZigBee Network converter. It enables RS-232/RS-485 devices to be wirelessly and easily connected to a new or existing system. The ZB-2550P is net Host and the ZB-2551P is net Slave. It also supports various data formats and Baud Rates that can be configured via a Windows-based GUI utility. The ZB-2550P and the ZB-2551P can implement an ad-hoc, star or mesh network topology.

In some existing systems that use a RS-485/RS-232 network, it is sometimes difficult to extend the new devices due to building structure issues, wiring problems or other reasons. The ZB-2550P and the ZB-2551P can be easily added to an existing system in order to extend your network.

The typical transmission range of the ZB-2550/ZB-2551 converter is 100 m, and the ZB-2550P/ZB-2551P is 700 m.

• ISM 2.4 GHz operating frequency
• Fully compliant 2.4G IEEE802.15.4 / ZigBee specifications.
• Wireless transmission range up to
  • 700 m (Line of sight, typical)
  • 1km (Line of sight, max)

• GUI configuration software (Windows version). Software Download
• DIN-Rail mount.
• Operation Mode:

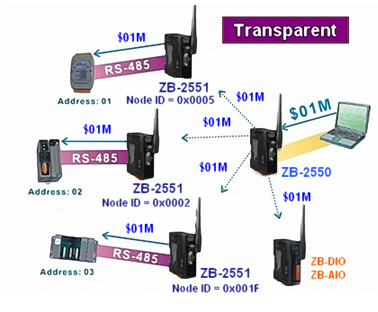

  • Transparent: (Original data will be broken down into many small data, each small data is 50 Byte)

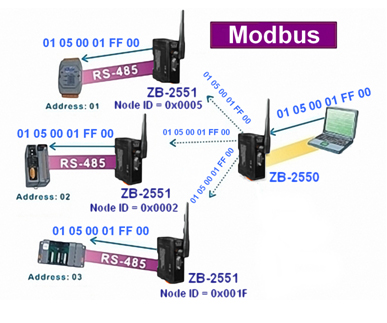

  • Modbus: (Original data won't be broken down into small data)

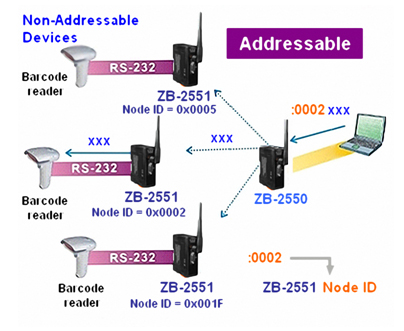

  • Addressable: (Original data won't be broken down into small data)


• Applications:

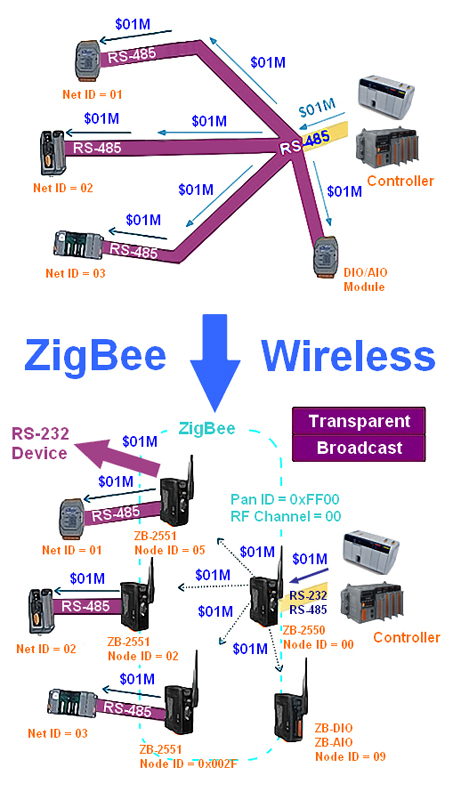

  • Wireless Transparent Broadcast

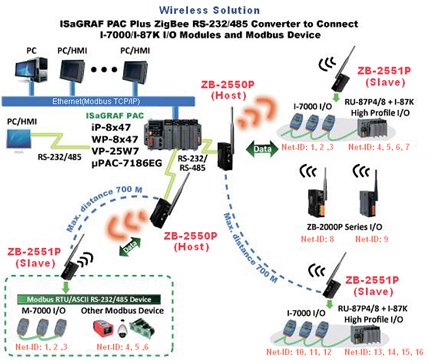

  • Wireless Solution:
