ZB-2052-PA

> Data Acquisition > Remote I/O Modules > Wireless Zigbee I/O > Zigbee I/O > ZB-2052-PA
> Industrial Wireless Products > Industrial Wireless ZigBee > Zigbee I/O > ZB-2052-PA

E-mail this Product

Product Reference & Support

Zigbee Wireless 8-ch Isolated Digital Input Module with 16-bit Counters, Modbus RTU, communication distance up to 700 meters

ZB-2052-PA: $339.00

Please Call 1-888-971-9888 for Volume discount pricing!

Features

Introduction

ZB Application The ZB-2052-T offers 8-ch for digital input, each of which features photo couple isolation. Moreover, you can choose sink type or source type input by wire connections. All channels are able to be used as 16-bit counters. ZB-2052-T not only has 8 LED indicators for channel status but also get qualifi cation for 4 kV ESD protection and 3000 VDC intra-module isolation. Users can be easy to confi gure the module address, Protocol, Checksum, ZB-PID and ZB-ch by rotary and DIP switch.

Features

ISM 2.4 GHz Operating Frequency
Fully Compliant 2.4 G IEEE802.15.4/ZigBee Specifi cations
Wireless Transmission Range up to 700 m (ZB-2550P/ZB-2570P)
Wireless Transmission Range up to 100 M (ZB-2550/ZB-2570)
GUI Confi guration Software (Windows Version)

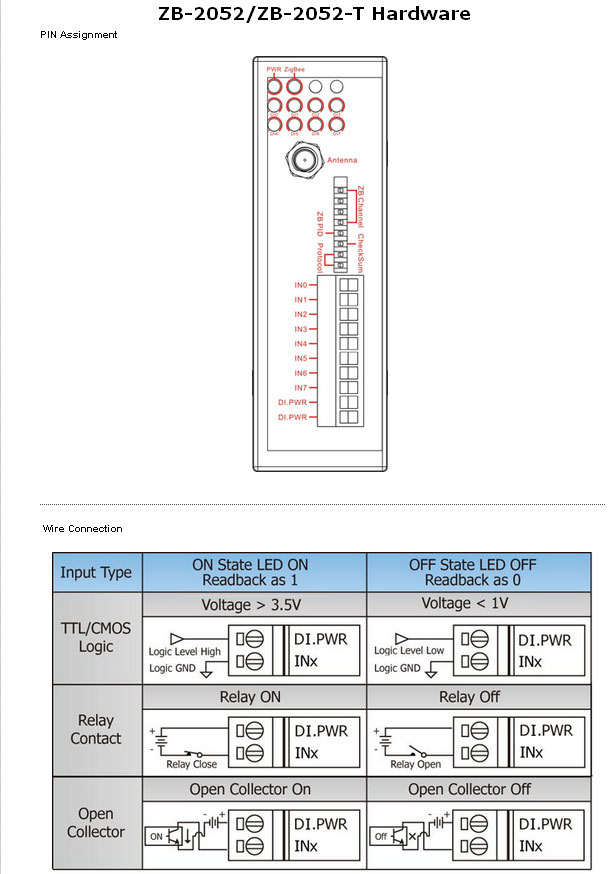

8 Digital Input for Wet Contact
Supports 16-bit Counters for Digital Inputs
Surge and ESD Protection
DIN-Rail Mount

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis, Testing Equipment.

Specifications & Additional Information

Digital Input
Input Channel	8
Wet Contact (Sink/Source)	On Voltage Level: +3.5 VDC ~ +30 VDC
Wet Contact (Sink/Source)	Off Voltage Level: +1 VDC ma
Input Impedance	3 kΩ, 0.33 W
Counter	Channels: 8
	Max. Counts: 16-bit (65535)
	Max. Input Frequency: 100 Hz
	Min. Pulse Width: 5 ms
Intra-module Isolated, Field to Logic	3750 Vrms
ESD Protection	+/-4 kV (Contact for each channel)
Communication Interface
Wireless	ZigBee, IEEE 802.15.4 Standard
Antenna	2.4 GHz-3 dBi Omni-Directional antenna
Protocols	Supports DCON and Modbus RTU Protocols
Hot Swap	By Rotary and DIP switch
LED Indicators
Power	1 LED, red
ZigBee Communication	1 LED, green
Digital Input	8 LEDs, green
Power
Transmission Power	22dBm
Power Consumption	2.5 W max.
Mechanical
Flammability	Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x L x H)	33 mm x 87 mm x 107 mm
Installation	DIN-Rail
Environment
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-30 °C ~ +80 °C
Humidity	10 ~ 90% RH, non-condensing
