XW304

> Programmable Automation Controllers > Micro PAC > uPAC I/O Expansion Boards > XW304
envelopeE-mail this Product
Product Reference & Support

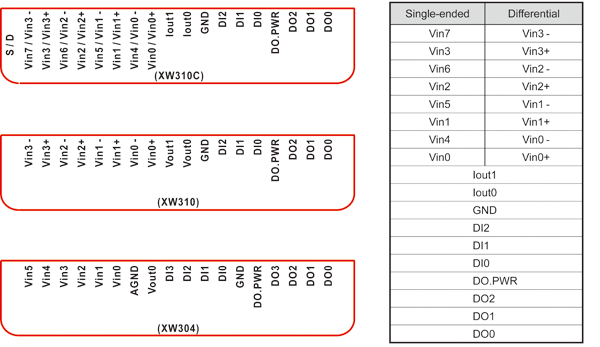

  • PIN Assignment

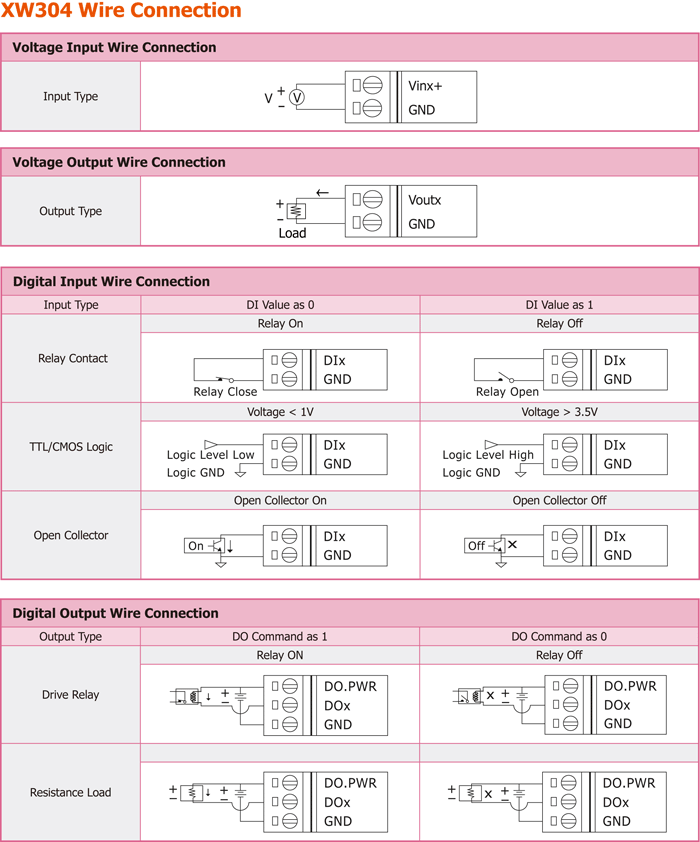

  • Wire Diagram


    • RoHS
    I/O Expansion Board with 6 A/D channels(+/- 5 V or 0 ~ 5 V), 1 D/A channel (+/- 5 V), 4-DO channels, and 4 DI channels
    XW304: $219.00  add to cart
    Please Call 1-888-971-9888 for Volume discount pricing!
    Features
    Specifications & Additional Information
    Analog Input
    Channel 6
    Wiring Single-Ended
    Range +/- 5 V, 0 ~ +5 V
    Resolution 12-bit
    Sampling Rate 4 KHz
    Input Impedance 1 M Ohm
    Over voltage Protection +/- 30 VDC
    Isolation non-isolated
    Analog Output
    Channel 1
    Range +/- 5 V
    Resolution 12-bit
    Output Capacity 20 mA
    Isolation non-isolated
    Digital Input
    Input Channels 4
    Contact Dry
    Dry Contact On Voltage Level Close to GND
    Off Voltage Level Open
    Overvoltage Protection 30 VDC
    Digital Output
    Channel 4
    Type Open Collector
    Sink/Source (NPN/PNP) Sink
    Load Voltage +10 VDC ~ 40 VDC
    Max. Load Current 200 mA/channel at 25 °C
    Overload Protection 1.4 A
    Power Requirements
    Consumption 0.2 mW Max.
    Environment
    Operating Temperature -25 °C ~ +75 °C
    Storage Temperature -30 °C ~ +75 °C
    Humidity 10 ~ 95% RH, Non-condensing
    Related Products
    uPAC-5001
    MiniOS7 based C Language Programmable Ethernet uPAC with Rich Expansion Ability and 80 Mhz CPU

    More Info    		 uPAC-5002
    MiniOS7 based Ethernet uPAC with Rich Expansion Ability with 768KB SRAM with 80 Mhz CPU

    More Info    		 uPAC-5207
    Advanced Expandable Ethernet ISaGRAF IEC-61131 Palm-Size PAC with GPRS

    More Info    		 WP-5141-XW-107
    Standard WP-5000 Controller (2-port Ethernet, 1-port VGA, 2-port RS-232/485) with XW-107 Expansion board (8 Digital Inputs, 8 Digital Outputs)

    More Info
    uPAC-5002P
    MiniOS7 based PoE uPAC with 768k SRAM

    More Info    		 uPAC-5001PD
    MiniOS7 based PoE uPAC with 512k SRAM and with display

    More Info    		 uPAC-5002-FD
    MiniOS7 based Ethernet uPAC

    More Info    		 WP-5441
    Standard WinPAC-5000 with Audio (English Version of OS)

    More Info
