Windows CE 7.0 Professional, Cortex-A8, 1GHz CPU, 256MB Flash, 512MB DDR3 SDRAM, 1024, 768 VGA, 2 Ethernet and 4 Serial Ports, and 4 slots. Operating Temperature: -25 ~ +75°C

WP-9421-CE7

Windows CE 7.0 Professional, Cortex-A8, 1GHz CPU, 256MB Flash, 512MB DDR3 SDRAM, 1024, 768 VGA, 2 Ethernet and 4 Serial Ports, and 4 slots. Operating Temperature: -25 ~ +75°C

  Price:  $3,099.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The WP-9421-CE7 is the new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-9421-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 2/4/8 expansion I/O slots that can be used to integrate high performance I-9K (parallel-type) and I-97K (serial-type) series I/O modules.

Its operating system,Windows CE 7.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 7.0 in the WP-9421-CE7 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Visual C++, SCADA software, Soft PLC …etc.

  • Cortex-A8, 1GHz CPU
  • 512 MB DDR3 and 256 MB Flash
  • Windows CE 7.0 Professional
  • Hard Real-Time Capability
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Slots
  • 2 10/100/1000M Ethernet Ports
  • 4 Serial Ports (RS-232/485)
  • Operating Temperature: -25 ~ +75°C

Windows CE7

Application Image wp-9000-ce7
  • Support PC based software: Visual Studio.NET
  • Web server, FTP server, Telnet server

Applications

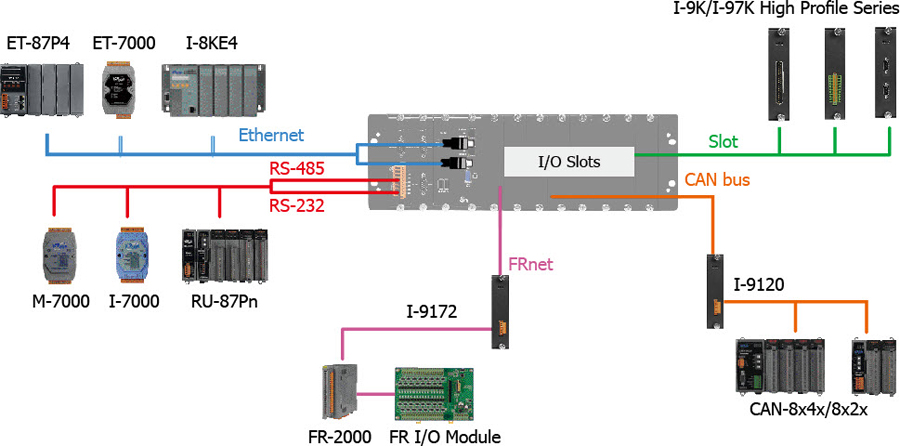

Application Image wp-9000-ce7

Specifications

System Software
OS
Windows CE 7.0
.Net Compact Framework
3.5
Flash Memory
256 MB
Embedded Service
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK Provided
Dll for VC, Dll for Visual Studio.Net 2008
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines
CPU Module
CPU Cortex-A8 (1.0 GHz)
DDR3 SDRAM 512 MB
MRAM 128 KB
Flash 256 MB
EEPROM 16 KB
SD SD slot with one SD card (support up to 32 GB)
RTC (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number Yes, for Software Copy Protection
Dual Watchdog Timers Yes
Programmable LED Indicator 2 (L1, L2)
Rotary Switch Yes (0 ~ 9)
VGA & Communication Ports
VGA Resolution 800 x 600, 1024 x 768
Ethernet RJ-45 x2, 10/100/1000 Base-TX
USB 2.0 2
COM 0 Internal communication with the high profile I-97K series modules in slots
COM 1 RS-232/485 (RxD, TxD and GND for RS-232; Data+, Data- for RS-485); 3000 VDC isolated

COM 2

RS-485 (Data+, Data-); 3000 VDC isolated
COM 3 RS-232/485 (RxD, TxD, CTS, RTS and GND for RS-232; Data+, Data- for RS-485); 3000 VDC isolated
COM 4 RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); 3000 VDC isolated
I/O Expansion Slots
4
Mechanical
Dimensions (W x L x H, unit: mm)
300 x 133 x 164
Installation
Wall Mounting
Environmental
Operating Temperature
-25 ~ +75°C
Storage Temperature
-30 ~ +80°C
Ambient Relative Humidity
10 ~ 90% RH, non-condesning
Power
Input Range 10 ~ 30 VDC
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Isolation 1 kV
Capacity 1.5 A, 5 V supply to CPU and backplane; 6.5 A, 5 V supply to I/O expansion slots, total 40 W
Consumption
10.8 W (0.45 A @ 24 VDC)
