WISE-4000
|
> Programmable Automation Controllers > WISE-4000(D) > WISE-4000
> Data Acquisition > WISE Data Acquisition Controllers > WISE-4000
> Industrial Wireless Products > Mini PAC with GPRS/GPS > WISE-4000
|
 |
| Product Reference & Support |
|
| 3-channel Digital Input, 3-channel Digital Output, and 8-channel Analog Input GPRS Module. For automation without programming, web browser configurable, allows users to implement IF-Then Else If type control logic and communicable over Modbus TCP |
WISE-4000: $949.00
|
| Please Call 1-888-971-9888 for Volume discount pricing! | |
|
|
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as a controller in various industrial applications. WISE offers a user-friendly and intuitive web site interface for configuration via Ethernet locally. This allows users to implement IF-THEN-ELSE control logic on controllers with just a few clicks; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
The WISE-4000 is equipped with a cellular transceiver that sends data to cell phones via text messages. This includes alarm notification, scheduled data sending, and conditional sending of messages.
The WISE-4000 is also am M2M (Machine to Machine) embedded controller. With a wired Ethernet connection, back end systems and SCADA software can monitor the WISE-4000 to get updated status information with the widely used Modbus TCP protocol. This also allows sending of e-mails and sharing of data with other WISE modules with our P2P function.
It features 3 digital inputs, 3 digital outputs and 8 analog inputs. With an IF-THEN-ELSE rule engine, WISE-4000 even provides more powerful functions such as Schedule, Send SMS, Send e-mail, Timer & I/O operation for use in various industrial applications.

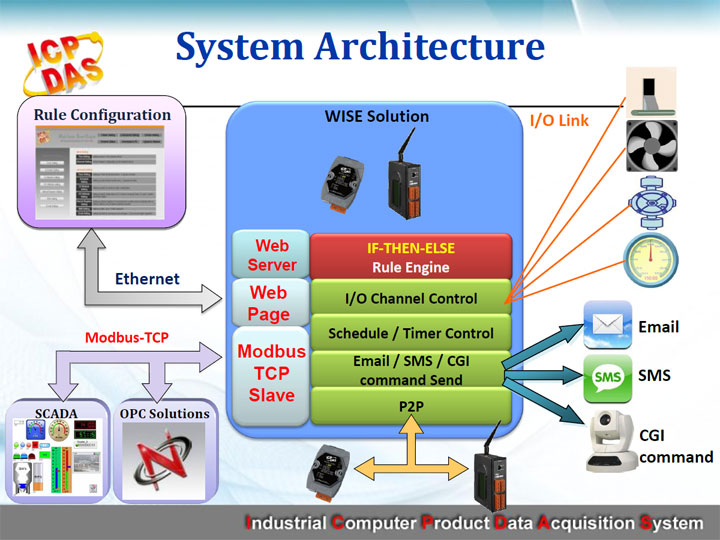

WISE controller is a simple and compact system that provides various I/O interfaces
- All WISE series support web configuration, and smart rule engine.
- WISE = Web Inside, Smart Engine
- Web Page for Properties / Rules setting
- Rule Enginefor Control / Logic execution
- Suitable for many applications, like SCADA integration, remote I/O control system.
Features
- No extra software tool required
- WISE HMI interface runs on the popular web browsers when connected by Ethernet
- No programming required
- WISE provides user-friendly web pages via Ethernet for configuration of logic rules.
- Support IF-THEN-ELSE logic rules execution
- Provide the intelligent rule engine by IF-THEN-ELSE.
- Support 36 logic rules
- Variety IO function provide
- AIO DIO DIO Counter DO Pulse output
- Support Modbus-TCP Protocol
- Seamless integration with SCADA software via Ethernet
- Remote alarm via SMS or Email
- Real time alarm message sending (e-mail via Ethernet only)
- Support Schedule/Timer functions
- Perpetual calendar, and 12 independent timer settings
- Support Recipe function for Group Action operation
- Grouping actions together, like Macro
- Support CGI command
- Easy to link with Surveillance system via Ethernet
- Support Advanced P2P Control via Ethernet
- Not just traditional P2P
- WISE controllers can share their IO status
- WISE controllers control and communicate with others directly
|
| Specifications & Additional Information |
|
Hardware Specifications |
| Digital Input |
| Input Channels |
3 |
| nput Type |
Source(Dry Type), Common Ground |
| On Voltage Level |
+3.5 VDC ~ +30 VDC |
| Off Voltage Level |
+1 VDC Max. |
| Isolated Voltage |
Non-isolated |
| Counters |
Max. Count |
65535 (16 bits) |
| Max. Input Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Digital Output |
| Output Channels |
3 |
| Output Type |
Open Collector (Sink/NPN) |
| Load Voltage |
+30 VDC Max. |
| Load Current |
100 mA Max. |
| Isolated Voltage |
Non-isolated |
| Counters |
Max. Count |
65535 (16 bits) |
| Max. Input Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Analog Input |
| Input Channels |
8 |
| Input Range/Type |
0~20 mA |
| Resolution |
12-bit |
| Sampling Rate |
1 KHz max. (Read one channel) |
| Model |
WISE-4000 |
WISE-4000D |
| System |
| CPU |
80 MHz internal microprocessor |
| SRAM/Flash |
512K/512K, real time clock, watchdog timer |
| NVRAM |
31 bytes, battery backup, data valid up to 10 years |
| EEPROM |
16 KB |
| Communication Interface |
| COM ports |
COM1:5-wire RS-232; COM2: RS-485;
COM3:3-wire RS-232 |
| Ethernet |
10/100 Base-TX Ethernet controller |
| GPRS Interface |
| Frequency Band |
Quad-band 850/900/1800/1900 MHz |
| SMS |
MT, MO, CB, Text and PDU mode |
| LCD Interface |
| General |
Effective
display area |
- |
80.61 mm x 14.37 mm
(W x H) |
Module
Dimension |
- |
93 mm x 70 mm x 1.6
mm (W x H x T) |
| Life Time |
- |
Expected life is more
than 100,000 hours
under normal operation |
| Power |
| Protection |
Power reverse polarity protection |
| Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
| Power Requirement |
15W; Unregulated +10 VDC ~ +30 VDC |
| Power Consumption |
Idle: 75 mA @ 24 VDC;
Data Link: 150 ~ 400 mA (peak) @ 24 VDC |
| LED Indicators |
| System |
Red |
| GPRS |
Yellow |
| Mechanical |
| Dimensions |
72 mm x 123 mm x 35 mm (W x H x D) |
| Installation |
DIN-Rail or Wall mounting |
| Environment |
| Operating Temperature |
-20 °C ~ +70 °C |
-15 °C ~ +55 °C |
| Storage Temperature |
-40 °C ~ +80 °C |
-20 °C ~ +70 °C |
| Humidity |
5~90% RH, non-condensing |
|
Software Specifications |
| Functions |
| 36 IF-THEN-ELSE Logic Rules |
3 IF conditions with AND or OR operators
3 THEN actions
3 ELSE actions
|
| 48 Internal Registers |
Hold temporary variables and read/write data via Modbus/TCP address.
|
| 12 Timers |
Delay / Timing functions.
|
| 12 Schedules |
Setup prescheduled routine tasks. |
| 12 Emails |
Send Email messages to pre-set Email receivers. |
| 12 SMS |
Send SMS to pre-set mobile phone numbers.
|
| Rule Configuration Website |
Access Web server on WISE controllers to edit and upload logic rules through web browser.
|
| Modbus/TCP Protocol |
Real time control and monitoring I/O channels and system status of controllers via SCADA software.
|
| IF Conditions |
| DI Channel |
ON,OFF,ON to OFF,OFF to ON,Change |
| AI Channel |
=,>,<,>=,<=(value) |
| Internal Register |
| DI Counter |
=,>,<,>=,<=(value),Change |
| DO Counter |
| Timer |
Timeout,Not Timeout |
| Schedule |
In Range,Out Range |
| THEN / ELSE Actions |
| DO Channel |
ON,OFF,Pulse Output |
| Internal Register |
Change the value |
| DI Counter |
Reset |
| DO Counter |
| Timer |
Start,Stop |
| Schedule |
| Email |
Send |
| SMS |
|
|
|
|
