| W-8731 |
|
| Product Reference & Support : |
|
| Windows CE.net Programmable Automation Controller for Embedded use in 7 Slot Configuration. |
W-8731 (7 x Slots): $1,455.00
Volume Customers, Please Call 1-888-971-9888 for discount pricing! |
|
|
|
| Being one of the forerunners of PAC technology, ICP DAS proudly offers a multitude of powerful and flexible platforms for implementing programmable automation control technology into your existing industrial control infrastructure. ICP DAS has teamed up with our embedded partners, to ensure you that the Windows CE.net based W-8000 series of programmable automation controllers far exceeds anything else on the market today!
The ICP DAS W-8000 platform has several powerful software configurations, enabling users to maximize productivity, while maintaining the comfortable familiarity of industry standard communication protocols and operating systems. With longstanding relationships with both Microsoft and Red Hat Linux, W-8000 PAC users have the freedom to choose not only their standard operating environment, but also the added flexibility to dictate both their logic and HMI runtimes as well. Users benefit from such familiar development environments as: Microsoft Embedded Visual C++, Visual Basic .NET, and Visual C# to develop your applications. By offering comprehensive software, SDK, WinCon Utility and WinConOPC Sever utilities, development time is drastically reduced!
|
| Specifications & Additional Information |
|

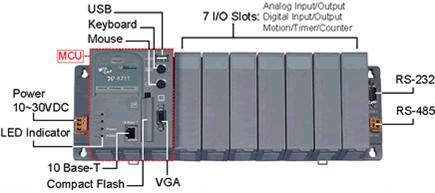

The MCU (Main Control Unit) of WinCon-8x3x is the powerhouse of the W-8x3x. Each MCU comprises a Central Processor Module(CPM) and a wide-range power supply. Except the zero-slot version, there is a three or seven slot backplane for either 3 or 7 Parallel or Serial I/O modules. The CPM is powerful integrated processing engine comprising a CPU, the internal 32M bytes flash memory and 64M bytes SDRAM. The CPM offers an additional memory medium in Compact Flash type II format. Ethernet port is also part of the basic configuration. The CPM is equipped with PC interface: PS/2(keyboard and mouse), VGA port and USB port. Further system interfaces or fieldbus connections such as Modbus/TCP and CANopen/DeviceNet are available in the basic MCU of WinCon.
| WinCon-8000 with Display |
W-8031/8037/
8039 |
W-8331/8337/
8339 |
W-8731/8737/
8739 |
Processor |
compatible with Intel Strong ARM CPU, 206MHz |
Operating System |
Windows CE.NET |
Pre-load Software |
Standard WinConSDK for W-8031/8331/8731
ISaGRAF Software for W-8037/8337/8737
InduSoft Software for W-8039/8339/8739 |
SDRAM |
64M bytes |
Flash |
32M bytes |
EEPROM |
16K bytes |
Expansion Slot |
1 x Compact Flash type II insert with ejector |
Interface |
1x USB1.1,
2 x PS/2 port(Keyboard and Mouse),
1 x VGA port |
Ethernet Port |
1 x RJ45, 10BaseT |
COM 2 |
9-pin D-Sub (RS-232) |
COM 3 |
2-wire Terminal Block (RS-485) |
Additional Serial Port |
N/A |
Default Function |
64-bit hardware unique serial number
Reset button
Power LEDs
Watchdog Timer
Real Time Clock |
I/O Expansion Slot |
0 |
3 |
7 |
Operating Temp. |
-25°C to +75°C |
Storage Temp. |
-30°C to +85°C |
Humidity |
5 ~ 95% |
Power Supply |
20W, Unregulated +10Vdc to +30Vdc |
Dimensions
(LxHxD)(mm) |
114 x 110 x 90 |
229 x 110 x 90 |
354 x 110 x 90 |
| Mount: |
Din Rail Mount |
|
|
|
|
|
|
