PROFIBUS Remote I/O Module with 8 Isolated Digital Inputs and 8 Isolated Digital Outputs

PROFI-5055: $519.00

Please Call 1-888-971-9888 for Volume discount pricing!

Features

The PROFI-5055 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 8-channel isolated digital input and 8-channel isolated digital output. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

The PROFI-5055 is one of the PROFIBUS DP series products produced by ICP DAS. It provides the PROFIBUS DP communication protocol with any DP-Masters. The PROFI-5055 provides ±4KV ESD protection contacting for all terminals (include I/O Terminals and PROFIBUS connector). By applying the PROFI-5055, users can easily establish a PROFIBUS DP network with other DP-Masters. In advance, it can be used in the application of building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc..

Support for PROFIBUS DP-V0 protocol
Detect transmission rate automatically(Max. 12Mbps)
Address 0~99 set by rotary switches
Network Isolation Protection
3000VDC isolation protection on PROFIBUS side
4KV ESD Protection (contact for any terminal).
Wide range of power input (DC 10~40VDC) and operating temperature (-25°C~+75°C)

ProfiBUS

Applications

Industrial Automation
Factory Automation
Process Automation
Etc...

Features

Protocol & Hierarchy	DP-V0 Slave
Supports Transmission Rate (Kbps)	9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
Transmission Rate Setting	detected automatically
Address Setting	0~99 set by rotary switches
Indicators	PWR, ERR, and RUN LEDs
I/O modules Configuration	Configured by GSD file
Network Isolation Protection	3000 VDC on PROFIBUS side
DC Isolation Protection	3000VDC on PROFIBUS side
4KV ESD Protection	Contact for each terminal

Specifications & Additional Information

Hardware
ESD Protection	4 kV class A
PROFIBUS Interface
Controller	Profichip VPCLS2
Transceiver	ADI ADM2486
Connector	9-pin female D-Sub
Baud Rate (bps)	9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Transmission Distance (m)	Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol	DP-V0
LED
Round LED	PWR LED, RUN LED
Power
Power supply	Unregulated +10 ~ +40 VDC
Protection	Reverse polarity protection, Over-voltage brown-out protection
Power Consumption	1 W
I/O

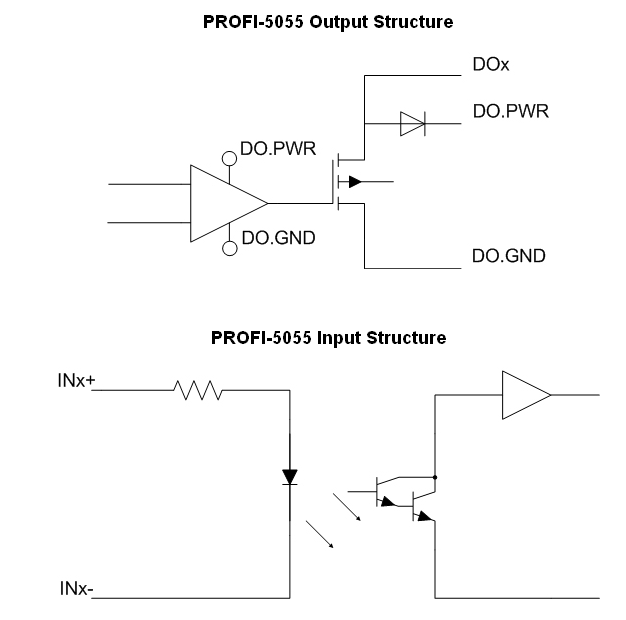

Digital Output	8 Channels (Sink), Isolated with common ground Load Voltage: +10 ~ +40V Maximum Load Current: 650mA w/o Short-Circuit Protection Isolation Voltage: 3750Vrms
Digital Input	8 Channels (Sink or Source), Isolated from each other Off Voltage Level: +4V Max. On Voltage Level: +10 ~ +50V Input Impedance: 10KΩ in series with opto-coupler Isolation Voltage: 3750Vrms
Mechanism
Installation	DIN-Rail
Dimensions	91 mm x 128 mm x 52 mm (W x L x H)
Environment
Operating Temp.	-25 ~ 75℃
Storage Temp.	-30 ~ 85℃
Humidity	5 ~ 95% RH, non-condensing
