Two Channel CAN Bus Bridge helps establish a connection between two CAN bus Systems in a network. Supports operating temperatures between -25 to 75C.

I-7532 - CAN Bus Bridge, Two Channels, Helps Connect Two CAN Bus Systems

write a review

Two Channel CAN Bus Bridge helps establish a connection between two CAN bus Systems in a network. Supports operating temperatures between -25 to 75C.

Price:
(Free Ground Shipping on Orders over $300.00)

Features

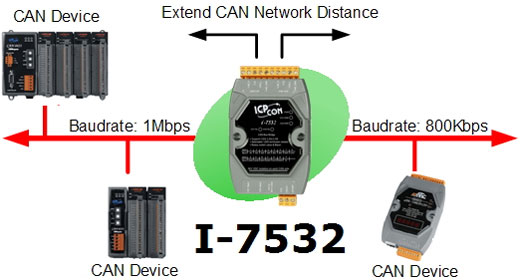

I-7532 ApplicationI-7532 is a local CAN bridge used to establish a connection between two CAN bus system in a CAN network.The I-7532 stands by itself connecting adjacent wiring segments together as in the case of a CAN repeater (I-7531).Not just like I-7531, I-7532 have three more important features. First one, the transmission distance limitation of the CAN bus system on each side of I-7532 are independent, which means the total network distance can be extended.

Second one, when the CAN bus system on one side of I-7532 happpens some error (e.g. bit error), the system on other side can still work on correctly. Last one, the baud of two channel on I-7532 can be different for highly flexibility.

  • Microprocessor inside with 72MHz
  • 82C250 CAN transceiver
  • 2500 VRMS photo coupler isolation on the CAN side
  • 3KV galvanic isolation among the power supply and 2 CAN channels
  • Support both CAN 2.0A and CAN 2.0B
  • Fully compatible with the ISO 11898-2 standard
  • Build-in jumper to select 120Ω terminal resistor
  • Watchdog inside
  • Up to 100 CAN nodes on each channel
  • Transmission distance up to 1 km on each CAN port
  • Removable terminal block, Mount easily on DIN-rail
  • 768 frame buffer for each CAN channel
  • The baud of each channel can be different for highly flexibility

  • Applications:
    • Control System
    • Building Automation
    • Factory Automation
    • Distributed data acquisition

GW-7433 Applications

Baud Rate Selection by Rotary Switch
Switch Value
0
1
2
3
Baud [bps]
N/A
5k
10k
20k
Switch Value
4
5
6
7
Baud [bps]
40k
50k
80k
100k
Switch Value
8
9
A
B
Baud [bps]
125k
200k
250k
400k
Switch Value
C
D
E
F
Baud [bps]
500k
600k
800k
1000k

Specifications

I-7532
Mocro Controller
32 bit Microprocessor inside with 72MHz
CAN Port Channels
2
CAN Transceiver
Philip 82C250
CAN Connector
10-pin removable screw terminal
Buad Rate selection by rotary switch
5K, 10K, 20K, 50K, 80K, 100K, 125K, 200K, 250K, 400K, 500K, 600K, 800K and 1Mbps
Isolation
2500 VRMS photo couple isolation between 2 CAN channel
3000 VDC galvanic isolation among the power supply and 2 CAN channel
Terminator Resistor
Selectable 120Ω terminator resistor by jumper
Support Protocol
CAN 2.0A/2.0B
Power Requirement
Unregulated +10VDC ~ +30 VDC Power reverse protection, Over-Voltage brown-out protection
Power Consumption
2W max
Operation Temp.
-25°C to 75°C
Storage Temp.
-40°C to 80°C
Humidity
5~95% non-condensing
Dimensions
122 mm × 72 mm × 33 mm
