PM-213x
|
|
> Data Acquisition > Intelligent Power Meters > PM-213x
|
 |
| Product Reference & Support |
|
| 3 Phase/4 Loops 1 Phase Compact Smart Power Meter communicable over Modbus RTU or CANbus |
PM-2133-100 (3 Phase Compact Smart Meter/CT: O10 mm (60A)/60 Hz): $489.00
|
| PM-2133-161 (3 Phase Compact Smart Meter / CT: 0-100A/50Hz: $779.00
|
| PM-2133-240 (3 Phase Compact Smart Meter/CT: O24 mm (200 A)/60 Hz): $859.00
|
| PM-2134-100 (4 Loops 1 Phase Compact Smart Meter/CT: O10 mm (60 A)/60 Hz): $799.00
|
| Please Call 1-888-971-9888 for Volume discount pricing! | |
|
|
|
It's always difficult but crucial to the supervisors to figure out how much energy is consuming. ICP DAS brings the most powerful, cost effective, advanced Compact Power Meters, PM-213X series, to the markets.
With its high accuracy (1%, PF=1), the PM-213x series products can be applied both on low voltage primary side and/or medium/high voltage secondary side and enable the users to obtain in real time the reliable and accurate energy consumption readings from the monitored equipments while in operation. These compact size and cost effective Power Meters are equipped with revolutionary wired clip-on CT (various types support input current up to 200A) and standard Modbus communication RS-485 protocol for easy deployment. It works with input voltages ranging 10V ~ 500V, supporting a wide range of applications.
ICP DAS offers PM-213X family in a full range of Single-phase and Three-phase compact power meters for power monitoring. The products offer a rich feature set combined with easy-to-integrate communications.
- True RMS energy and power parameters measurement in compact size.
- Easy wiring for on-line installation.
- RS-485 communication supported Modbus RTU protocol , CAN Bus Communication supported Compatible with CAN specification 2.0B.
- Wh accuracy better than 1%(PF=1).
- With wired clip-on CT (various types support input current up to 200A).
- LED pulse output.
|
Power Meter Selection Guide:
 |
|
| Specifications & Additional Information |
|
| Model |
PM-2134 |
PM-2133 |
| Input Voltage |
10 - 300 V |
10 - 500 V |
| Input Current |
CT Φ10 mm (60 A), CT Φ16 mm (100 A), CT Φ24mm (200 A) |
| Aux Power |
DC 10 - 30 V |
| Frequency |
60/50 Hz |
| Starting I |
<0.025A |
| Wiring diagram |
1-phase 4-channel |
Auto or manual setting 1P2W-1CT, 1P3W-2CT, 3P3W-2CT, 3P3W-3CT, 3P4W |
| Power Parameters Measures |
V1, V1, V2, V2
I 1, I 2, I 3, I 4
kW1, kW2, kW3, kW4
kVA1, kVA2, kVA3, kVA4
kvar1, kvar2, kvar3, kvar4
PF1, PF2, PF3, PF4
kWh1, kWh2, kWh3, kWh4
kVAh1, kVAh2, kVAh3, kVAh4
kvarh1, kvarh2, kvarh3, kvarh4 |
VA, VB, VC, Vave
I A, I B,I C, I ave
kWA, kWB, kWC, kWtot
kVAA, kVAB, kVAC, kVAtot
kvarA, kvarB, kvarC, kvartot
PFA, PFB, PFC, PFtot
kWhA , kWhB, kWhC, kWhtot
kVAhA , kVAhB, kVAhC, kVAhtot
kvarhA , kvarhB, kvarhC, kvarhtot |
| Communication |
RS485, half duplex isolated
Baud Rate：9600, 19200, 38400
Protocol：Modbus-RTU |
| kWh Accuracy |
0.1%(PF=1) better than IEC62053-21 |

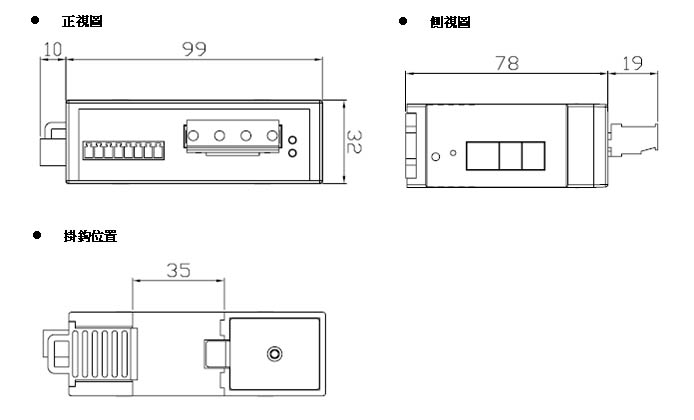

| Dimension |
78(L) × 35(W) × 99(H) mm |
| Operating Temperature |
-10 °C ~ 70 °C |
| Installation |
Rail-mounted |

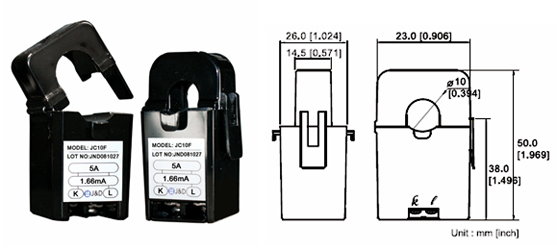

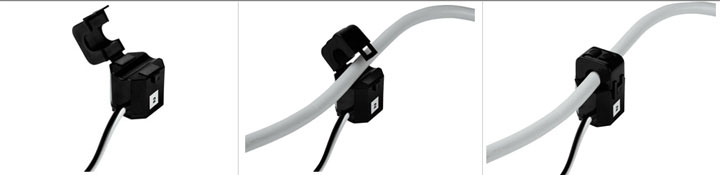

Installs Simple Clip-on CT
Wiring Diagram

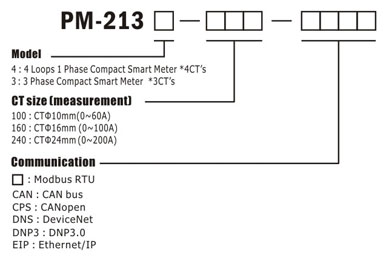

Model Explanation

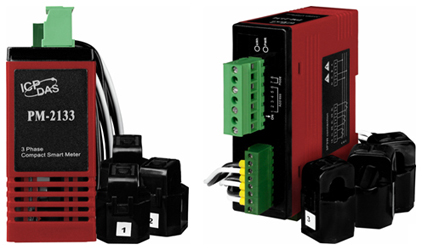

PM-2133: 3 Phase Compact Smart Meter

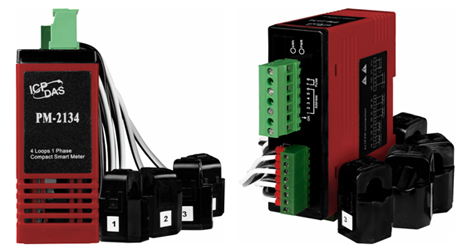

PM-2134: 4 Loops 1 Phase Compact Smart Meter
CT Size (measurement) Explanation
100: CTΦ10mm (0~60A)

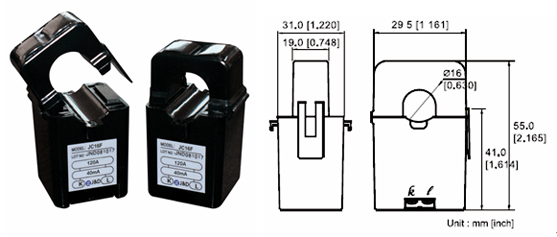

160: CTΦ16mm (0~100A)

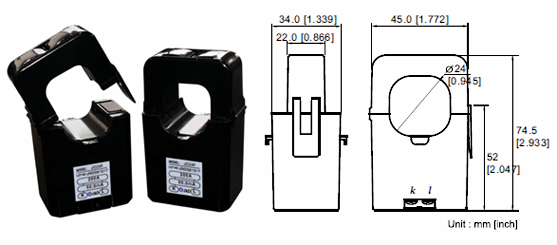

240: CTΦ24mm (0~200A)
Selection Guide
|
|
|
