8-channel Voltage & Current Analog Input with High Voltage Protection and 4-channel Isolated Output Data Acquisition PoE Module, communicable and Powered over Ethernet and Modbus TCP Protocol

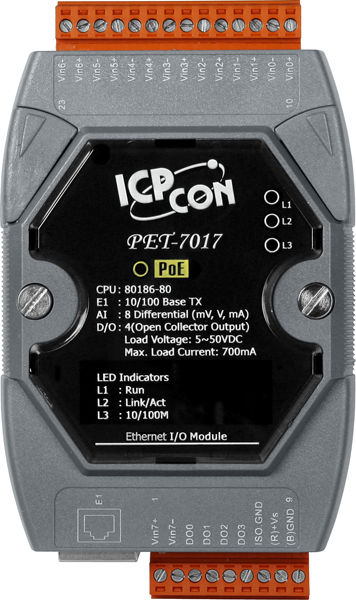

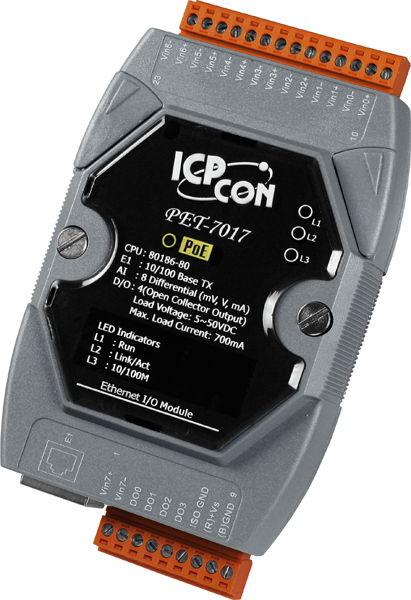

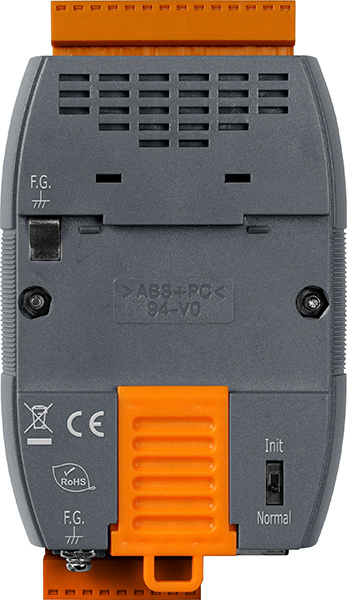

PET-7017

write a review

8-channel Voltage & Current Analog Input with High Voltage Protection and 4-channel Isolated Output Data Acquisition PoE Module, communicable and Powered over Ethernet and Modbus TCP Protocol

Price:
(Free Ground Shipping on Orders over $300.00)

Features

PET Application

The PET-7017 is a web-based Ethernet I/O module that features a built-in web server which allows remote configuration, I/O monitoring and I/O control simply by using a regular web browser. Remote control is as easy as surfing the Internet. In addition, the web HMI function means that programming or HTML skills are no longer required so creating dynamic and attractive web pages for I/O monitoring and I/O control purposes will be more fun for engineers in the future. The PET-7017 offers easy and safe access for users at anytime and from anywhere, and also supports the Modbus/TCP protocol that ensures perfect integration with SCADA software. Furthermore, the PET-7017 features PoE, meaning that not only is data transmitted through an Ethernet cable but also power making installation of the PET-7017 a piece of cake. Imagine no more unnecessary wires with only an Ethernet cable being required to take care of everything in the field.

The PET-7017 is a 16-bit, 8-channel differential analog inputs and 4-channel digital outputs module that provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0~20 mA and 4~20 mA) and digital output can be set alarm output with Short-circuit protection and overload protection. Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Jumper selectable for voltage or current input. The sampling rate of PET-7017 is changeable; there are fast mode and normal mode for your consideration. PET-7017 also has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation.

  • PoE and Regular Ethernet Options
  • Built-In Web Server
  • Web HMI
  • Modbus/TCP, Modbus/UDP Protocol
  • Communication Security
  • Dual Watchdog
  • Operating Temperature: -25 ~ +75 C
  • I/O Pair Connection
  • Built-In I/O
    • AI: 8 Channels
    • DO: 4 Channels

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis, Testing Equipment.

Specifications

Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 second), Communication (Programmable)
LED Indicators
L1 (System Running) Yes
L2 (Ethernet Link/Act) Yes
L3 (Ethernet 10/100 M Speed) Yes
PoE Power - Yes
2 Way Isolaiton
Ethernet 1500 VDC -
I/O 2500 VDC 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for each terminal and 8 kV Air for random point
EFT (IEC 61000-4-4) +/-4 kV for Power
Power Requirements
Reverse Polarity Protectionn Yes
Powered from terminal block Yes, 10 ~ 30 VDC Yes, 12 ~ 48 VDC
Powered from PoE - Yes, IEEE 802.3af, Class1
Consumption 2.6 W 3.1 W
Mechanical
Dimensions (W x L x D) 72 mm x 123 mm x 35 mm
Installation DIN-Rail or Wall mounting
Environment
Operating Temperature -25 C ~ +75 C
Storage Temperature -30 C ~ +80 C
Humidity 10 ~ 90% RH, non-condensing

I/O Specifications

Analog Input
Input Channels 8 (Differential)
Input Type +/-150 mV, +/-500 mV, +/-1V, +/-5V, +/-10V
+/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA
(jumper selectable)
Individual Channel Configuration Yes
Resolution Normal Mode 16-bit
Fast Mode 12-bit
Sampling Rate Normal Mode 10 Samples/Sec. (Total)
Fast Mode 60 Samples/Sec. (Total)
Accuracy Normal Mode +/-0.1%
Fast Mode +/-0.5% or better
Zero Drift +/-20 μV/C
Span Drift +/-25 ppm/C
Overvoltage Protection 240 Vrms
Input Impedance Voltage 2 MΩ
Current 125 Ω
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Digital Output
Output Channels 4
Type Isolated Open Collector (Sink)
Max. Load Current 700 mA/Channel
Load Voltage 5 VDC~ 50 VDC
Overvoltage Protection 60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power On Value Yes, Programmable
Safe Value Yes, Programmable
Note1: Differential mode can be used for voltage input and current input.
Single-Ended mode can be used for voltage input only.
