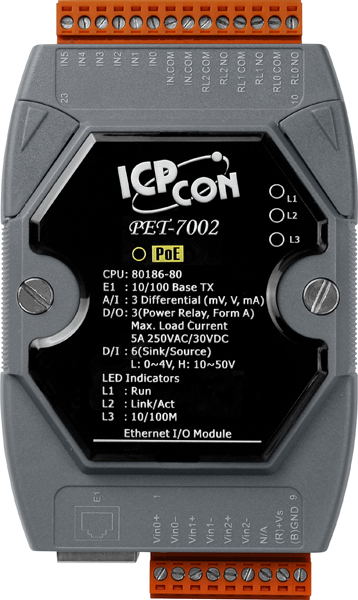

PET-7002
Modbus TCP based Ethernet I/O module with Power-over-Ethernet function, 3-channel Analog Inputs, 6-channel Digital Inputs/Counter and 3-channel Relay Outputs, Supports Current Input and Voltage Input types: +/- 150 mV,+/- 500 mV, +/- 1V, +/- 5 V, +/-10 V + 0 mA ~ + 20 mA, +/- 20 mA, 4 ~ 20 mA (jumper selectable). Communicable over Modbus TCP and Modbus UDP. Supports operating temperatures between -25°C to +75°C (-13°F ~ 167°F) and has a din rail mount.
Features
The PET-7002 is a web-based Power Over Ethernet I/O module that features a built-in web server which allows remote configuration, I/O monitoring and I/O control simply by using a regular web browser. Remote control is as easy as surfing the Internet. In addition, the web HMI function means that programming or HTML skills are no longer required so creating dynamic and attractive web pages for I/O monitoring and I/O control purposes will be easy for engineers in the future. The PET-7002 offers easy and safe access for users at anytime and from anywhere, and also supports the Modbus/TCP protocol that ensures perfect integration with SCADA software.
The PET-7002 is a multi-function module provides 3 analog input channels, 6 digital input channels and 3 relay output channels. A programmable input range is provided on all analog inputs (+/- 150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0~20 mA and 4~20 mA). The range for each analog input can be configured individually and each input has a high overvoltage protection of 240Vrms. The analog inputs are also jumper selectable for either voltage or current inputs. The PET-7002 is fully RoHS-compliant and provides 4 kV ESD protection, 3 kV surge protection as well as 2500 VDC intra-module isolation.
- PoE
- Built-In Web Server
- Web HMI
- Modbus/TCP, Modbus/UDP Protocol
- Communication Security
- Dual Watchdog
- Operating Temperature: -25 ~ +75 °C
- I/O Pair Connection
- Built-In I/O
- AI: 3 Channels
- DI/Counter: 6 Channels
- Power Relay: 3 Channels
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis, Testing Equipment.
Specifications
Software | |
Built-In Web Server | Yes |
Web HMI | Yes |
I/O Pair Connection | Yes |
Communication | |
Ethernet Port | 10/100 Base-TX with Auto MDI/MDI-X |
Protocol | Modbus/TCP, Modbus/UDP |
Security | ID, Password and IP Filter |
Dual Watchdog | Yes, Module (0.8 seconds), Communication (Programmable) |
LED Indicators | |
L1 (System Running) | Yes |
L2 (Ethernet Link/Act) | Yes |
L3 (Ethernet 10/100 M Speed) | Yes |
PoE Power | Yes |
2 Way Isolation | |
Ethernet | - |
I/O | 2500 VDC |
EMS Protection | |
ESD (IEC 61000-4-2) | 4 kV Contact for each terminal and 8 kV Air for random point |
EFT (IEC 61000-4-4) | +/-4 kV for Power |
Surge (IEC 61000-4-5) | +/-4 kV for Power |
Power Requirements | |
Reverse Polarity Protection | Yes |
Powered from Terminal Block | Yes, 12 ~ 48 VDC |
Powered from PoE | Yes, IEEE 802.3af, Class1 |
Consumption | 1.7 W |
Mechanical | |
Dimensions (W x L x H) | 72 mm x 123 mm x 35 mm |
Installation | DIN-Rail or Wall mounting |
Environmental | |
Operating Temperature | -25 °C ~ +75 °C |
Storage Temperature | -30 °C ~ +80 °C |
Humidity | 10 ~ 90% RH, non-condensing |
I/O Specification
Analog Input | |||
Input Channels | 3 (Differential) | ||
Input Type | +/- 150 mV,+/- 500 mV, +/- 1V, +/- 5 V, +/-10 V + 0 mA ~ + 20 mA, +/- 20 mA, 4 ~ 20 mA (jumper selectable) | ||
Resolution | Normal Mode | 16-bit | |
Fast Mode | 12-bit | ||
Sampling Rate | Normal Mode | 10 Samples/Sec. (Total) | |
Fast Mode | 60 Samples/Sec. (Total) | ||
Accuracy | Normal Mode | +/-0.1% | |
Fast Mode | +/-0.5% or better | ||
Zero Drift | +/-20 μV/°C | ||
Span Drift | +/-25 ppm/°C | ||
Individual Channel Configuration | Yes | ||
Overvoltage Protection | 240 Vrms | ||
Overcurrent Protection | 50 mA max. at 110 VDC/VAC max. | ||
Input Impedance | Voltage | 2 MΩ | |
Current | 124 Ω | ||
Common Mode Rejection | 86 dB Min. | ||
Normal Mode Rejection | 100 dB | ||
Virtual Channel to Channel Isolation | +/-400 VDC | ||
Digital Input/Counter | |||
Input Channels | 6 | ||
Type | Wet Contact (Sink, Source) | ||
On Voltage Level | +10 VDC ~ +50 VDC | ||
Off Voltage Level | +4 VDC max. | ||
Input Impedance | 10 KΩ, 0.5W | ||
Counters | Max. Count | 4,294,967,285 (32 bits) | |
Max. Input Frequency | 100 Hz | ||
Min. Pulse Width | 5 ms | ||
Overvoltage Protection | +50 VDC | ||
Power Relay | |||
Output Channels | 3 | ||
Type | Power Relay, Form A (SPST N.O.) | ||
Operating Voltage Range | 250 VAC/30 VDC | ||
Max. Load Current | 5.0A/channel at 25 °C | ||
Operate Time | 6 ms (Typical) | ||
Release Time | 3 ms (Typical) | ||
Electrical Life ( Resistive load ) | VDE: | 5 A@250 VAC 30,000 ops (10 ops/minute) at 75°C. | |
5 A@30 VDC 70,000 ops (10 ops/minute) at 75°C. | |||
UL: | 5 A@ 250 VAC/30 VDC 6,000 ops. | ||
3 A@250 VAC/30 VDC 100,000 ops. | |||
Mechanical Life | 20,000,000 ops. at no load (300 ops./minute). | ||
Intra-module Isolation, Field to Logic | 3750 VDC | ||
Power-on Value | Yes, Programmable | ||
Safe Value | Yes, Programmable |
