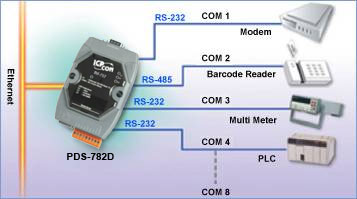

Our 10/100 Base-T Programmable Device Servers are designed for linking RS-232/485/422 devices to Ethernet networks. With the help of VxComm utility, the built-in COM port of PDS-700 can be virtualized to standard COM port of host-PC. They have virtual I/O built in and an 80 MHz CPU. Supports 100 mbps LAN.

Model	COM1	COM2	COM3	COM4	COM5	COM6	COM7	COM8	DI/DO	Price
PDS-720	5-wire RS-232	2-wire RS-485	-	-	-	-	-	-	-	$279.00
PDS-720D	5-wire RS-232	2-wire RS-485	-	-	-	-	-	-	-	$319.00
PDS-721	5-wire RS-232	2-wire RS-485	-	-	-	-	-	-	6/7	$299.00
PDS-721D	5-wire RS-232	2-wire RS-485	-	-	-	-	-	-	6/7	$339.00
PDSM-721	5-wire RS-232	2-wire RS-485	-	-	-	-	-	-	6/7	$389.00
PDSM-721D	5-wire RS-232	2-wire RS-485	-	-	-	-	-	-	6/7	$429.00
PDS-732	5-wire RS-232	2-wire RS-485	5-wire RS-232	-	-	-	-	-	4/4	$389.00
PDS-732D	5-wire RS-232	2-wire RS-485	5-wire RS-232	-	-	-	-	-	4/4	$429.00
PDS-734	5-wire RS-232	2-wire RS-485	RS-422/485	-	-	-	-	-	4/4	$389.00
PDS-734D	5-wire RS-232	2-wire RS-485	RS-422/485	-	-	-	-	-	4/4	$429.00
PDS-742	5-wire RS-232	2-wire RS-485	5-wire RS-232	9-wire RS-232	-	-	-	-	-	$399.00
PDS-742D	5-wire RS-232	2-wire RS-485	5-wire RS-232	9-wire RS-232	-	-	-	-	-	$439.00
PDS-742-IP67	RS-232	RS-485	RS-232	RS-232	-	-	-	-	-	$499.00
PDS-743	5-wire RS-232	2-wire RS-485	3-wire RS-232	3-wire RS-232	-	-	-	-	4/4	$419.00
PDS-743D	5-wire RS-232	2-wire RS-485	3-wire RS-232	3-wire RS-232	-	-	-	-	4/4	$469.00
PDS-752	5-wire RS-232	2-wire RS-485	5-wire RS-232	5-wire RS-232	5-wire RS-232	-	-	-	-	$459.00
PDS-752D	5-wire RS-232	2-wire RS-485	5-wire RS-232	5-wire RS-232	5-wire RS-232	-	-	-	-	$509.00
PDS-755	5-wire RS-232	2-wire RS-485	2-wire RS-485	2-wire RS-485	2-wire RS-485	-	-	-	-	$479.00
PDS-755D	5-wire RS-232	2-wire RS-485	2-wire RS-485	2-wire RS-485	2-wire RS-485	-	-	-	-	$529.00
PDS-782	5-wire RS-232	2-wire RS-485	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	-	$529.00
PDS-782D	5-wire RS-232	2-wire RS-485	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	-	$579.00
PDS-782-25	5-wire RS-232	2-wire RS-485	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	-	$579.00
PDS-782D-25	5-wire RS-232	2-wire RS-485	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	-	$619.00
PDS-700D = PDS-700 + 7-Seg. LED Display PDSM-700(D) = PDS-700(D) with Metal Casing
