ICP DAS USA Newsletter May 14, 2009
In This Issue
XP Windows Embedded Controller is better than a PC + I/O
XP-8000 Expansion I/O Options
XP-8000 has all the benefits of an IPC with I/O
Data Acquisition and Data Communication Presentations
Dear Maria,

Windows Embedded Standard 2009 has many advantages has the same Win32 API as Windows XP Professional.  Desktop programs can be easily ported to Windows Embedded Standard 2009 reducing development time and costs.

Windows XP Embedded 2009 Controller
XP-8041 (0 slot base): $1,999.00
XP-8341 (3 slot base): $2,199.00
XP-8741 (7 slot base): : $2,299.00


XP-8000 is better than a PC + I/O Cards
Robust for Industrial Conditions
These Popular Microsoft Software Features are Included:
  • FTP Server
  • HTTP Server
  • ASP (Java script, VB script)
  • SQL Express 2005
  • .NET F framework 3.5

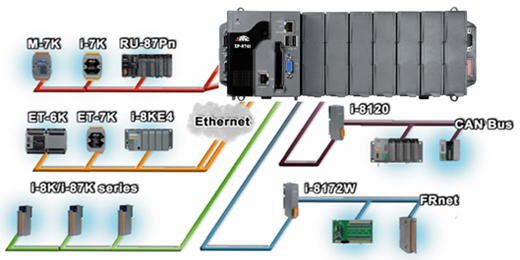

XP-8000 Expansion I/O
Expansion Options for XP Embedded 2009 Controller

XP-8000 is equipped with two RS-485 COM ports which enable the transmission rate up to a maximum of 115.2 Kbps. The medium for connection is a twisted-pair, multi-drop, 2-wire RS-485 network that can link I-7000, M-7000, RU-87Pn and high profile I-87K modules. The available Ethernet I/O devices are ET-6000, ET-7000, I-8KE4/8 and I-8KE4/8-MTCP. XP-8000 can access them with Modbus/TCP or DCON protocol.

Click here to see all of our Expansion I/O options.


XPAC gives you all the best features of tradional IPC with I/O cards solutions.  XP-8000 Series controllers provide local data logging, a local graphic interface, a local database, local web server.

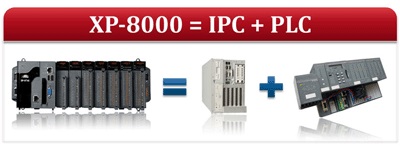

XP-8000 has all the benefits of an IPC with I/O card solutions!

Rich Software Solutions:  Microsoft Visual Studio.NET 2003/2005/2008 and Visual Studio 6.0 solution are commonly used development tools.   ICP DAS provides a SDK as well as demo programs for Visual C#.NET, Visual Basic.NET and Visual C++.
Borland Delphi and C++ Builder:   SDK and demo programs are provided as well.   We also provide a SCADA solution: InduSoft provides simple "drag and drop", "point and click" developing environment for HMI and SCADA applications.


Data Acquisition and Data Communication Presentations
ICP DAS USA Web Presentations







All ICP DAS Data Acquisition products are tested against stringent environmental and industrial standards to ensure the utmost in quality and reliability.   ICP offers a complete line of Analog and Digital data acquisition devices-- allowing users a vast array of choices when selecting the appropriate hardware for system integration. ICP DAS also offers a complete line of specialty I/O modules, as well as proprietary cartridge based I/O for use with all of our rack mount backplanes.

ICP DAS USA offers a wide selection of devices, allowing diversified industrial data communication and conversion. We have DeviceNet Gateways, CAN Communication Converters, Modbus RTU to Modbus TCP converters, Serial to Ethernet converters, RS-232/422/485 Conversion Devices, Industrial Unmanaged Ethernet Switches and much more.



Q:    What is XP-8000?

A:     XP-8000 is an embedded personal computer which is dedicated to industrial control.



Our OEM Program

If you are a OEM customer, we are fully capable of designing and manufacturing products according to your exact specifications; allowing you to save both development time and money. ICP DAS is proudly listed as an ISO 9001 and ISO 9002 company!

Our e-commerce website allows you to save time and make your purchases online.  www.icpdas-usa.com supports secure online purchases with 128 bit SSL encryption.

All orders placed by 2pm will ship same day.

We offer a 15 day money back guarantee on our products.  Click here for more information on our policies.

Click here to visit our website.
