New Ethernet and Fiber Optic Switches

ICP DAS USA Newsletter - October 7, 2010 1-888-971-9888

Dear Maria,

We recently released NSM-208PSE, a new Power over Ethernet switch that meets Railway Standards. We offer a large selection of robust Fiber Optic and Ethernet switches in both metal and plastic form factors. Fiber can help extend your communication distances. Power over Ethernet eliminates the need for extra wiring. Our products are designed to survive in harsh environments.

New Ethernet & Fiber Optic Switches

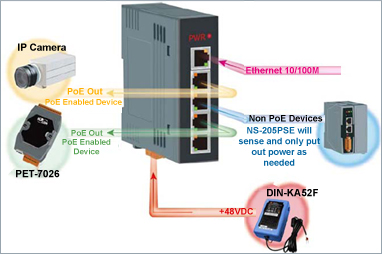

	NS-205PSE-24 $259 5-Port 10/100 Mbps PoE (PSE) Ethernet Switch with 24 VDC Input is designed with a 24 VDC to 48 VDC boost for Power over Ethernet applications where a 48 VDC power supply is not available.
	NS-208PSE: $299 8 Port Industrial 10/100 Mbps PoE (PSE) Ethernet Switch can be used to power IEEE802.3af compliant powered devices (PD) over Ethernet cable and eliminates the need for additional power wiring.
	NSM-208PSE-R: $399 8 Port Industrial 10/100 Mbps PoE (PSE) Ethernet Switch with Conformal Coating. Meets Railway Standards. Supports 8 PoE ports which are classified as power source equipments (PSE). Provides up to 15.4 watts of power per port.
	NSM-209FC: $439 Unmanaged 8-Port Industrial 10/100 Base-T with 100 Base-FX Fiber Switch operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5 / 125μm fiber cables. In half duplex mode the range is 412m with 62.5 / 125μm fiber cables.
	NSM-209FT: $439 Unmanaged 8-Port Industrial 10/100 Base-T with 100 Base-FX Fiber Switch provides two power inputs that can be connected simultaneously to live DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the NSM-209FT's power needs.
