M2M refers to Machine to Machine Systems which include devices that are able to reply to requests for data from devices that can transmit autonomously. They have established communication between devices and to a server or another device. A software agent, process, or interface by which the data can be analyzed, reported, and/or acted upon. M2M systems also have software Intelligence. They are purpose driven.
Click here to read the Machine to Machine Application story using uPAC-7186EX-FD-X305B for Machine to Machine communication.
ICP DAS USA Suggested Solutions
Web Based Data Acquisition Controller Allows Real Time Monitoring uPAC-7186EX-FD-X305B has a web based reporting & monitoring systemand is capable of remote data monitoring and data acquisition. This Embedded Controller has a built in web server for remote access, analog and digital I/O points built for data collection, 64 MB memory built in for local data logging, Ethernet port, RS 232 port and RS 485 port built in for flexible communication. Click here to see the uPAC-7186EX-FD-X305B Data Acquisition Controller demo. It provides an example of real time data monitoring. You can see the water tank level displayed in your web browser in real time. The graph displays historical data. Best viewed in Internet Explorer.
G-4500 with M-7000 Data Acquisition Modules G-4500 is a compact programmable automation controller with an antenna and built-in GPRS/GSM. G-4500 with M-7000 data acquisition modules allows monitoring of data that can be sent out in real time. GPS is an optional accessory for G-4500. With GPS, G-4500 becomes a tracking system which you can often find in car and marine systems.
uPAC-7186EX-FD with X Daughter Boards and M-7000 Modules uPAC-7186EX-FD is a Data Acquisition controller with 64 MB NAND memory. Our X Daughter Boards and M-7000 modules allow for standalone control and data acquisition. It easily allows equipment like natural gas compressors, plunger lift systems, and generators to communicate with each other. Notifications can be sent instantly when things like temperatures is out of specified range.
ET-7000 Web Based Ethernet I/O and M-7000 Data Acquisition Modules ET-7000 Web Based Ethernet I/O modules can be linked to devices like cameras, smoke sensors and transmitters. They can send digital output signals to devices like web based LED displays. These displays can help warn drivers about obstructions to keep the roadway smooth and safe. M-7000 data acquisition modules can be added to applications for a wide variety of I/O.
M-7132 Remote Mainenance Device with Voice Streaming and Web Server M-4132 is an advanced remote maintenance device that provides convenient functions for manufacturers like one-to-many connections and audio functions. With M-4132, it is just like being on location. M-4132 can help engineers maintain and fix programs in remote devices very efficiently.

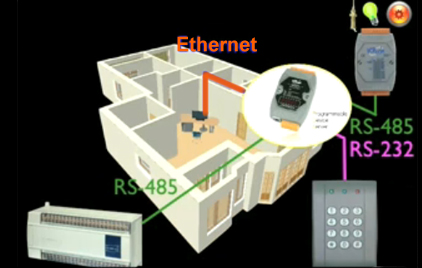

High Power Serial to Ethernet Converters PDS-7000 High Power Serial to Ethernet Converters allow serial devices onto the Ethernet network. A card reader with an RS-232 interface is set outside of the door and far away from the central system. A device server enables the card reader to communicate with the central system by converting the serial RS-232 signal to Ethernet protocol. A PLC controlling lights, buttons and air conditioning call for multi-COM port connections. Through Ethernet, we can extend transmission distances
Bring Serial Devices onto Ethernet Networks I-7188 E Converters assign a unique address to any RS-232 device installed in Ethernet networks. Host-PC's can send commands with the device address to Ethernet networks. The destination I-7188E series will remove the address field & pass the other fields of command to its local RS-232 device. The response of this local RS-232 device will be passed to host-PC via this destination I-7188E series.
Our GTM-201-RS232 and GTM-201-USB wireless products can take data from a variety of devices through RS232 and USB interface and through a GSM network send an SMS text message through the internet to a cellphone, notebook or PC so you can get alerts remotely. This allows you to keep track of your devices from anywhere you can receive a text message!
ICP DAS new product release: Intelligent SMS alarm controller- GT-530
GT-530 is an intelligent SMS controller for industry applications with the simple commands and SMS tunnel function, and power can be input by the external power or Li-Battery. It supports UNICODE or 7 bit format for users to implement sending SMS messages with various languages. Applying GT-530, the SMS reports can be sent by defined time or DI/counter event trigger. This can be a remote control and alarm system allowing you to use your mobile phone to monitor and control your business from any location. Its alarm facilities provide a flexible way to distribute critical alarm information to any number of mobile phone users. GT-530 can monitor total 10 digital inputs (6 counters). The users can interrogate the status of I/O through SMS messages. GT-530 also has 2 Digital output which can be activated via DI trigger or SMS to control the lamps, pumps, heaters etc.
Applications:
Application 1: Signal Alarm and SMS communication
Application 2: Home security
Application 3: Remote maintenance
Application 4: SMS Tunnel Communication
The absorption of ICP DAS Co., Ltd. is to develop cost effective solutions to the industries. In recent years, the significance of communication is expanding exponentially. It is not only people who communicate via internet or telecommunication technologies, but also machines. The technology which allows you to connect your physical resources online is also called M2M Technology. From home application to large scale industrial machines, there are millions of machines waited to be connected online. The advancement in GSM and GPRS technologies has enabled wireless integration with wired-machines more affordable & effective then ever. The live applications are showed below.
Temperature Inspection System
There are many reasons could cause great damage in a running train. For example, the over heated train shaft would cause serious harm. For security reason, Train Shaft Temperature Inspection System is developed by ICP DAS. We placed infrared temperature sensors around shafts, and these sensors are connected to G-4500 series (M2M Mini-Programmable Automation Control). G-4500 controller will transmit data via GPRS service to Internet back to control center in real-time. With the shaft temperature system, control center would notice over heated shaft easily and send alarm message to train immediately in order to avoid the danger situation.
Street Lamp Monitoring System
ICP DAS has developed and deployed an effective solution for the purpose of remote monitoring of street lamp. In each control boxes of street lamp, we placed a WinPAC (Windows CE embedded Programmable Automation Controller) and I/O Modules to acquire data from control box. All data will be transmitted back to control center in real-time by using GTM-201-USB (Industrial Quad-band GPRS/GSM Modem). With the Street Lamp Monitor System, it is possible to maintaining and monitoring each street lamp instantaneously.
Vending/Gaming Machine Monitor
Generally, the vending machines or gaming machine are spreading out in many locations. To maintain each machine would cost great time and labor. ICP DAS invents a Gaming / Vending Machine Monitor and Report System to undo the problem of machine maintaining. Each machine has a GT-530 or GT-534 (Intelligent SMS/GSM Alarm Controller) inside itself. Once the specific circumstances occurred (for example, vending machine ran out of drink), GT-530/GT-534 will automatically send either SMS or voice message to users in program list. After user receives message from controller, user can send some one over to solve the problem.
Factory Wireless Solution
ZB Series is the newest ZigBee Network converters and I/O modules. ZB Series is not only complies with the RoHS Directive but also conforms with IEEE802.15.4 wireless communication standard. Through ZB-2570 (Master) and ZB-2571 (Slave), users may easily build a wireless RS-232/RS485/Ethernet network in a most efficient way. It supports ad-hoc, stat, and mesh network topology, and coexist with 65535 nodes. The communication distance is up to 100 meters (700 meters with enhanced antenna). In some existing systems that use a RS-485/RS-232 network, it is sometimes difficult to extend the new devices due to building structure issues, wiring problems or other reasons. The ZB series can be easily added to an existing system in order to extend your network.
Data Position and Monitoring System
The mini-style G-4500 series is a compact programmable automation controller with a GPRS/GSM antenna built-in. By using G-4500 series, user can easily acquire data from any site without wiring limitation. G-4500 can also combine with a GPS module which allows user to monitor the location of moving transportations. To replace the G-4500 on a vehicle or ship, users not only monitor its position but also manage the oil consumption.
