16 Channel Source Type Isolated Digital Output (Counter), Data Acquisition Module, communicable over Modbus RTU and RS-485, supports operating temperatures from -25 to 75°C

M-7045

16 Channel Source Type Isolated Digital Output (Counter), Data Acquisition Module, communicable over Modbus RTU and RS-485, supports operating temperatures from -25 to 75°C

  Price:  $269.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

m7000

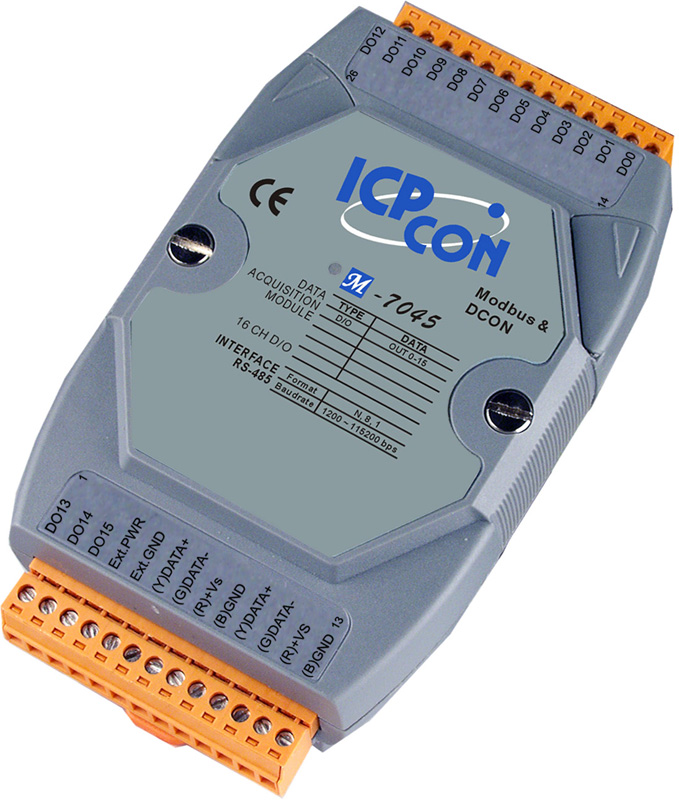

The M-7045 device is a network data acquisition and control modules that support Modbus RTU. They can be remotely controlled using a set of commands called DCON protocol. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/ HMI software and PLCs.


  • Communication Interface: RS-485
  • Digital Output Channels: 16
  • Din Rail Mount
  • Direct drive power relay module
  • Short circuit protection

Specifications

Communication
Interface RS-485
Bias Resistor No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.)
Format N, 8, 1
Baud Rate 1200 to 115200 bps
Protocol Modbus RTU, DCON (for M-7045 series)
Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicators/Display
System LED Indicator Yes, 1 as Power/Communication Indicator
I/O LED Indicators -
7-Segment LED Display -
Isolation
Intra-module Isolation, Field-to-Logic 3750 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
EFT (IEC 61000-4-4) ±4 kV for the 16 DO channels and Power, ±2 kV for the RS-485 Port
Surge (IEC 61000-4-5) ±3 kV for Power Line
Power
Reverse Polarity Protection Yes
Input Range 10 ~ 30 VDC
Consumption 0.6 W
Mechanical
Dimensions (L x W x H) 123 mm x 72 mm x 35 mm
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Humidity 10 ~ 95% RH, Non-condensing

I/O Specifications

Digital Output/Counter
Channels 16
Type Open Source
Sink/Source (NPN/PNP) Source
Load Voltage +10 ~ 40 VDC
Max. Load Current 650 mA/Channel
Overvoltage Protection 47 VDC
Overload Protection 1.4 A (with Short-circuit Protection)
Power-on Value Yes
Safe Value Yes
