The M2M-710D module is specially designed for the remote maintenance and upgrading the serial to network application solution. It is suitable for the harsh industrial field. M2M-710D provides 2 major technologies on networking. The Pair connection provides TCP data tunneling between 2 serial devices. Therefore, by means of TCP/IP server/client infrastructure, M2M-710D can provide the remote serial data transmission by Ethernet between local and remote sides. This solution can transfer the site condition of equipment accurately. The maintenance engineer can directly check and diagnose the device/PLC like on-site. This can reduce the huge maintenance cost to increase the competition of enterprises.
Except for the functionality above, M2M-710D can also be accommodatingly in other equipment (M-4132, M2M-420-AV…).
M2M-710D also integrates the Virtual com technology. That can resolve the insufficiency of real com port in PC. By applying this technology, the maintenance man can take the remote maintenance or monitor whenever the time is and whatever the place is.(V13 or latter)
Serial application revolution: Upgrade the original serial application to network application
Remote Maintenance: Establish the remote maintenance system of the equipments sold in the world
Virtual Com: Remote maintenance by Virtual Com technology
Features
Provide pair connection (RS-232,RS-485) on network
- Support Server and Client communication mode
- Support VxComm function in server mode(V13 or latter)
- Be applied with other M2M products (M-4132, M2M-720-A
- Support RS-232 or RS-485 serial communication ports
- Built-in self-tuner ASIC chip for RS-485 port
- Web-based administration
- Built-in MiniOS7 OS to keep off the computer virus
- Ethernet Protocol: TCP, UDP, IP, ICMP, ARP, RARP
- Provide dynamic DNS function
- Supply static IP/DHCP
- Supply DDNS(Dynamic DNS)
- Quick start
- 5-Digit 7 Segment LED Display
- EMI, RoHS compliance
Web-based administration
The M2M-710D module built-in web server, the user can operate and set the module easily by web browser.
 |
| CPU |
80186, 80 MHz |
| SRAM |
512 KB |
| Flash Memory |
Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ;
100,000 erase/write cycles |
| EEPROM |
16 KB;
Data retention: 40 years; 1,000,000 erase/write cycles. |
| Built-in Watchdog Timer |
Yes |

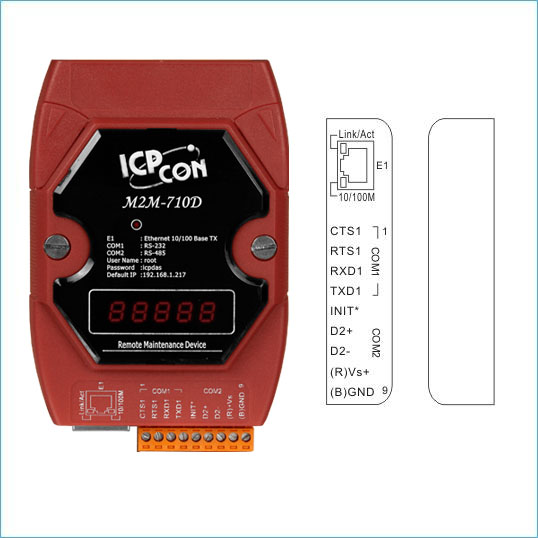

| Communication Interface |
| COM1 |
RS-232(RxD, TxD,RTS,CTS,DTR,DSR,GND); None-isolation |
| COM2 |
RS-485(DATA+, DATA-); None-isolation |
| Ethernet Port |
10/100 Base-TX |
| COM Port Formats |
| Data Bit |
7, 8: for COM1 and COM2 |
| Parity |
None, Even, Odd, Mark, Space |
| Stop Bit |
1: for COM1, COM2 |
| Baud Rate |
115200 bps Max. |
| Mounting |
| Din Rail Mount |
Yes |
| Wall Mount |
Yes |
| LED Display |
| 5-Digit 7 Segment LED Display |
Yes(for D Version) |
| System LED Indicator |
Yes |
| Mechanism |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Dimension ( W x L x H ) |
123 mm x 72 mm x 33 mm |
| Operating Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Power |
| Protection |
Power Reverse Polarity Protection |
| Required Supply Voltage |
10 ~ 30 VDC (non-regulated) |
| Power Consumption |
2.7 W for M2M-710D |
|
