Rack Mount Embedded Controller: 256K Flash, 256K SRAM, 40MHz CPU in 4 Slot Capacity, MiniOS7 Operating System

I-8410

Rack Mount Embedded Controller: 256K Flash, 256K SRAM, 40MHz CPU in 4 Slot Capacity, MiniOS7 Operating System

  Price:  $739.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

i-8000 systemThe I-8410 and I-8810 are embedded serial I/O units using DCON Protocol Firmware.ICPDAS provides various I/O modules, such as analog input/output, digital input/output and counter/frequcncy modules, which can be used in remote data acquisition and control applications for environment monitoring, power management and factory automation, etc

The CPU is a 8-bit 80188 (40MHz). Apart from the original functions (input, output, power on value, safe value, high limit value, low limit value) of the I/O module, the firmware provides additional functions to allow I/O modules in different slots to be combined together. For example, if the channel value of an AI module is above a predefined high limit value, or below a predefined low limit value, the information can be immediately passed to another DO module to trigger alarm or light.

Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. The I/O modules can be easily added to the I-8410/I-8810 and can be quickly integrated into an existing system.

Features

Supports the RS-232 or RS-485 communication interface.
Supports DCON communication protocol
Dual Bus designed to supports I-8K and I-87K series I/O
modules, such as DI/DO, AI/AO, Counter/Frequency
modules
Compact I/O Expansion slot allows the quick installation of
various 8K and 87K I/O modules
feature
I/O configurable using DCON Utility search
Firmware updated via the RS-232 port update

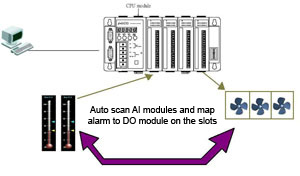

Firmware auto scan AI modules and can map alarm to DO
modules on the slots.
autoscan
Dual Watch Dog mechanism enable I-8000 system can work
reliablely under harsh environment.

Ventilated housing designed to operate between –25°C to
+75°C

vent
Using DIN rail clips or Screw poles around the corners
allows the control unit to be easily mounted on the control
box
Frame Ground provides a path for bypassing ESD, allowing
enhanced static protection (ESD) capability and ensures that
the module is more reliable.


frame
i8000
Various SDKs provided ( free )
DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC
server, etc
idusoft

Specifications

CPU module
CPU 80188 or compatible (8-bit and 40MHz)
SRAM 256KBytes
Flash 256KBytes
EEPROM 2KBytes
NVRAM -
RTC (real time clock) -
Hardware Serial Number -
Built-in Watchdog Timer Yes
Communicate Interface
COM 0
Internal communication with the 87K modules
COM 1 RS-232 (to update firmware)
COM 2
RS-485
COM 3
RS-232/RS-485
COM 4 -
Ethernet Port -
SMMI
5 - Digit LED Display Yes
3 - Programmable LED Indicators Yes
4 - Push Buttons Yes
I/O expansion slots
8410 4 Slots
8810 8 Slots
Dimensions
8410 230mm x 110mm x 75.5mm
8810 354mm x 110mm x 75.5mm
Operating Environment
Operating Temperature –25°C to +75°C
Storage Temperature –30°C to +85°C
Humidity 5 to 95% RH, non-condensing
Power
Protection Power reverse polarity protection
3KV power isolation -
Power requirement 10 ~ 30 V/DC
Power supply 20W
Power consumption I-8410 : 3.9 W
I-8810 : 5.1 W
