USB to Isolated RS-232/422/485 Converter for <strong>Windows 10 / 8 / 8.1 / 7 / Vista / XP & Linux</strong> Operating Systems. Comes with CA-USB18 USB Cable for Easy Connection. Supports Wide Operating Temperatures of -25 ~ 75°C (-13° F ~ 167° F).

I-7561U

USB to Isolated RS-232/422/485 Converter for Windows 10 / 8 / 8.1 / 7 / Vista / XP & Linux Operating Systems. Comes with CA-USB18 USB Cable for Easy Connection. Supports Wide Operating Temperatures of -25 ~ 75°C (-13° F ~ 167° F).

  Price:  $159.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

I-7561U application image with data acquisition modules and InduSoft SCADA software

The I-7561U is an easy-to-use and cost-effective converter for transferring serial data via USB. It can be used to connect serial devices to systems with a USB interface. The I-7561U converter comes with one RS-232/RS-422/RS-485 port that allows compatibility with any serial device protocol. Besides the features of I-7561 USB to serial converter, the I-7561U also supports Windows 8 and Windows 10 operating systems. It also features high-speed 921.6kbps transmission rate, and supports various operating systems ranging from Windows to Linux. A Self-Tuner chip inside auto-tunes the baud rate and data format to the RS-485 networks. It is USB powered, so it doesn't require additional external power adapters. It comes with independent RS232 / RS-422 / RS-485 ports for flexible connections.

  • EASY-TO-USE AND EXCELLENT COMPATILIBITY:
    • Compatible With Any Serial Device Protocol (RS-232, RS-422, and RS-485)
    • Fully Compatible with USB 1.1/2.0/3.0
    • Supports Windows 10 / 8.1 / 8 / 7 / Vista / XP / 2012 / 2000 / 98 / ME / Linux
  • HIGH SPEED:
    • Data Transmission speed up to 921.6 kbps
    • Automatic RS-485 Direction Control
  • SERIAL PROTECTION:
    • 2.5kVDC Isolation Protection on the RS-232/422/485 side
    • ESD Protection for the RS-232/422/485 Data Line
  • SAVES COST AND HUSSLE-FREE: USB-Powered, No External Power Supply Required
  • WIDE RANGE OF OPERATING TEMPERATURES: -25°C ~ +75°C (-13°F ~ 167°F)

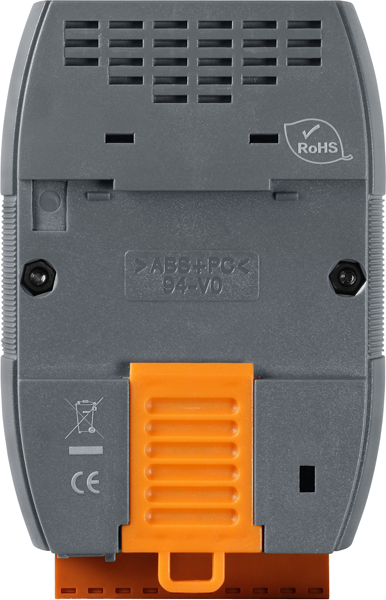

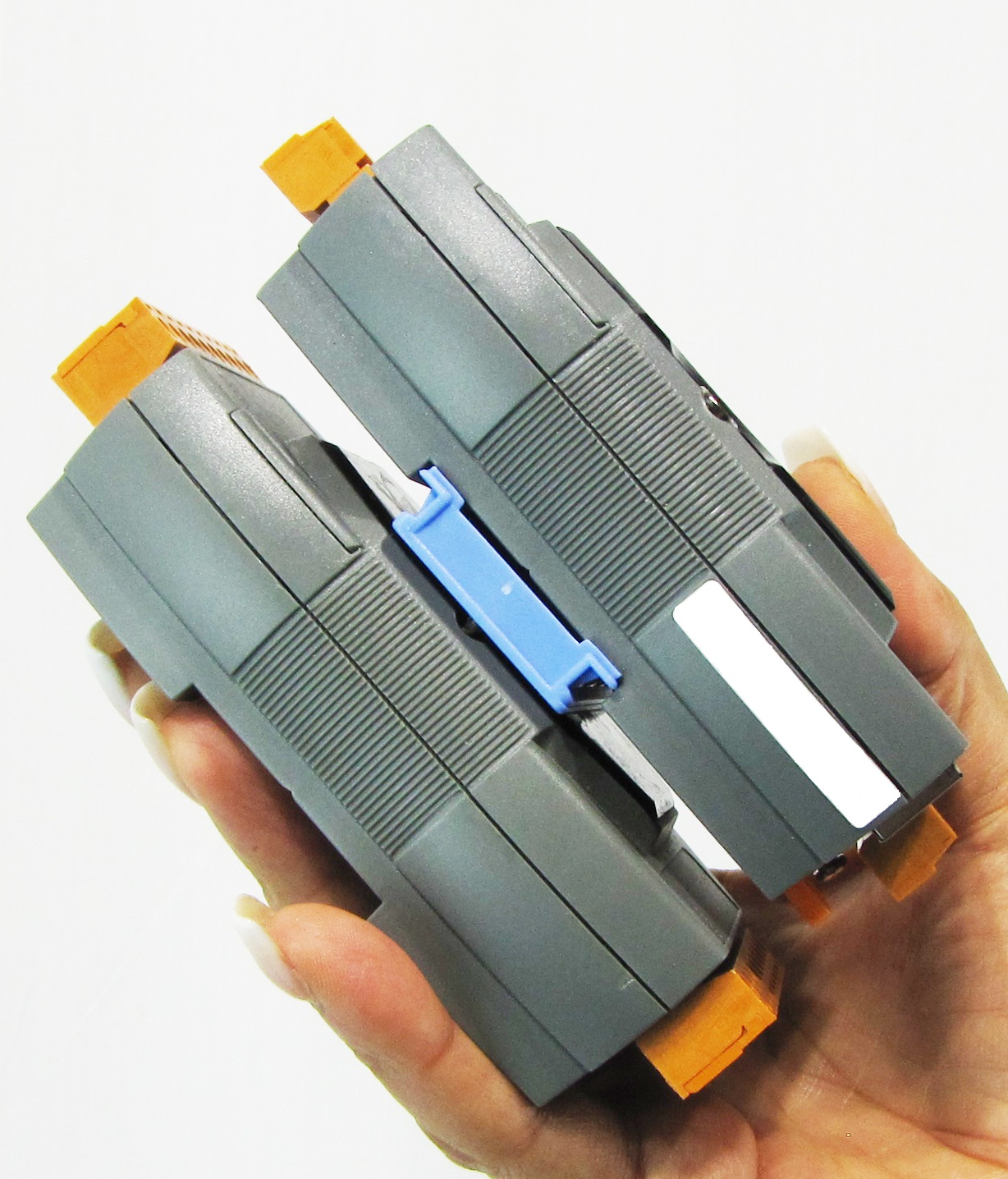

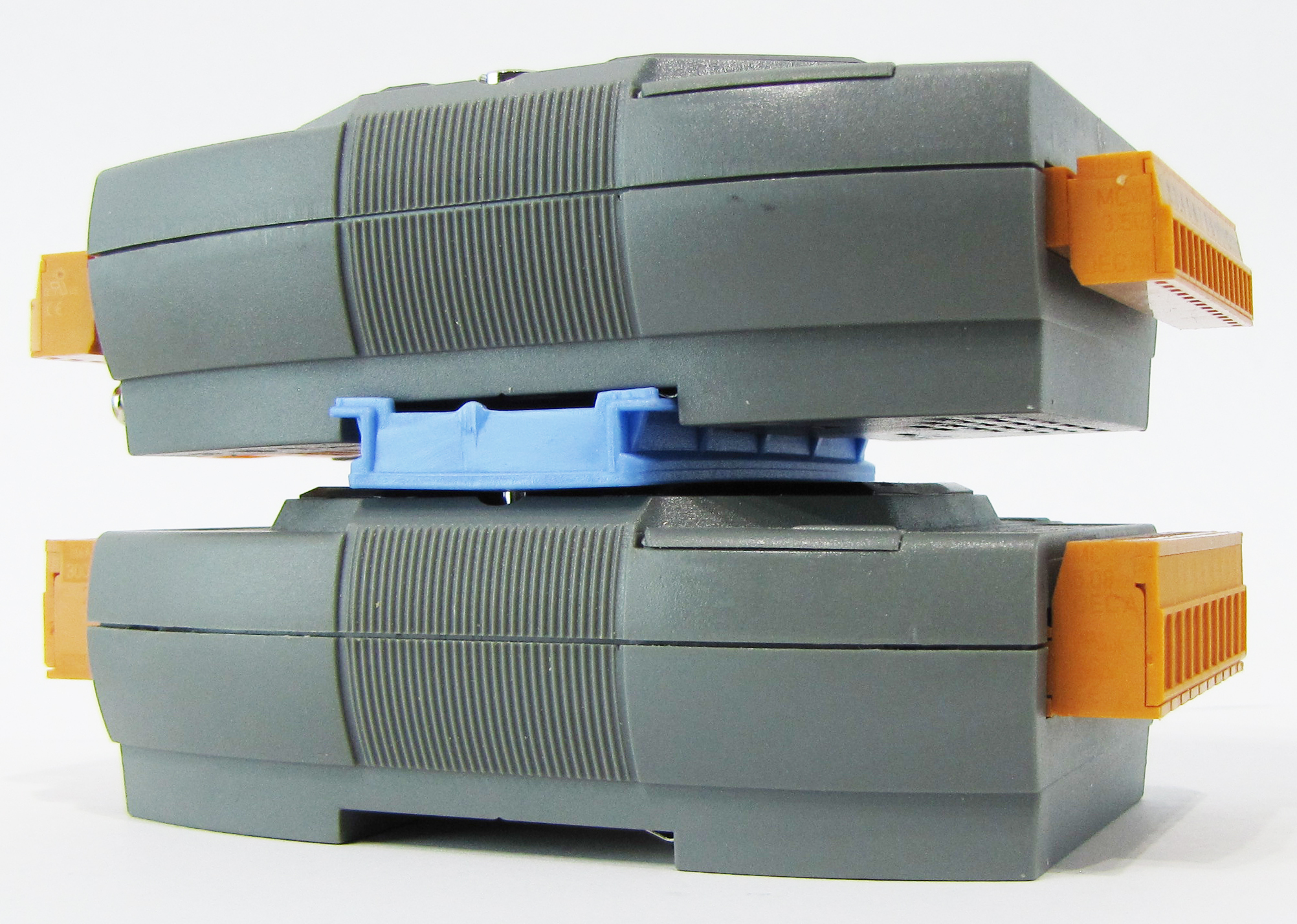

  • EASY TO INSTALL: DIN-Rail Mountable and Fits Easily to Your Existing Systems
  • WARRANTY AND SUPPORT: Free Timely Technical Support and Free 1-year Warranty. 100% Customer Satisfaction Guaranteed.

CA-USB18
Comes with CA-USB18 Cord

Specifications

Interface
USB Compatibility: USB 1.1/2.0/3.0
Drivers Windows 10 / 8.1 (32/64-bit) / 8 (32/64-bit) / 7 (32/64-bit) / Vista (32/64-bit) / XP / 2012 / 2000 / 98 / ME / Linux
Serial Interface RS-232 TxD, RxD, GND The RS-232, RS-422 and RS-485 cannot be used simultaneously
RS-422 TxD+, TxD-, RxD+, RxD
RS-485 Data+, Data-
2-wire cabling/4-wire cabling Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used,
the transmission distance may change
RS-422/485 Transfer Distance Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
(Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance may change)
Maximum Supported RS-485 Devices 256 (Without repeater)
Self-Tuner Asic Inside (RS-485) Yes
Speed 300 ~ 921.6 kbps
Connection RS-232/422/485 Removable 10-Pin Terminal Block
USB Type B
Cable Included CA-USB18 (1.8 m Cable) x 1
LED Indicators
Power Yes
Power
Input Voltage Range +5 VDC From USB
Power consumption 0.5 W
Casing
Mechanical Plastic
Flammability Fire-Retardant Materials (UL94-V0 Level)
Dimensions 72 mm x 115 mm x 35 mm
Installation DIN-Rail
Environment
Operating Temperature -25°C ~ 75 °C (-13°F ~ 167° F)
Storage Temperature -30°C ~ 75 °C (-22°F ~ 167° F)
Ambient Relative Humidity 10% ~ 90% RH, non-condensing

References and Support

Customer Reviews (1)

April 1, 2016
Don R.
5/5

Was looking for an easy to use and compact converter. This is working great. It has the updated driver for windows 10.
