DCON Utility is a tool for searching the network, configuring input and output modules via the serial port, RS-232/485 or Ethernet port using virtual com ports.

DCON Utility

DCON Utility is a tool for searching the network, configuring input and output modules via the serial port, RS-232/485 or Ethernet port using virtual com ports.

See References and Support below for download.


Features

DCON Utility is a tool for searching the network, configuring input and output modules via the serial port, RS-232/485 or Ethernet port using virtual com ports. It supports RS-485 series I-7000 and M-7000 Series, I-87K Modules, PDS-7000 Series and more. Configuring modules is simple and easy.

The DCON Utility is s toolkits kits that help user search the network , easily to Configure the I/O modules and test the I/O status via the serial port (RS-232/485) or ethernet port (using virtual com port). It support not only the DCON Protocol I/O modules but also the M Series I/O Modules ( Modbus RTU M-7K,M-87K and will support Modbus ASCII M-87K) now.

DCON

The main function of DCON Utility are list below :
  • COM Port : Configuration and setting for PC COM Port

    COM Port
  • Search Network : Show modules on data bus

    Search Network
  • Run Monitoring : Utility will monitor network modules' I/O status every running cyde

    Run Monitoring
  • Run Data Logger : Utility use customized parameter to monitor the I/O modules and will make a log file for I/O data.

    Run Data Logger

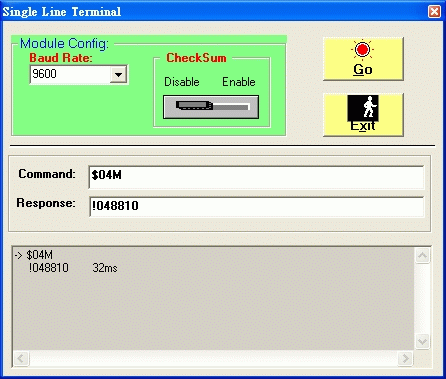

  • Terminal : for some situation users would want to use command to test module's function diretly.

    Terminal
DCON Labview

Windows 7 / Vista

DCON Labview

DCON_Labview

  • Bundled driver for Labview
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • OS supported: Windows 98/NT/2000/XP
DCON Indusoft

DCON_Indusoft

  • Bundled driver for Indusoft
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • OS supported: Windows 98/NT/2000/XP/CE
DCON DLL

DCON_DLL

  • DLL library
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • Demo supported:
    VB/VC/BCB/Delphi (Source code included)
  • OS supported:Windows 98/NT/2000/XP
DCON ActiveX

DCON_ActiveX

  • ActiveX (OCX) component
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • Demo supported:
    VB/VC/BCB/Delphi (Source code included)
  • OS supported: Windows 98/NT/2000/XP
DCON Linux

DCON_Linux

  • Libraries for Linux platform
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • OS supported: Linux
DCON DDE

DCON_DDE

  • DDE server
  • Module supported:
    I-7000/8000/87K series (with DCON protocol)
  • OS supported: Windows 98/NT/2000/XP
NAPOPC Server

NAPOPC Server

  • OPC server
  • Module/Controller supported:
    I-7000/8000/87K series (with DCON protocol)
  • Modbus embedded controller
  • ISaGRAF embedded controller
  • OS supported: Windows 98/NT/2000/XP


Specifications

No information available.
